3.2.9 Setpoint Deviation Menu

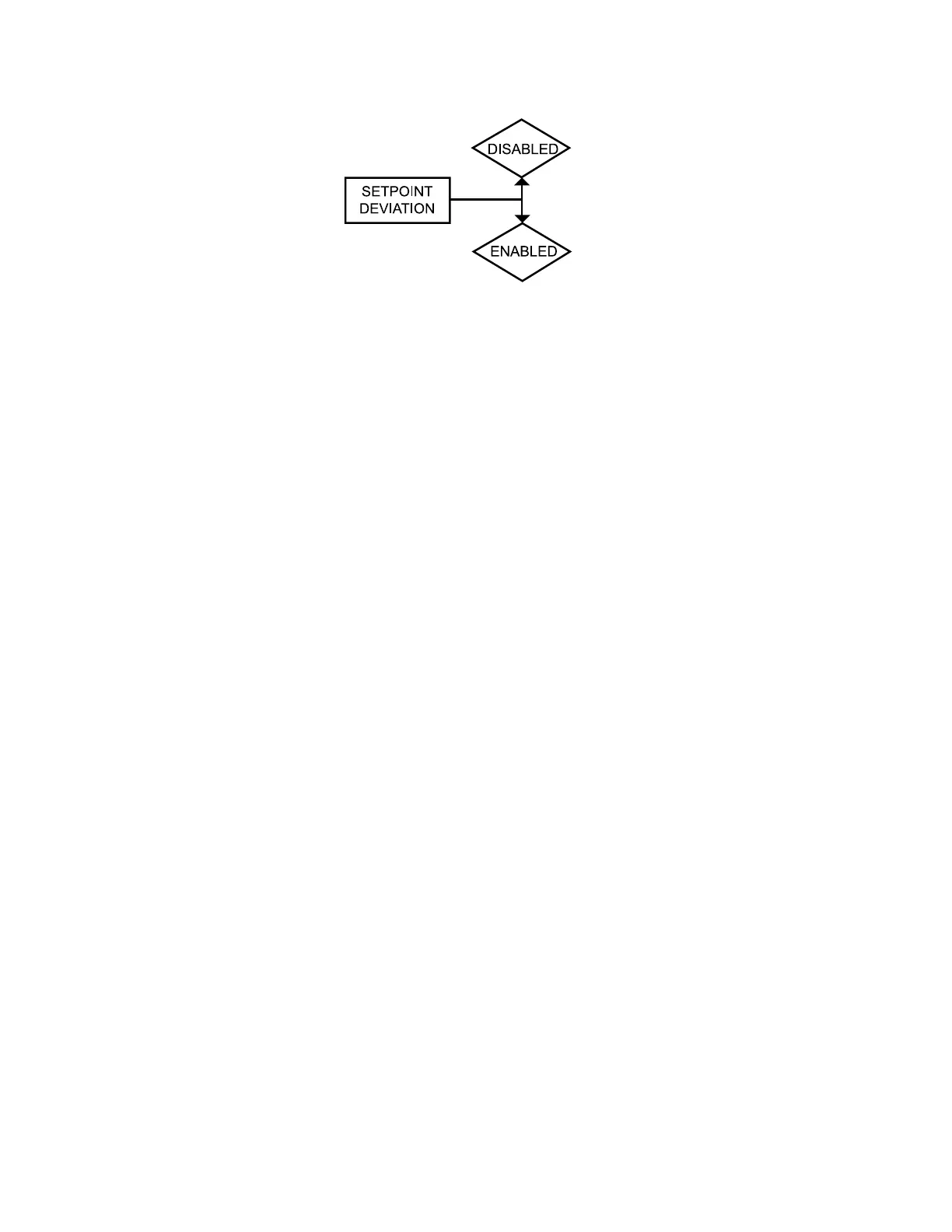

Figure 3.7 Flow Chart for Setpoint Deviation Menu
ENTER SETPOINT DEVIATION MENU:
Press
a
1) Press
a
, if necessary, until
CNFG
prompt appears.
Press
d
2) Display advances to
INPT
Input Menu.
Press
a
3) Press
a
, if necessary, until Display advances to
SP.DV
Setpoint Deviation Submenu.
SETPOINT DEVIATION ENABLE/DISABLE SUBMENU:
Press
d
13) Display advances to Setpoint Deviation
ENBL
Enable or
DSBL
Disable Submenu and flashes the previous selection.
Press
b
14) Scroll through the available selections:
ENBL
or
DSBL
.
Press
d
15) Display shows
STRD
stored message momentarily and then
advances to
OUT1
Output 1 Menu.
Set Point Deviation Submenu, if “enabled”, allows changes to Setpoint 1 to be
made automatically to Setpoint 2. This mode is very helpful if the Process Value
changes often. In Set Point Deviation Mode, set SP2 a certain number of counts
away from SP1 - this relation remains fixed when SP1 is changed. For instance:
Setting SP1=200 and SP2=20 and enabling
SP.DV
means that the absolute
value of SP2=220. Moving SP1 to 300, the absolute value of SP2 becomes 320.
