PART 2
SETUP
2.1 Front Panel

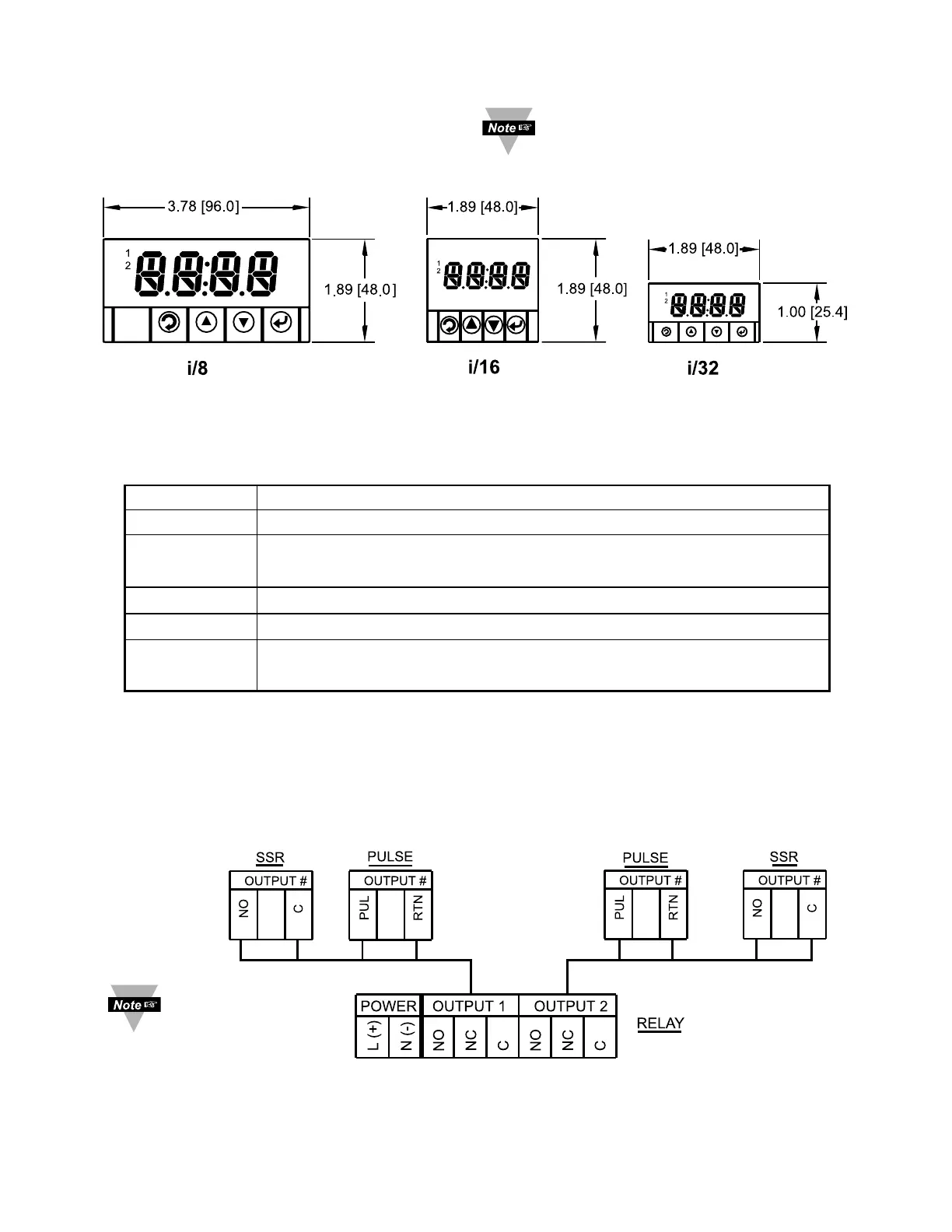

Figure 2.1 Front Panel Display
Table 2.1 Front Panel Annunciators
1 Setpoint 1/ Alarm 1 indicator
2 Setpoint 2/ Alarm 2 indicator
a
/MENU Changes display to Configuration Mode and advances
through menu items*
b
/PK/GRS Used in Program Mode and Peak or Gross Recall*
c
/TARE Used in Program Mode and to tare your reading*
d
/ENTER Accesses submenus in Configuration Mode and stores
selected values*
* See Part 3 Operation: Configuration Mode
2.2 Rear Panel Connections
The rear panel connections are shown in Figures 2.2 and 2.3.
Figure 2.2 Rear Panel Power Connections
8 7 6 5 4 3 2 1
3 2 1 3 2 16 5 4 6 5 4
MENU
PK/GRS
TARE
ENTER
MENU
PK/GRS
TAR E
ENTER
MENU
PK/GRS
TAR E
ENTER
5
Output 1 and 2 are
for -AL Limit Alarm
Option only.
Refer to the Quick Start Guide
for assembly and disassembly
instructions.
