Omega CSi32 User Manual

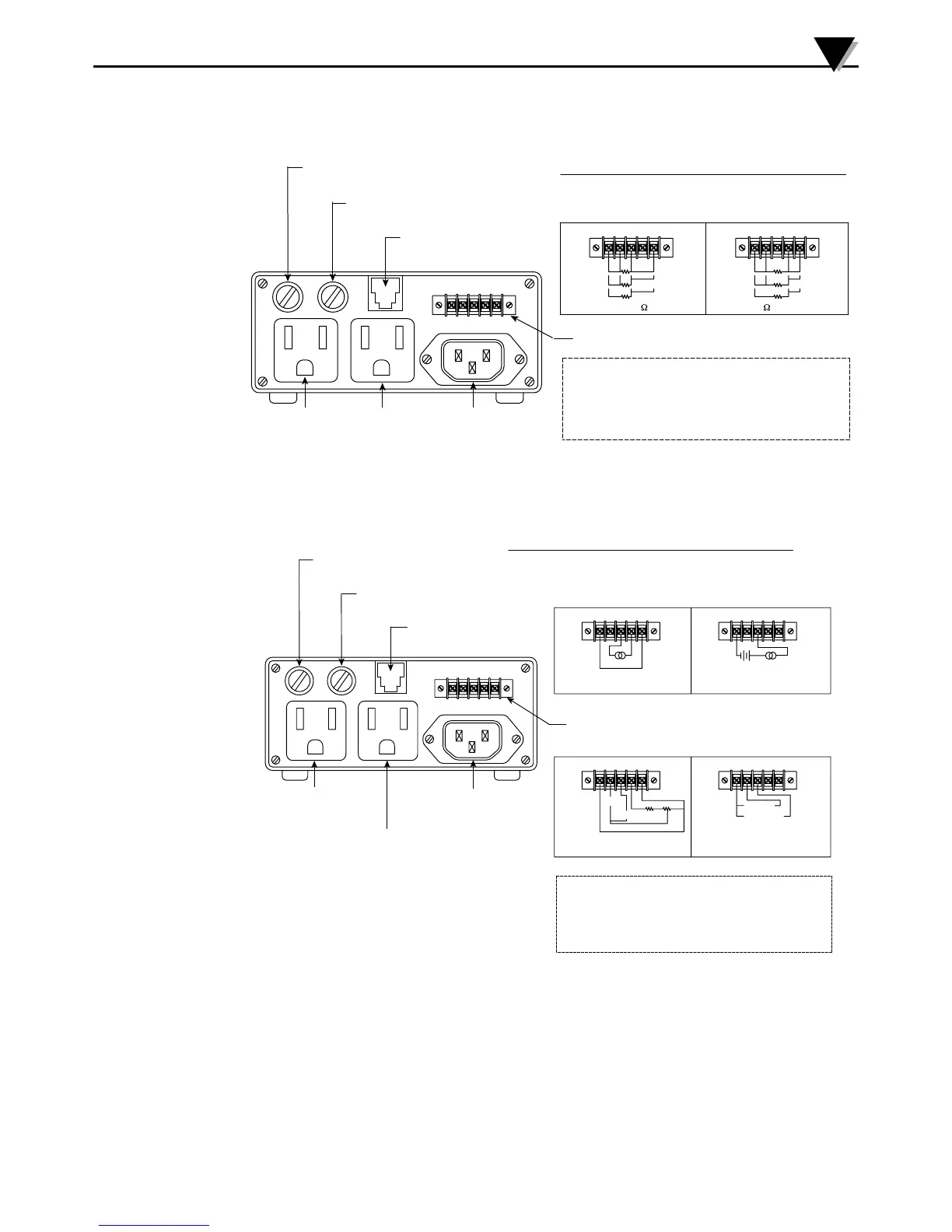

3.3 Rear Panel (RTD, MV, MA Models)
Figure 3c. Rear Panel (RTD Models)
Figure 3d. Rear Panel (MV and MA Models)
Operation
3
5
OUTPUT 1 (FUSE: F2)
F5A (250V)
5mm DIA. X 20mm LONG
OUTPUT 2 (FUSE: F3)
F5A (250V)
5mm DIA. X 20mm LONG
RS232/485 OPTION PORT
RJ12 JACK
(MODELS -C2 OR -C4 ONLY)
5 POSITION TERMINAL STRIP, ALL RTD, MV OR MA MODELS
CONTROLLER INPUT TYPE IS FACTORY SET AND
CALIBRATED TO THE MODEL NUMBER YOU HAVE ORDERED.
CAUTION:
DO NOT CHANGE THE CONTROLLERS INPUT
TYPE PROGRAMMING.
INCORRECT READINGS AND/OR CONTROL WILL RESULT.
AC MAINS RECEPTACLE
108-120 VAC (50/60 Hz)
POWER CORD PROVIDED
OUTPUT 2
5 AMP, 120V MAX.
600 WATTS
OUTPUT 1
5 AMP, 120V MAX.
600 WATTS
BENCH TOP CONTROLLER REAR PANEL VIEW
MODELS: CSi32RTD
MODELS: CSi32RTD-C24
RTD (1000/500 )
INPUT CONNECTOR WIRING
1 2345
12345
4-WIRE
3-WIRE
2-WIRE
RTD (100 )
12345
4-WIRE
3-WIRE
2-WIRE
OUTPUT 1 (FUSE: F2)
F5A (250V)
5mm DIA. X 20mm LONG
OUTPUT 2 (FUSE: F3)
F5A (250V)
5mm DIA. X 20mm LONG
RS232/485 OPTION PORT
RJ12 JACK
(MODELS -C2 OR -C4 ONLY )
5 POSITION TERMINAL STRIP, ALL RTD, MV OR MA MODELS
CALIBRATED TO THE MODEL NUMBER YOU HAVE ORDERED.
CONTROLLER INPUT TYPE IS FACTORY SET AND
CAUTION:
TYPE PROGRAMMING.
DO NOT CHANGE THE CONTROLLERS INPUT
INCORRECT READINGS AND/OR CONTROL WILL RESULT.
AC MAINS RECEPTACLE
108-120 VAC (50/60 Hz)
POWER CORD PROVIDED
OUTPUT 2
5 AMP, 120V MAX.
600 WATTS
OUTPUT 1
5 AMP, 120V MAX.
600 WATTS
BENCH TOP CONTROLLER REAR PANEL VIEW
MODELS: CSi32MV
CSi32MA
CSi32MA-C24
MODELS: CSi32MV- C24
12345
INPUT CONNECTOR WIRING
12345
12345
100mV
1V or 10V
INPUT CONNECTOR WIRING
1234512345
+
-
+
-
+
-
100mV
1V OR 10V
RL
PROCESS CURRENT INPUT (4-20mA)
INTERNAL EXCITAT ION
PROCESS CURRENT INPUT (4-20mA)
EXTERNAL EXCITATION
PROCESS VOLTAGE INPUT
WITHOUT SENSOR EXCITATION
PROCESS VOLTAGE INPUT
WITH SENSOR EXCITAT ION
JUMPER
