Section 3 - Mounting Instructions
Select a location for the monitor that is free from excessive shock, vibration, dirt,
moisture and oil. Mount the monitor into a 3 5/8” (92mm) square cutout. The
monitor as shipped is 1/4 DIN (92mm square), so it does not have to be removed
from its housing to be mounted. Remove the two screws that secure the mounting
slides. Remove the slides and insert the case into the cutout from the front side of
the panel. Reinstall the two slides and two screws. The length of the slides must be
reduced if the monitor is to be mounted in an extra thick panel.
Ensure that the unit is properly grounded to the panel which should be earth
grounded. Use the supplementary ground point indicated on the rear panel if a
good ground connection cannot be maintained from the mounting slides alone.
Mounting Instructions
3
Panel
Bezel
Cas e Slide Sc rew
SideView
User
Accessible
BehindPanel
PanelCutout
92mm
92mm

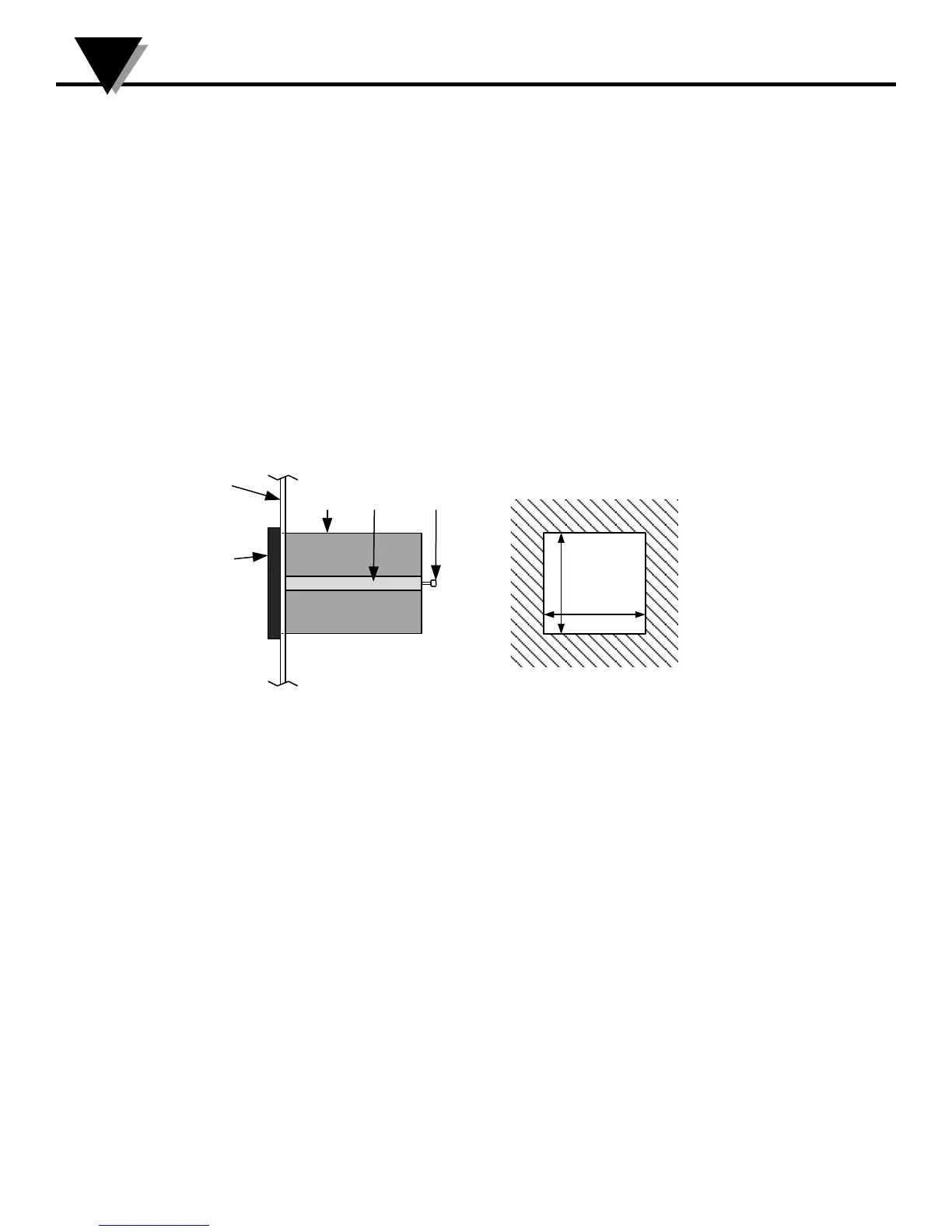

Figure 1 - Side and Panel Cutout Views
3
