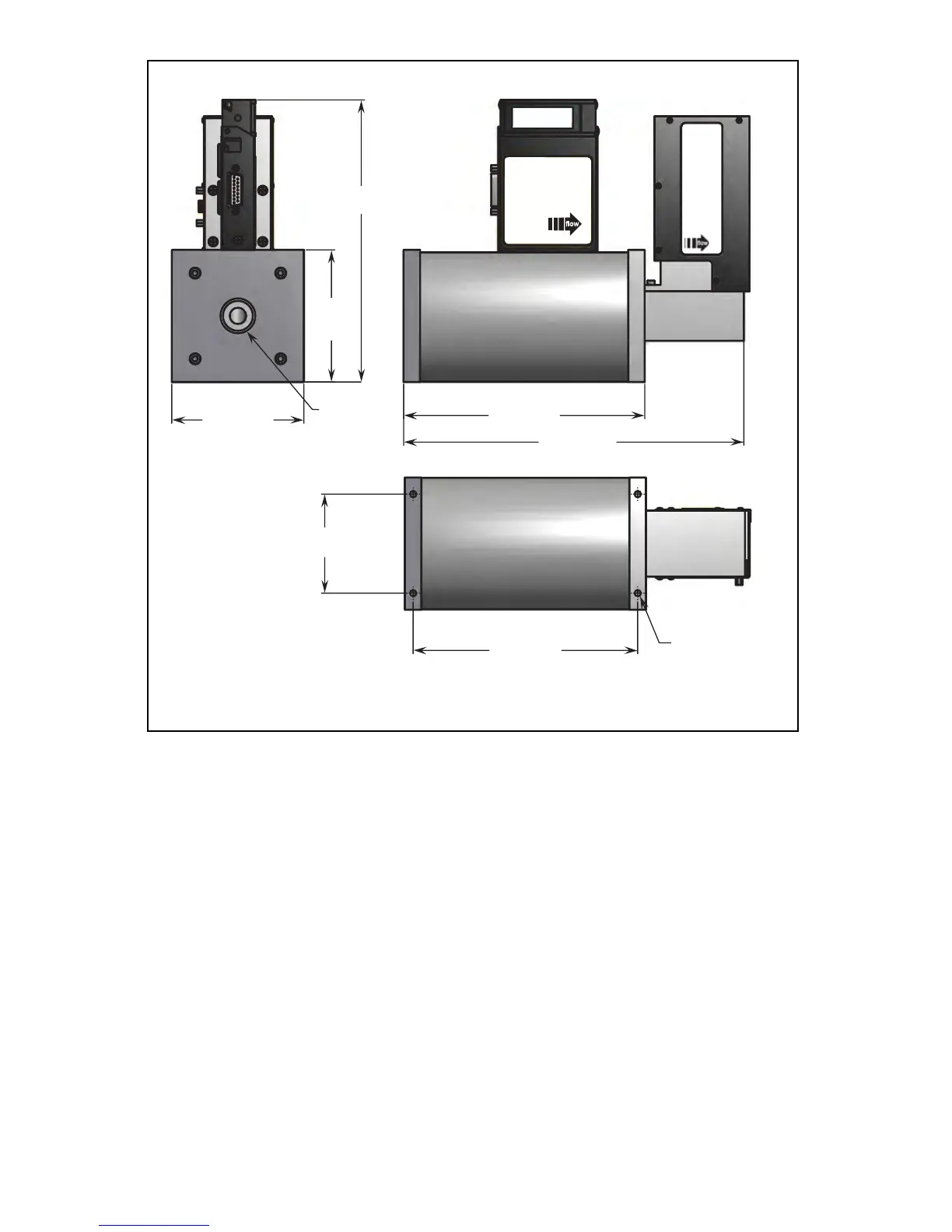

Omega FMA 5400A - Page 50

45
8.66
(219.9 mm)
4.00
(101,6 mm)
4.00 (101,6 mm)
3/4-14 NPT
(both sides)
10.28 (261,1 mm)
7.30 (185,4 mm)
3.00
(76,2 mm)
6.80 (172,7 mm)
1/4-20 UNC-2B
control
valve
CE
50.00
SERIES MAX FLOW 1000 L/min MASS FLOW CONTROLLER
NOTE: OMEGA reserves the right to change designs and dimensions at its sole discretion at any time
without notice. For certified dimensions please contact OMEGA.
