Configuration (continued) Step Three

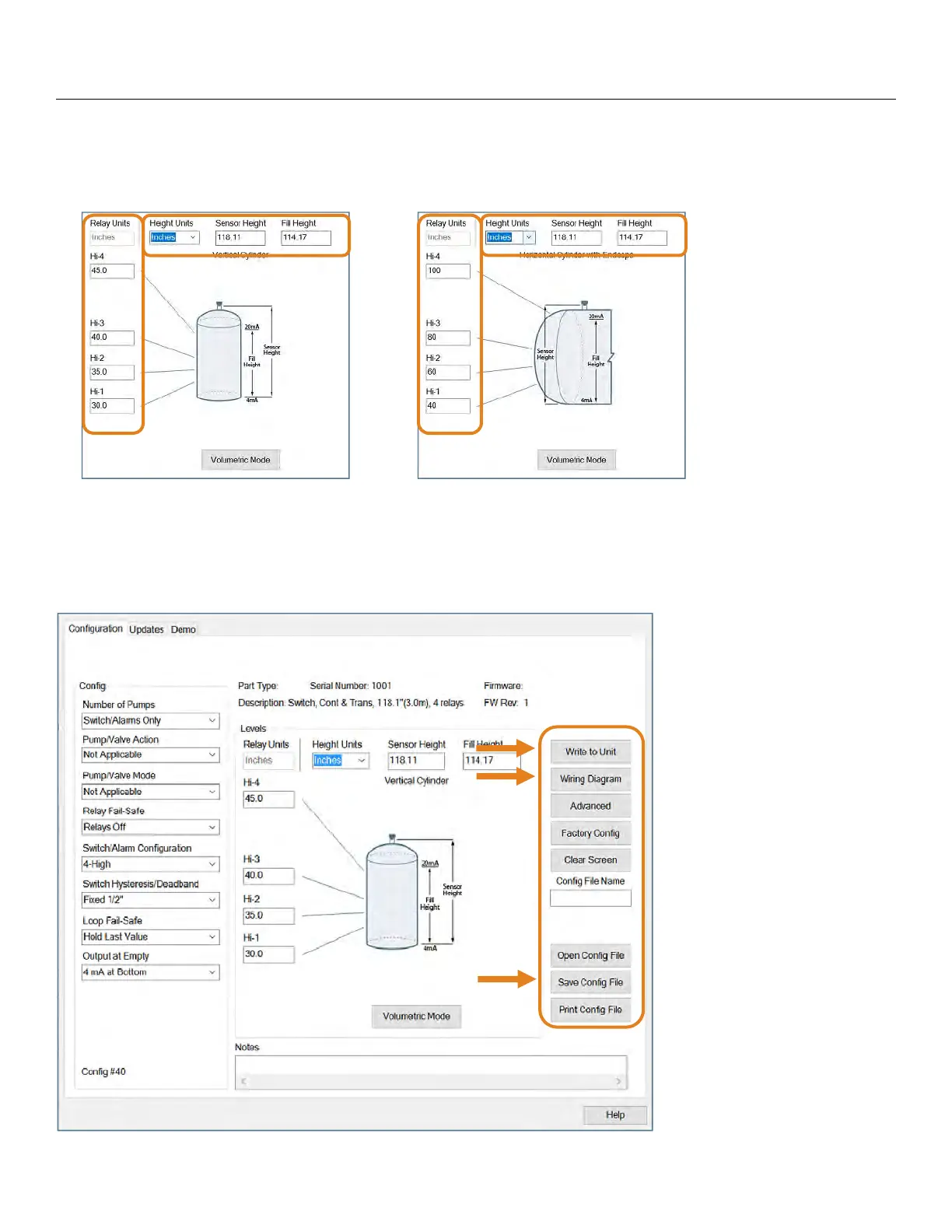

STEP 5 – TANK LEVEL CONFIRMATION:
Verify the Height Units, Sensor Height, Fill-Height, Relay Units & Relay Settings. All values were calculated
and set in the previous Dimensional Entry window. Make any adjustments if required.
STEP 6 – WRITE TO UNIT:
This LVCN414-SW operation uploads configuration into the sensor. Other features in the section include
providing a custom wiring diagram specific to the signal output and saving the configuration file to your hard
drive.
