LVCN414-SW Appendix (continued) Section Six

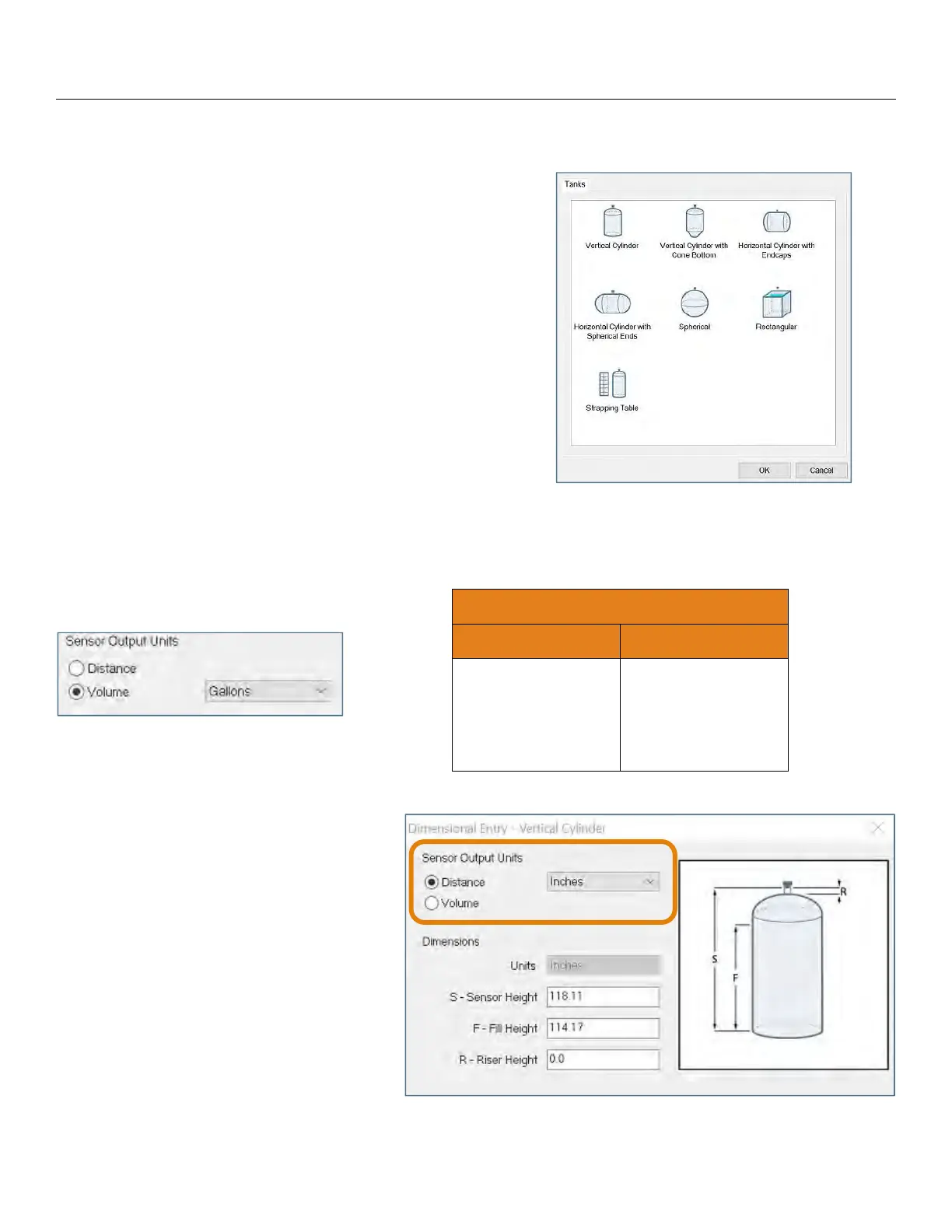

Shape Selection Window: This window will shows the different tank shape options available in LVCN414-
SW.
Vertical Cylinder
Vertical Cylinder with Cone Bottom
Horizontal Cylinder with End caps
Horizontal Cylinder with Spherical Ends
Spherical
Rectangular
Strapping Table – Use this feature for manual entry
of measured tank distances and volumes.
Select any of the above tank shapes and press OK to
confirm.
A. Dimensional Entry – Vertical Cylinder Example: Choose the Sensor Output Units as Distance or
Volume. After choosing the Sensor Output Units, select the units of measurement in the pull down to
the left.
Units of Measurement
Distance Volume
Inches
Cm
Feet
Meters
Gallons
Liters
Distance – Sensor Output Units (Vertical Cylinder Example):
Enter the dimensions of the tank. You must
enter data in all fields shown.
Sensor Height: Distance from the bottom
of the tank to the top of the threads.
Fill Height: Distance from the bottom of
the tank to the operational full level of liquid
(20mA). This setting defines the location of
full current output and is the top of the
sensor’s measurement range.
Riser Height: Distance the sensor is
above the top of the tank (including all
fittings). Measured from the bottom of the
sensor.
