Omega OS550A User Manual

1-3
General Description
1
General Description
1.2.1 Display Details

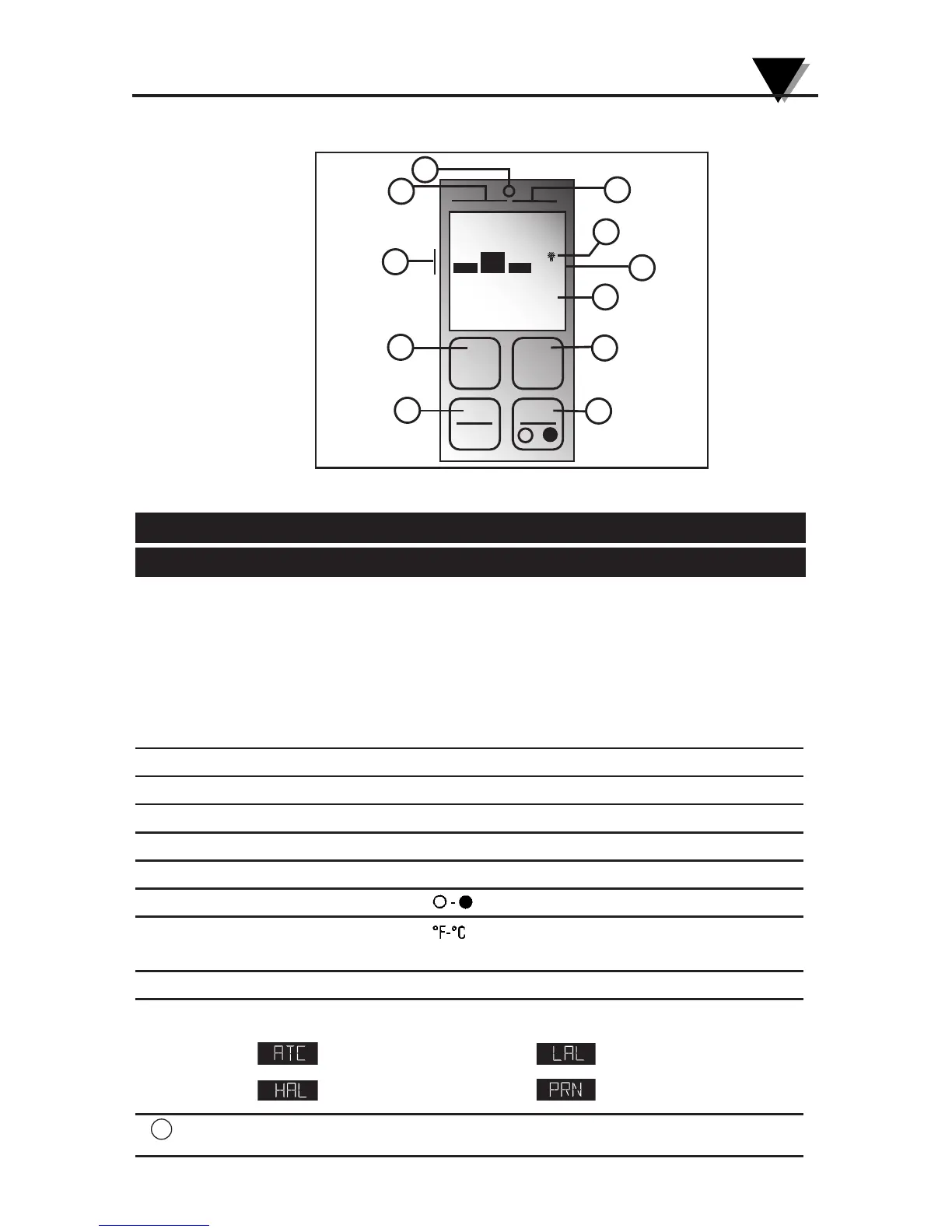

Figure 1-1. Display and Keypad View
Table 1-2. Display Details
Key Description
➀
Display Mode displays one of the following:
E (Emissivity) HAL (High Alarm Setpoint)
MAX (Maximum Temperature) LAL (Low Alarm Setpoint - OS552A thru OS555A)
MIN (Minimum Temperature) AMB (Ambient Target Temp - OS552A thru OS555A)
dIF (Differential Temperature) PRN (Print Data - OS552A, thru OS555A)
AVG (Average Temperature) MEM (Store Temperature Data - OS553A thru OS555A)
LOG (Log Temp Data- OS553A thru OS555A)
➁
Data associated with one of the Display Modes
➂
Backlighting Icon - allows the display to be viewed under low ambient light
➃
Displays the units of measure in either °F or °C
➄
Main display - displays the current temperature
➅
Enables or Disables alarms or LOG. Resets MAX, MIN, DIF,AVG, temperatures
➆
▲ for incrementing data; is for turning on/off the backlighting
➇
▼ for decrementing data; is for changing the units of measure from
°F to °C or vice versa
➈
Function key for scrolling through the display modes
➉
Display Icons
Ambient Target Temperature Low Alarm
High Alarm Data Transmisson thru RS232
High or Low Alarm condition LED
MAX750
658
AT C
HAL
LAL
PRN
°F °C
SET
FUNC
F-C
▼
▼
-
2
1
10
11
9
8
3
4
5
6
7
11
