General Description
1
1-4
General Description
1
1.2.2 Parts of the Thermometer/Transmitter

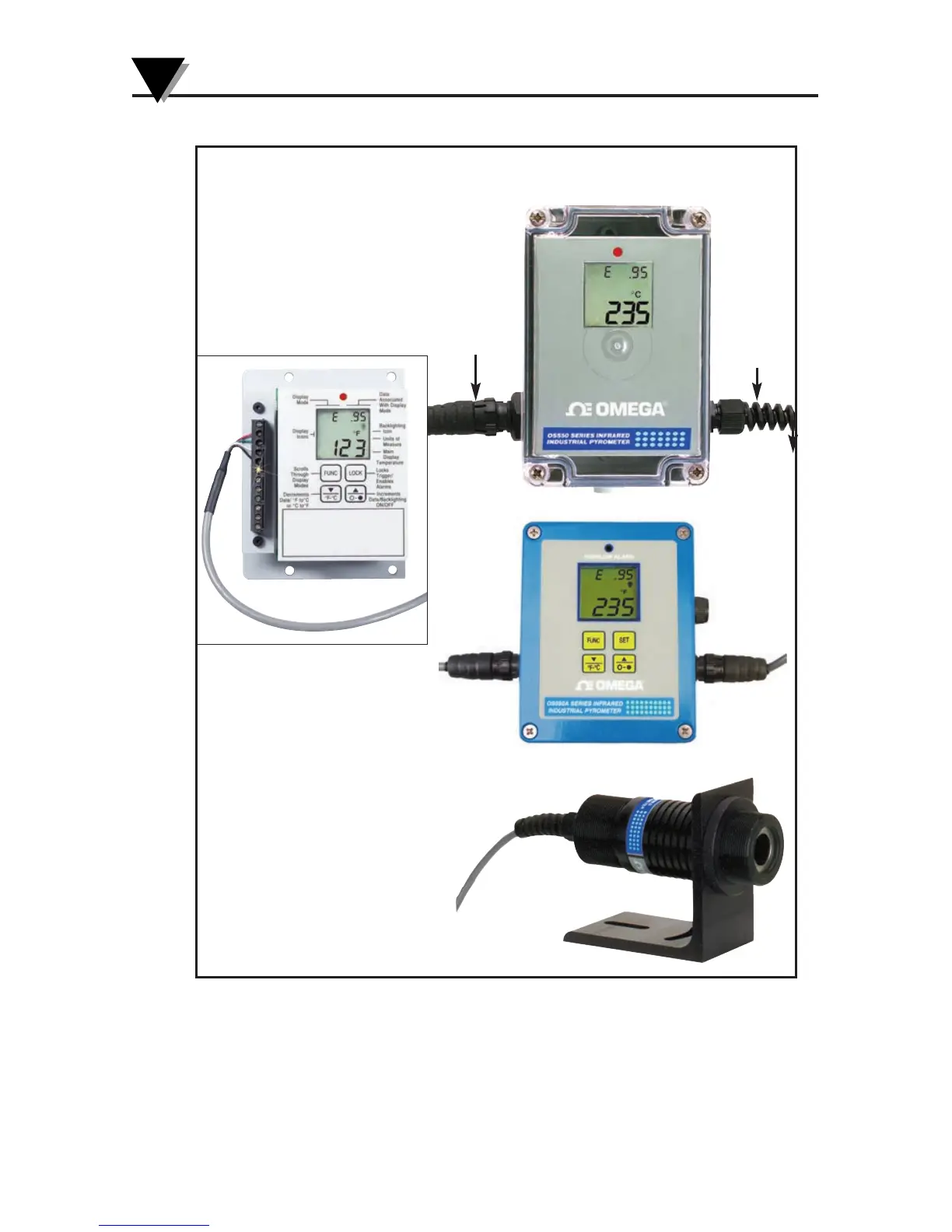

Figure 1-2.
OS550A/ OS550AM/ OS550A-BB Series Industrial Infrared Thermometer Front
View
The display is shown in more detail in Figure 1-1 and described in Table 1-2.
Note: There are no user-serviceable parts in the thermometer.
Shown with optional mounting bracket,
OS550-MB and mounting nut OS550-MN
Sensor Head
NEMA4 Plastic Housing, Keypad, Display
and Output Electronics (OS550A Series)
Sensor
Cable with
Quick
Disconnect
Power/
Output
Cable with
Quick
Disconnect
OEM Style
Keypad, Display,
and Electronics
(OS550A-BB Series)
NEMA4
Aluminum
Housing,
(OS550AM
Series)
To Next Page
