Omega OS550A - Mounting Flange Dimensions (OS550-MF)

2-7

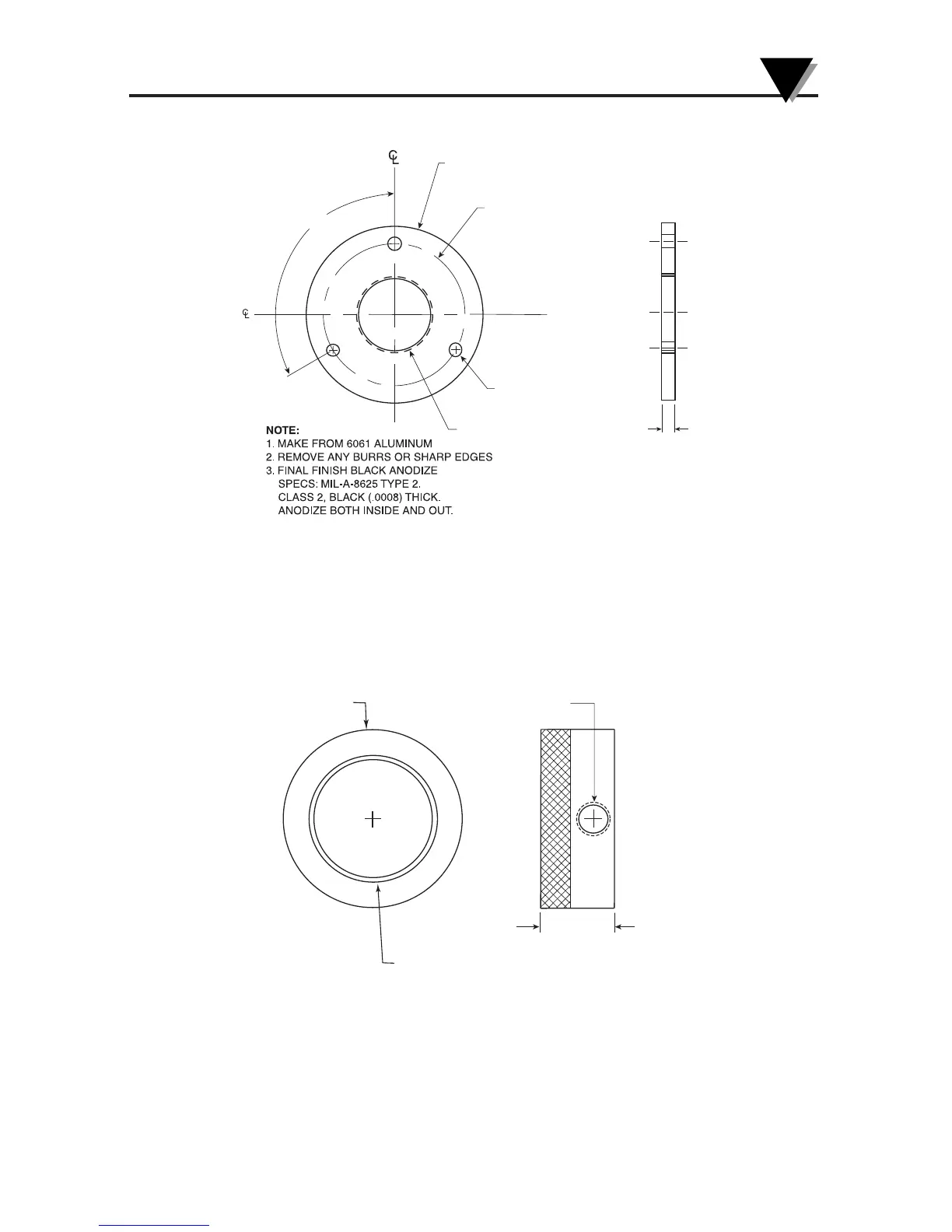

2.6 Mounting Flange Dimensions (OS550-MF)
2.7 Air Purge Collar Dimensions (OS550-AP)
6.35
(.250)
38 (1.5) - 20 THREAD
6.35 (.250)
THRU TYP. (3 PLACES)
3 HOLES ON Ø 71.1 (2.80)
BOLT CIRCLE
TYP. 3 PLACES
0.120
Ø 89 (3.5)
DIMENSIONS: mm (in)
21.59
(0.850)
1/8 N.P.T. TAP THRU
51 (2.0) DIA.
38 (1.5) – 20 THREAD
DIMENSIONS: mm (in)
Fig. 2-6 Mounting Flange Dimensions
Fig. 2-7 Air Purge Collar Dimensions
Installing the Infrared Thermometer
2
