Omega OS550A - Sensor Head Dimensions

Installing the Infrared Thermometer
2
2-2
2.2 Sensor Head Dimensions

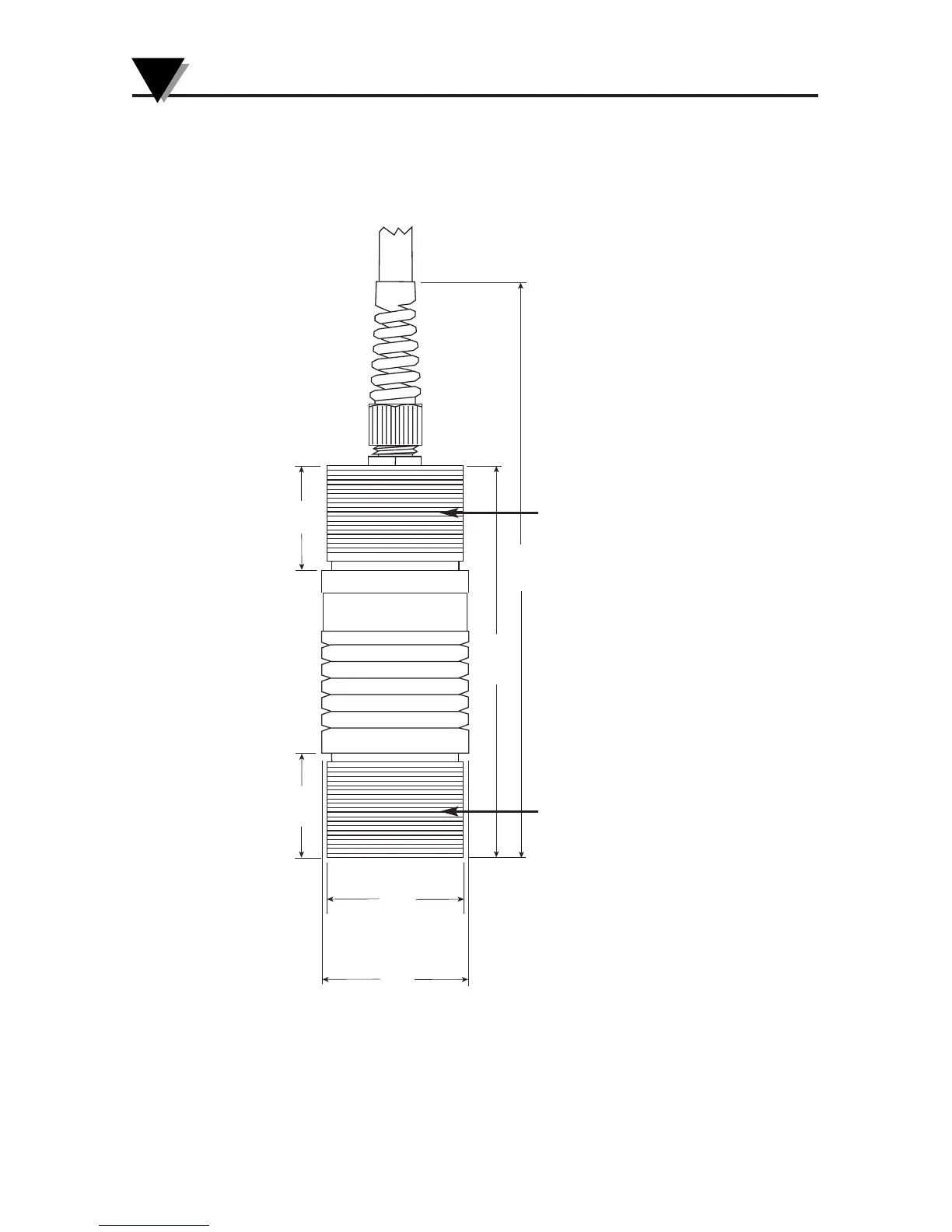

Fig. 2-1. Sensor Head Dimensions
29.2
(1.15)
29.2
(1.15)
41.1
(1.62) DIA.
DIMENSIONS: mm (in)
38.1
(1.50) DIA.
109.2
(4.30)
160.3
(6.31)
1
1
⁄
2
x 20 THREAD
1
1
⁄
2
x 20 THREAD
