2-5
2.4 OS550A Display Electronics Dimensions

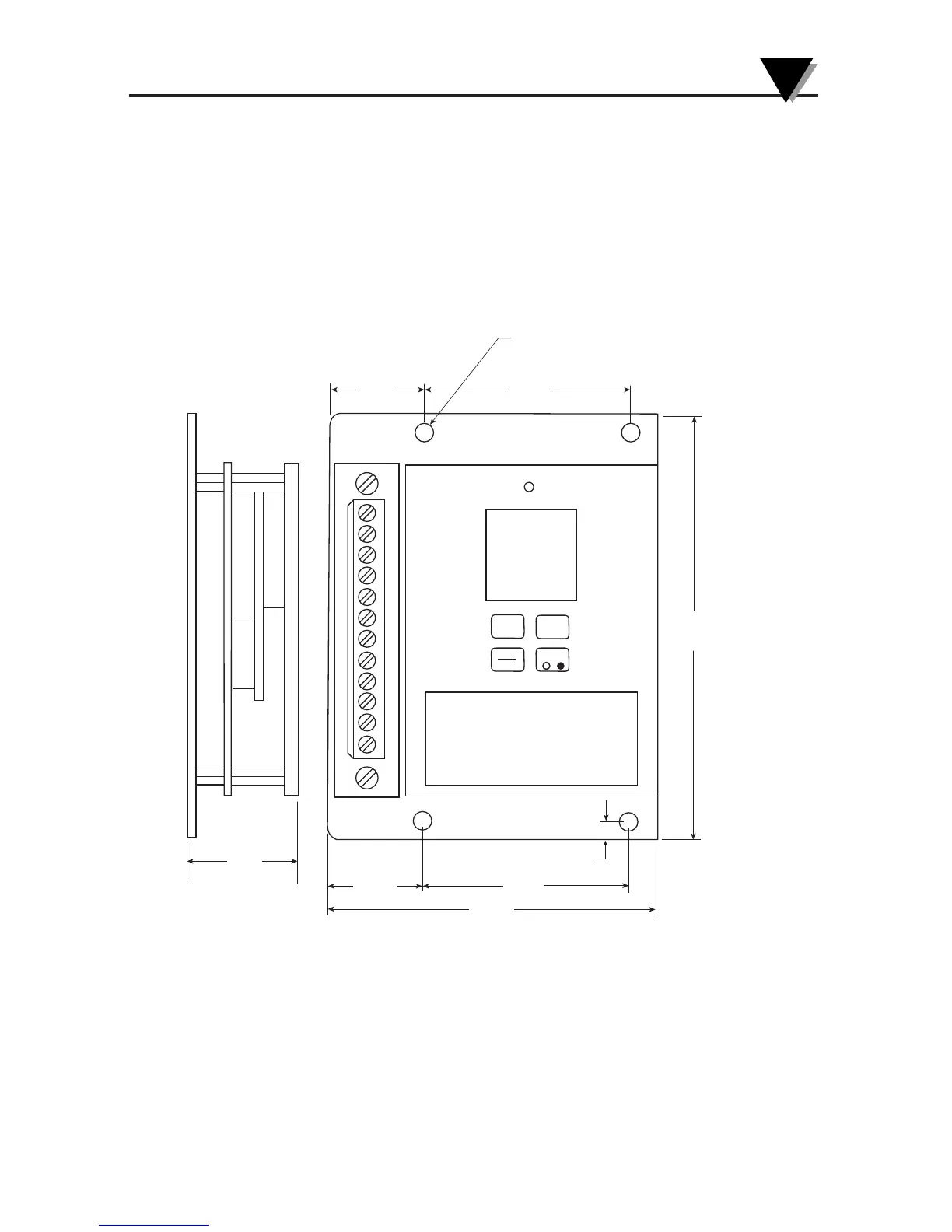

Fig. 2-3. OEM Style Main Display with Mounting Plate
SET
FUNC
F-C
▼
▼
-
26.4
(1.04)
31.0
(1.22)
57.4
(2.26)
Ø 5.16 (0.203) THRU TYP. (4 PLACES)
WILL FIT UP TO A
#10 SCREW OR BOLT
118.4
(4.66)
26.4
(1.04)
57.4
(2.26)
5.1
(.20) TYP.
91.4
(3.60)
DIMENSIONS: mm (in)
Installing the Infrared Thermometer
2
