32
Ampl. out
This interface serves for the connection of additional CMA 56, CMA 156 or
CMS 156. The signals from "Ampl. in" for the CMA 56 are looped through to
"Ampl. out" (electrically connected). Use the cable provided for connection to
this socket.

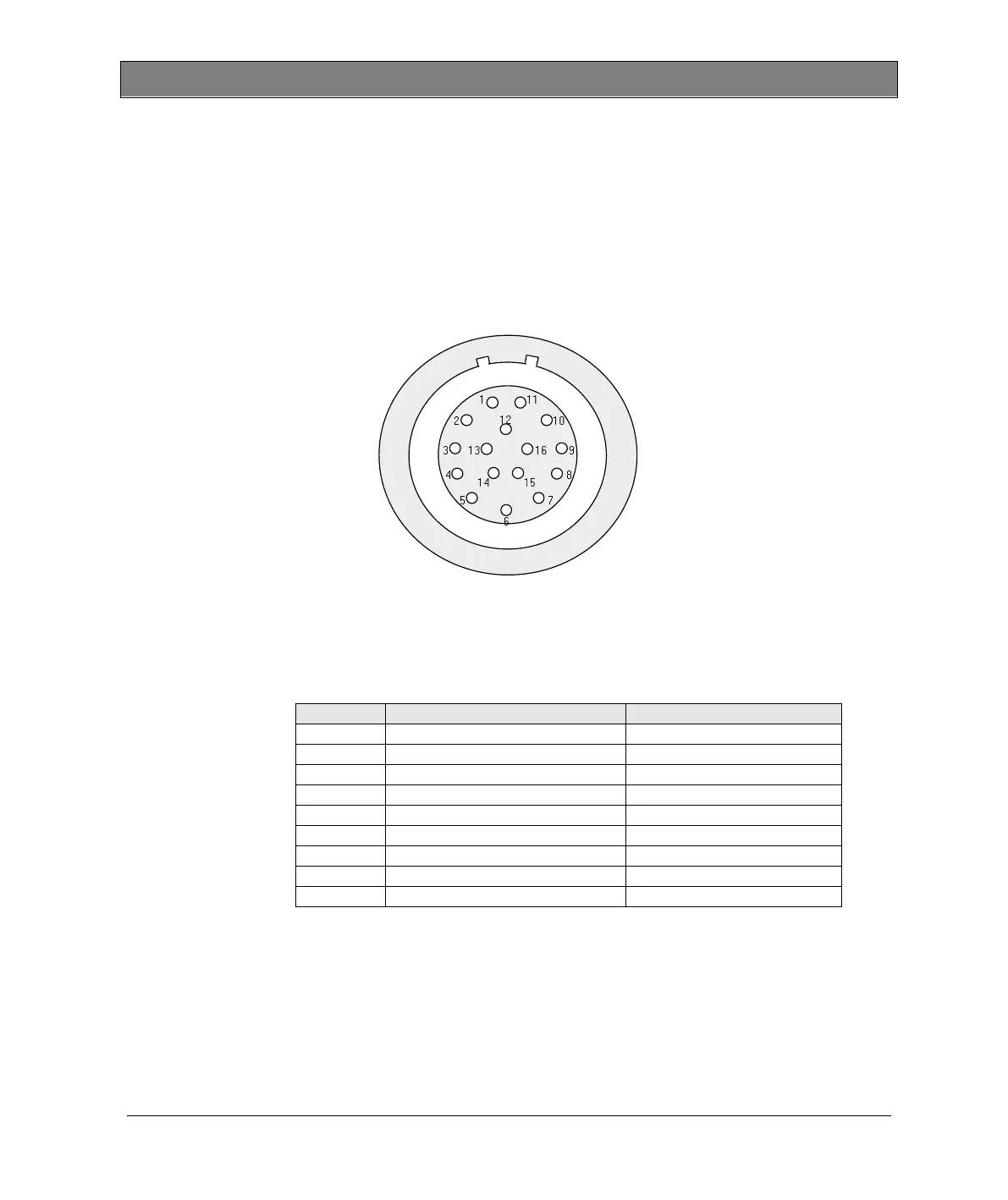

Figure 9 Plug for interface "Ampl. out"
(lower, 16-pole Lemo socket)
(cable connection view)
Signal from CMC test device
L1 rotary system II (output)
L2 rotary system II (output)
L3 rotary system II (output)
L1 rotary system I (output)
L2 rotary system I (output)
L3 rotary system I (output)
shield connection (ground)
shield connection (ground)
Table 3 Assignment
