LVS-7500 External System Operations Manual
LVS-7500 External System Operations Manual Page 14 of 129
3. Place the white portion on the calibration card in the field of view. The entire image should appear white.

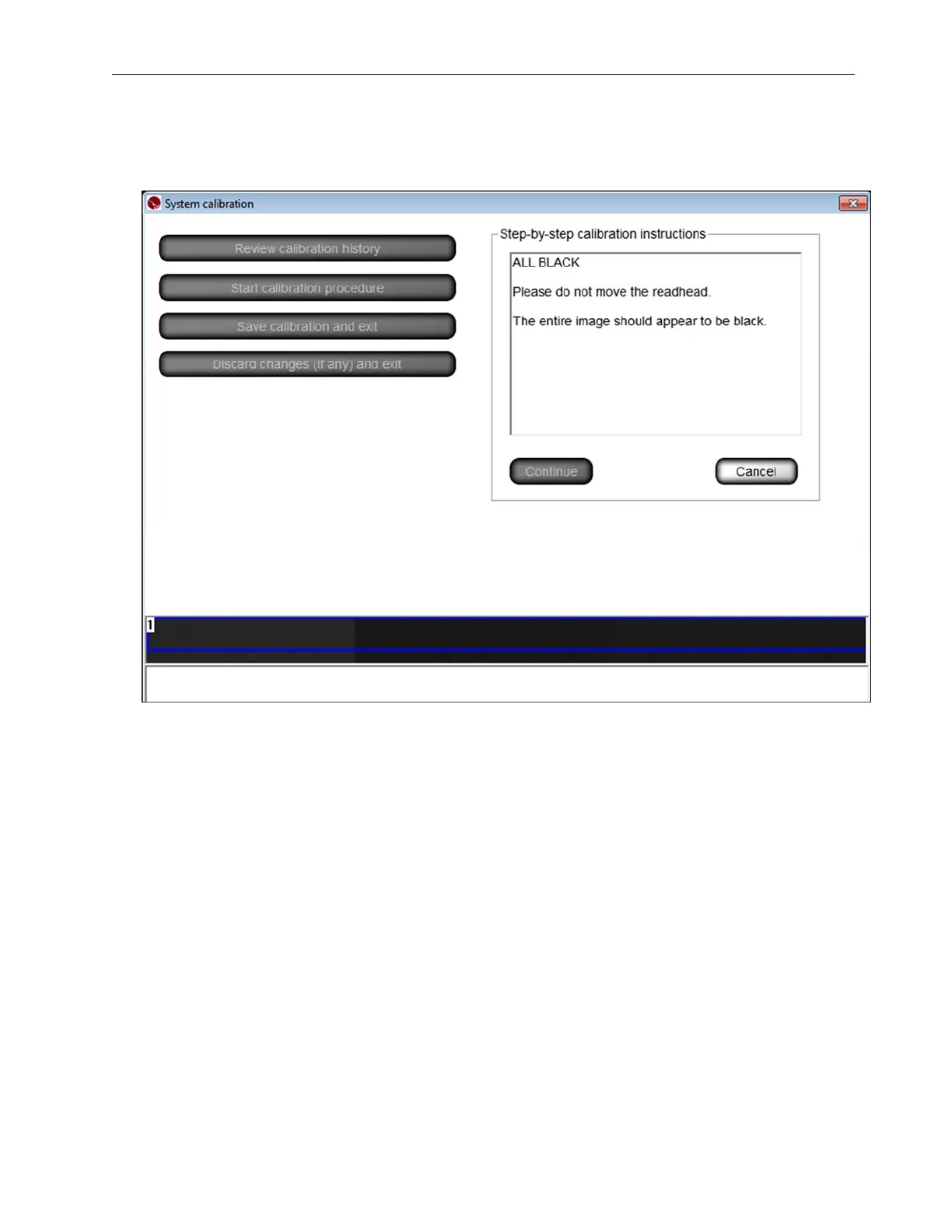

Click Continue. The following page appears.
Step-by-step calibration instructions are also listed on the right side of the screen.
