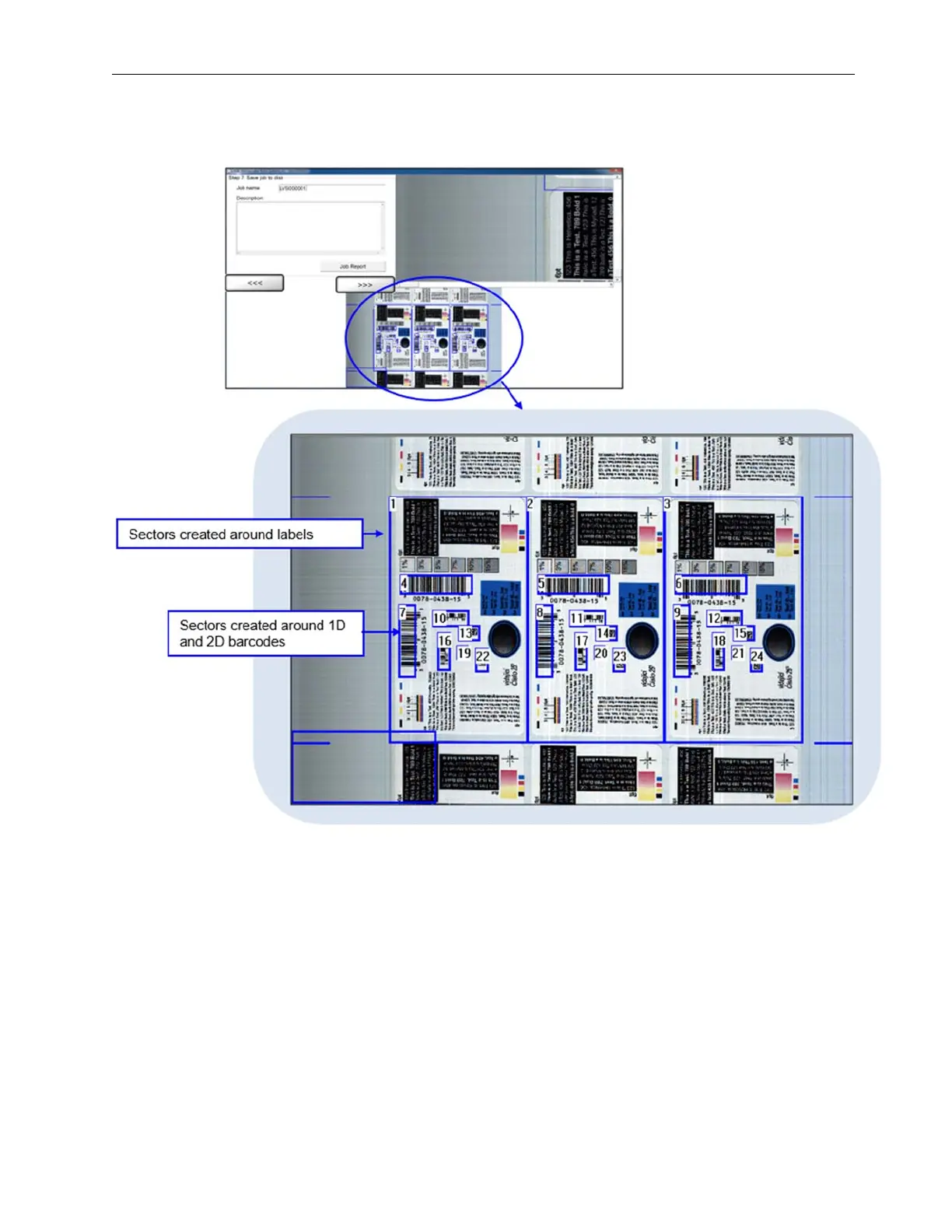

4. The LVS-7500 External System automatically detects and creates blemish sectors around any other labels
across the roll, and also detects and creates sectors around any 1D or 2D barcodes in each label.
5. Enter the name of the job in the Job name field.
6. Optional: Enter a job description in the Description field.
7. Click Job Report to view, print or save the Job Report, which shows the settings for all created sectors. See
the section entitled “LVS-7500 Job Report” for more information.
8. Click the right arrow button.
