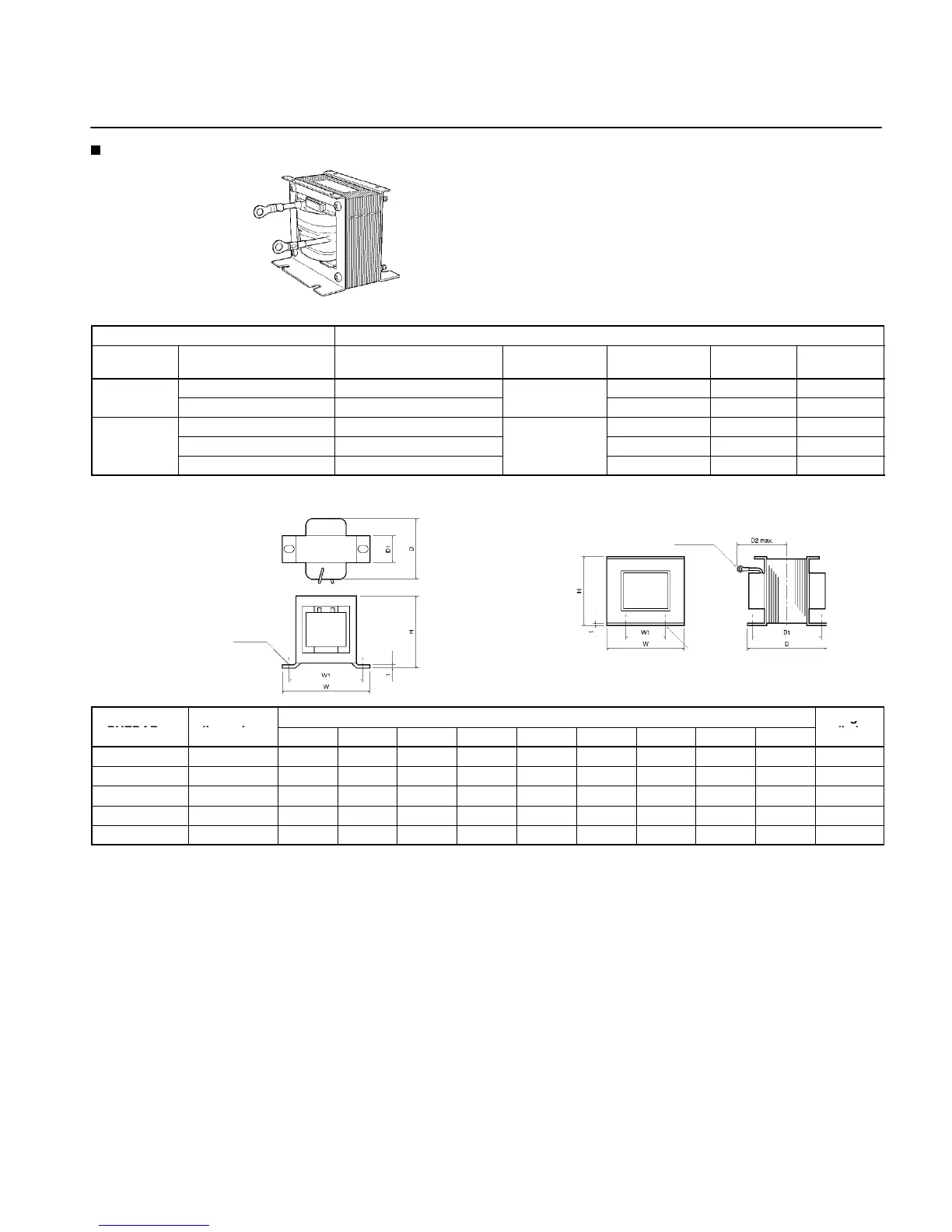

DC Reactor
3G3HV-PUZDABj
Applicable Models
Inverter DC Reactor
Voltage
class
Max. applicable motor
capacity (kW)
Model Rated voltage
(V)
Rated current
(A)
Inductance
(mH)
Loss (W)
200 V
0.1 to 0.75 3G3HV-PUZDAB5.4A8MH
800 V DC
5.4 8 8
1.5 to 3.7 3G3HV-PUZDAB18A3MH 18 3 18
400 V
0.2 to 0.75 3G3HV-PUZDAB3.2A28MH
800 V DC
3.2 28 9
1.5 to 2.2 3G3HV-PUZDAB5.7A11MH 5.7 11 11
3.7 3G3HV-PUZDAB12A6.3MH 12 6.3 16
External Dimensions (mm)
External Dimensions 1
Two, d1 mounting holes
External Dimensions 2
Two, d2 mounting holes
Four, d1 mounting
holes
Model 3G3HV-
PUZDABj
External
di i
Dimension (mm)
Weight
(k )
PUZDABj
dimensions
H W W1 D D1 D2 t d1 d2
g
(kg)
5.4A8MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
18A3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
3.2A28MH 1 53 85 74 60 32 --- 0.8 M4 --- 0.8
5.7A11MH 1 60 90 80 60 32 --- 0.8 M4 --- 1.0
12A6.3MH 2 76 86 60 72 55 80 1.2 M4 M5 2.0
The DC Reactor suppresses harmonic current generated
from the Inverter and improves the power factor of the
Inverter. The DC Reactor suppresses harmonic current
more effectively than the AC Reactor. Furthermore, the DC
Reactor can be used in combination with the AC Reactor.
Used with 3-phase or single-phase 200-V AC Inverters, or
3-phase 400-V AC Inverters.
