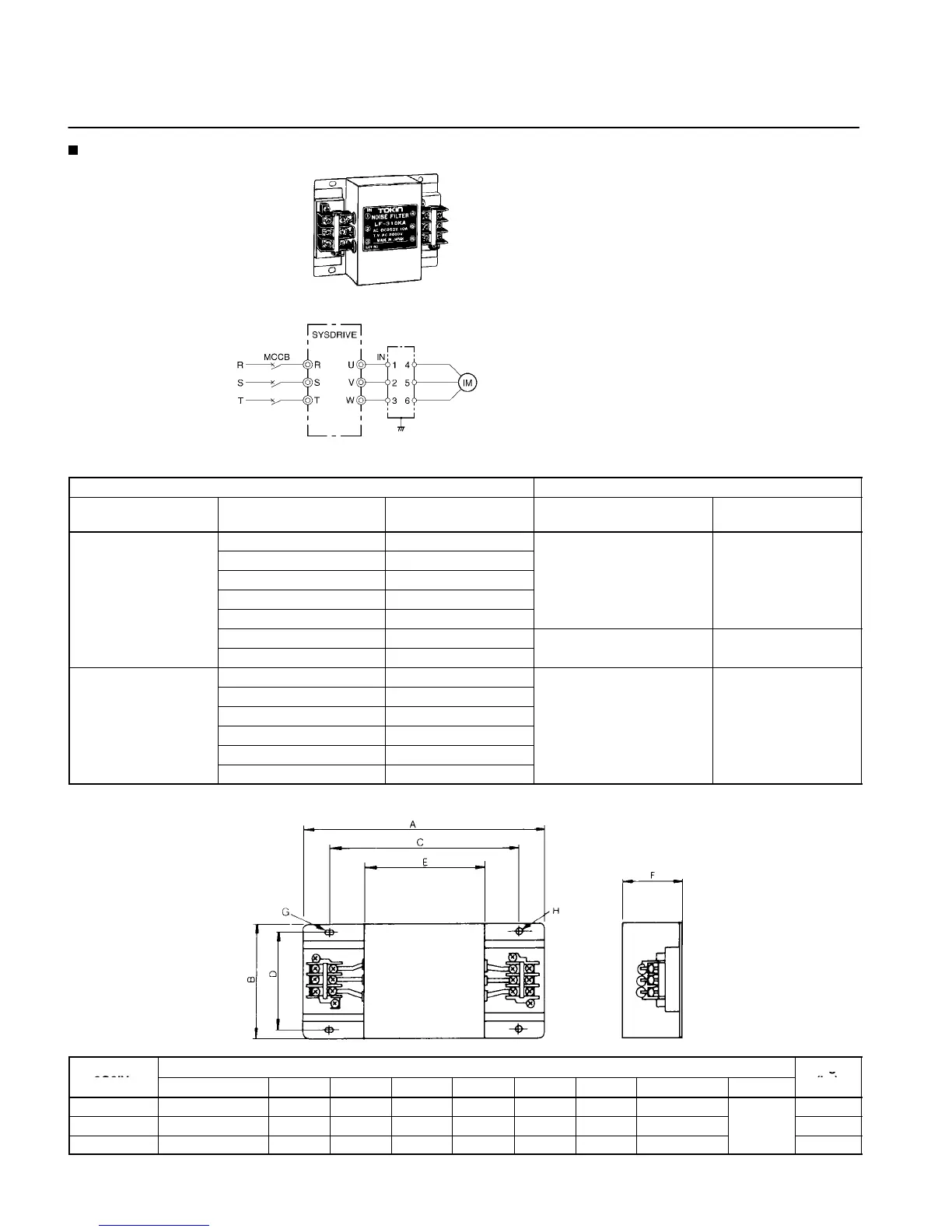

Omron 3G3JV - Output Noise Filter

The Output Noise Filter suppresses the generated noise of
the Inverter from being transmitted to the output line. Con-
nect the Output Noise Filter to the output side of the
Inverter.
Options
46
Output Noise Filter
3G3IV-PLFj (Tokin)
Connection Example
Noise filter
Output Noise Filter Connection Example
Applicable Models
Inverter Output Noise Filter
Voltage class Max. applicable motor
capacity (kW)
Inverter capacity (kVA) Model Rated current (A)
200-V class
0.1 0.3
3G3IV-PLF310KA 10
0.2 0.6
0.4 1.1
0.75 1.9
1.5 3.0
2.2 4.2
3G3IV-PLF320KA 20
3.7 6.7
400-V class
0.2 0.9
3G3IV-PLF310KB 10
0.4 1.4
0.75 2.6
1.5 3.7
2.2 4.2
3.7 6.6
External Dimensions
Model
3G3IV
Dimensions (mm)
Weight
(k )
3G3IV-
Terminal board A B C D E F G H
g
(kg)
PLF310KA TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 dia.
4.5 dia.
0.5
PLN320KA TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 dia. 0.6
PLF310KB TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 dia. 0.5
