10Appendix 2 Setting Procedure without the Configuration Files
10.3.3. Setting the Global Variables
Set global variables used for the remote I/O communications.

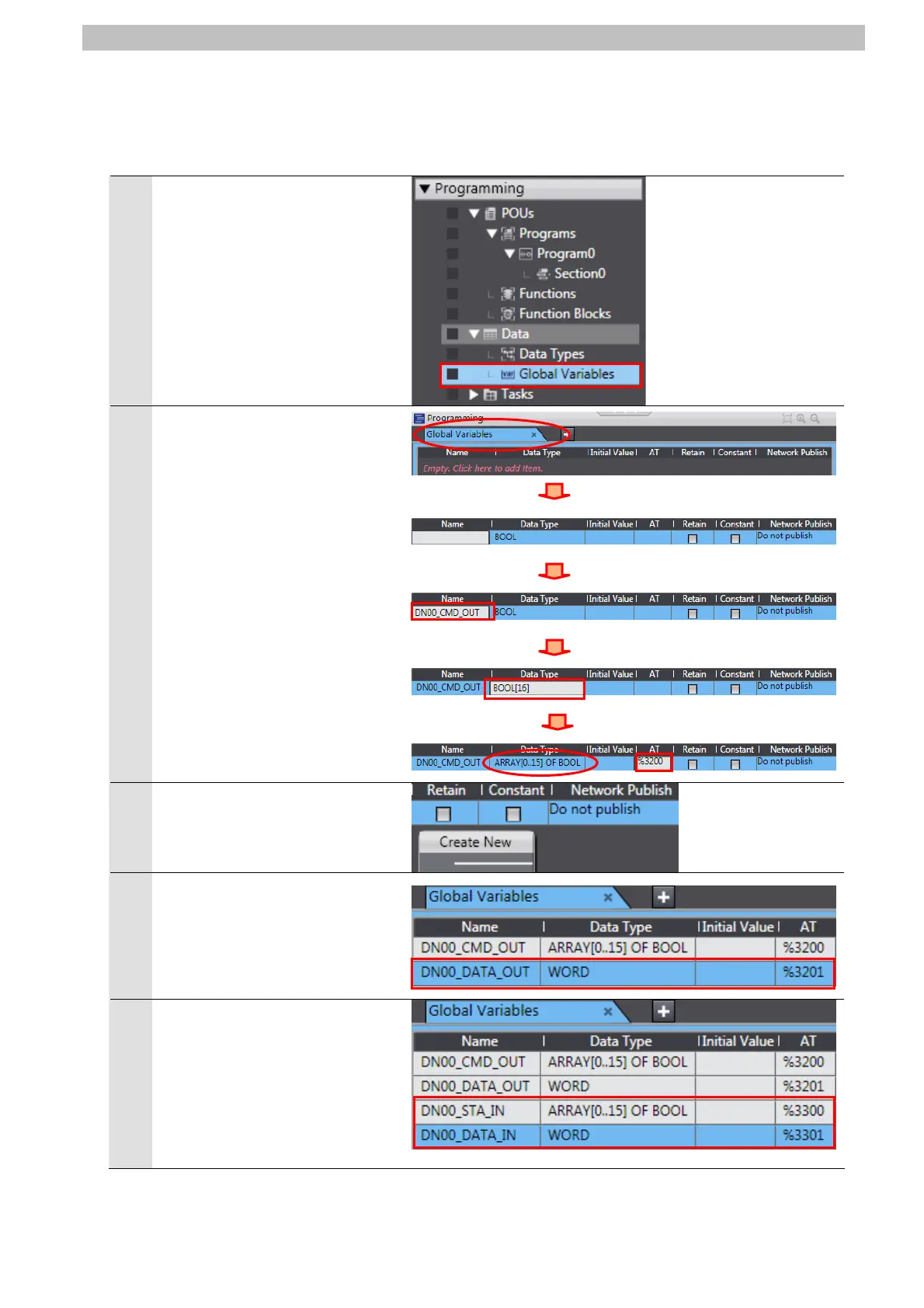

1
Double-click Global Variables
under Programming - Data in
the Multiview Explorer.
2
The Global Variables Tab Page
is displayed in the Edit Pane.
Click a column under Name to
enter a new variable.
Enter DN00_CMD_OUT in the
Name Column.
Enter BOOL[16] in the Data
Type Column.
*After entering, ARRAY[0..15]
OF BOOL is displayed as
shown on the right figure.
Enter %3200 in the AT Column.
3
After entering values, right-click
and select Create New from the
menu.
4
Enter the following data in the
new columns in the same way
as step 2.
•Name: DN00_DATA_OUT
Data type: WORD
AT: %3201
5
Enter the following data in the
new columns in the same way
as steps 2 and 3.
Name: DN00_STA_IN
OOL[16] Data type: B
AT: %3300
_IN Name: DN00_DATA
ORD Data type: W
AT: %3301
50
