2 Installation and connection
2-3 Connecting the AC input
BN50T/BN75T/BN100T/BN150T/BN220T/BN300T
2-10

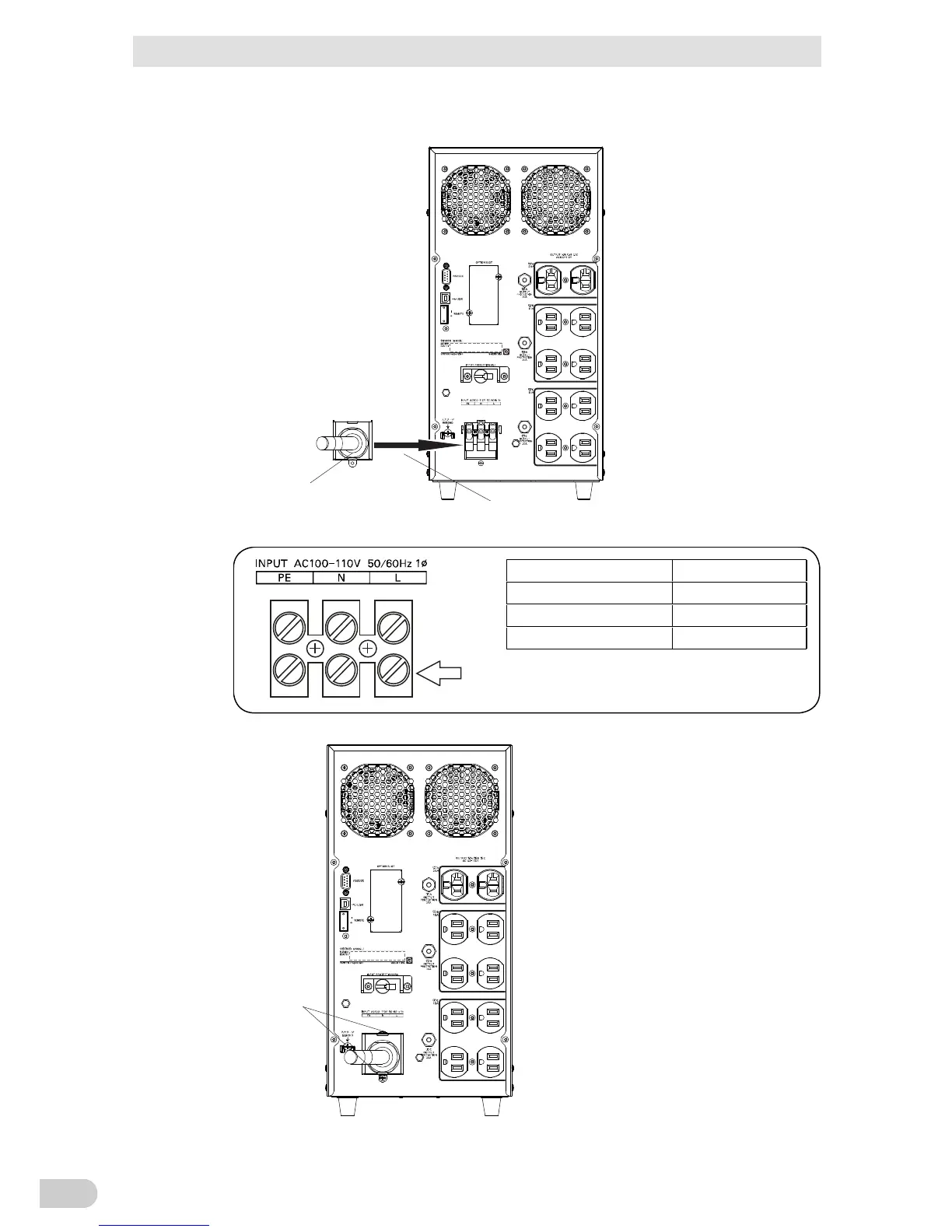

4. Connect the new AC input cable to AC input terminals by screws.
Be careful to polarities of L, N, and G terminals and connect correctly.
BN 220T
Us e Copp er Co nductor Only.
Refer to the instructi on manual
for the ti ghteni ng tor que.
Use the newAC input terminal block cover
attached to the new cable.
Connect to AC input
ternminals by screws
Securely fasten the screws with a tightening
Tighten
the screw
5.0 to 8.0mm
2
5.5mm
1.355Nm (12lb-in)
Tightening torque
8mm (AWG8)
2
Connectable wire size
Amount of stripped wire
Recommended cable size
torque of 1.355Nm (12 lb-in) or more.
5. Fasten the AC input terminal block cover to the console with screws (2 screws).
BN2 20T
Us e Copper Conduc tor O nly.
Ref er to th e instr ucti on man ual
for the tighten ing tor que.
Tighten the screw
