4 Maintenance and Inspection
4-2 Replacing the battery
BN50T/BN75T/BN100T/BN150T/BN220T/BN300T
4-6

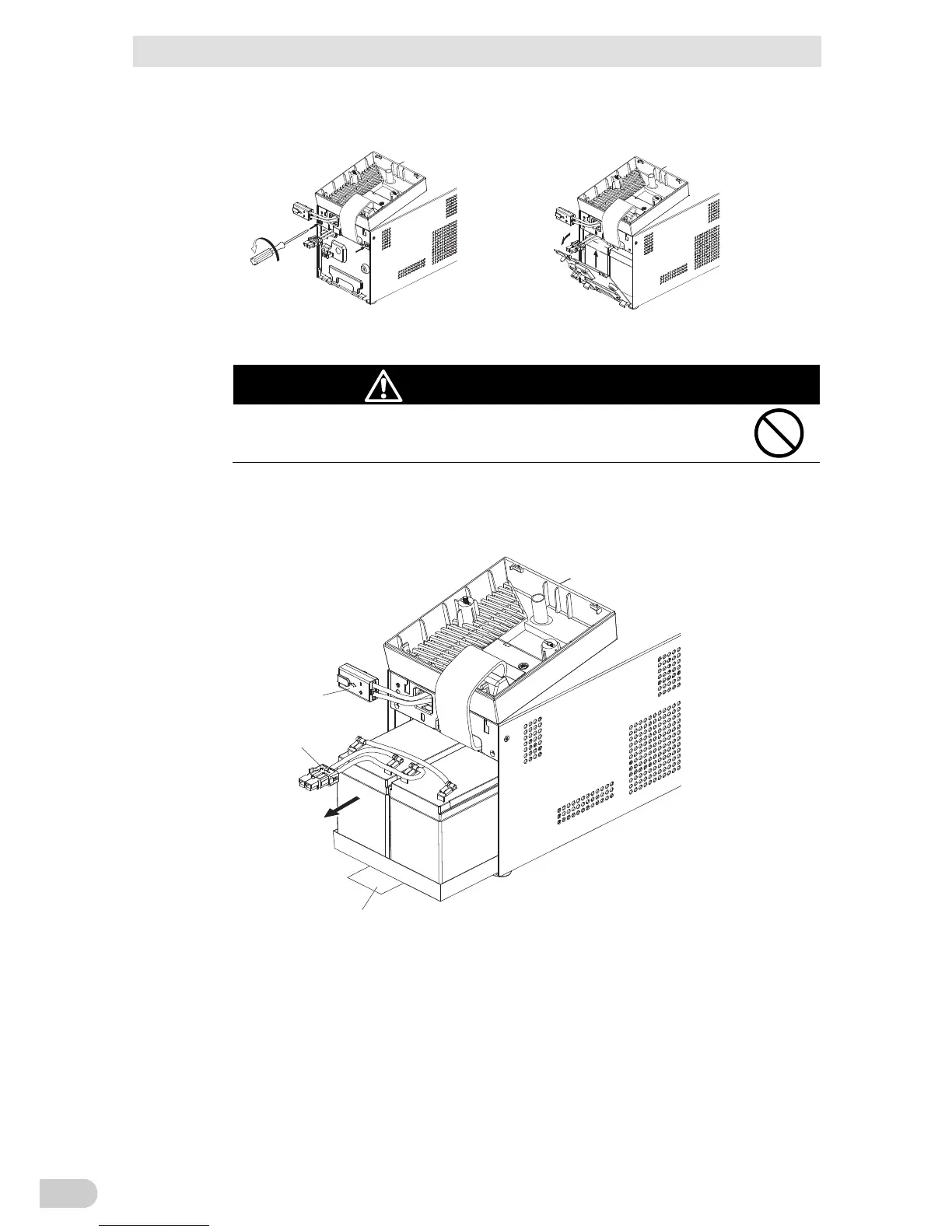

3. Turn the 2 screws that fix the plate cover counter-clockwise to remove them. 1)
Pull the plate cover towards you 2) and lift it up to remove it.3)
1)
Remove the 2 screws.
3)
2)
4. Hold the pullout label at the bottom of the battery pack and remove the battery pack.
Caution (for maintenance)
Do not hold the connector or cable of the battery pack.
Use the red tape on the top of the battery pack, which is 10 cm from the inner edge of
the battery, to gauge how much further you need to pull the battery to remove it. Hold
the battery securely with both hands so as not to drop it.
Battery connector
Pullout label
(Pull this to remove.)
Battery pack
To Next Page
