Omron CJ1M-CPU series Programming Manual

71

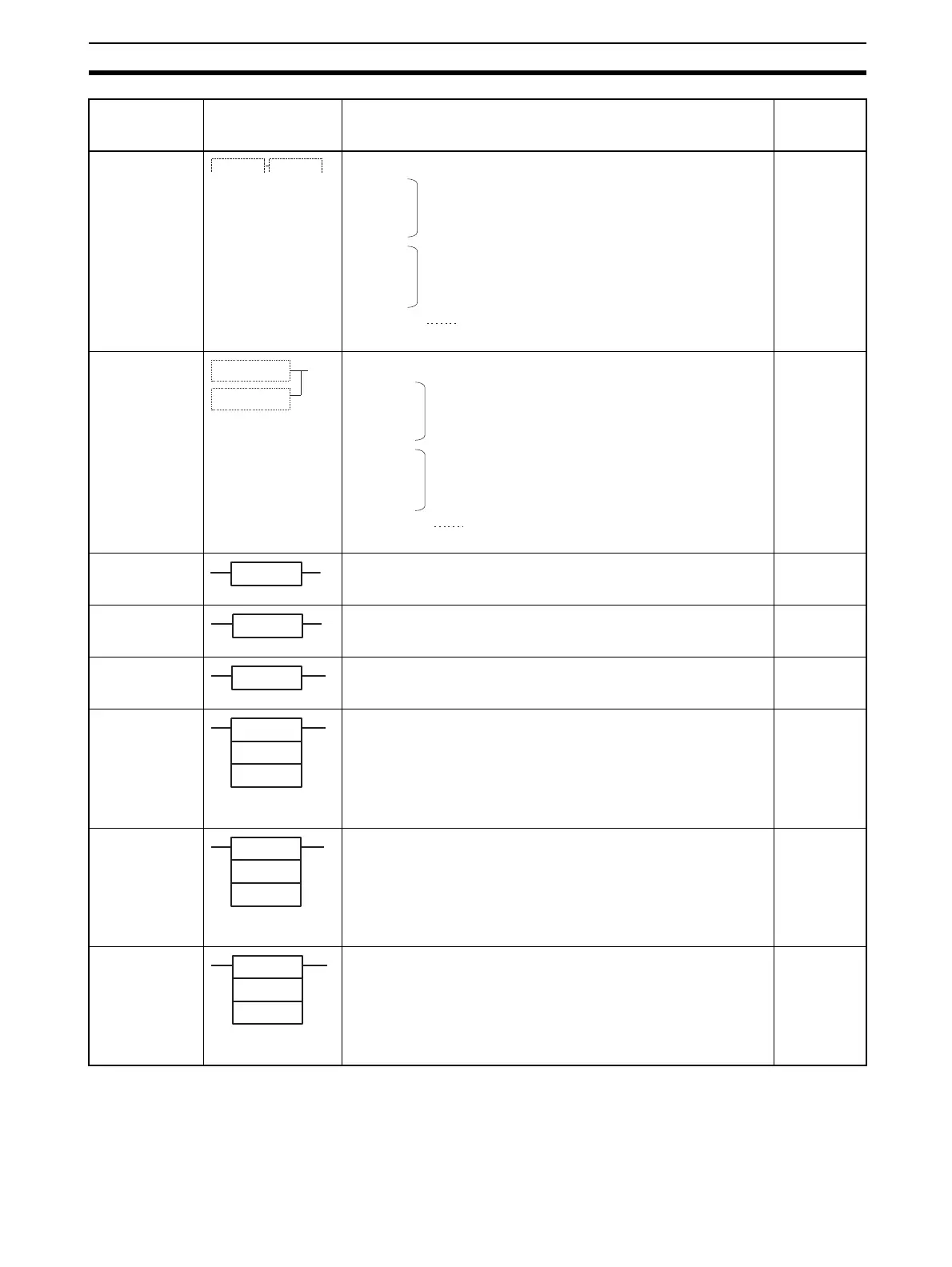

Sequence Input Instructions Section 3-1
AND LOAD
AND LD Required
OR LOAD
OR LD Required
NOT
NOT
520
Reverses the execution condition.
Required
CONDITION ON
UP
521
UP(521) turns ON the execution condition for one cycle when the execu-
tion condition goes from OFF to ON.
Required
CONDITION OFF
DOWN
522
DOWN(522) turns ON the execution condition for one cycle when the exe-
cution condition goes from ON to OFF.
Required
BIT TEST
LD TST
350
LD TST(350), AND TST(350), and OR TST(350) are used in the program
like LD, AND, and OR; the execution condition is ON when the specified bit
in the specified word is ON and OFF when the bit is OFF.
Not required
BIT TEST
LD TSTN
351
LD TSTN(351), AND TSTN(351), and OR TSTN(351) are used in the pro-
gram like LD NOT, AND NOT, and OR NOT; the execution condition is OFF
when the specified bit in the specified word is ON and ON when the bit is
OFF.
Not required
BIT TEST
AND TST
350
LD TST(350), AND TST(350), and OR TST(350) are used in the program
like LD, AND, and OR; the execution condition is ON when the specified bit
in the specified word is ON and OFF when the bit is OFF.
Required
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Logic block Logic block
Takes a logical AND between logic blocks.
Logic block A
Logic block B
Serial connection between logic block A and
lo
g
ic block B.
LD
LD
AND LD
to
to
Logic block
Logic block
Takes a logical OR between logic blocks.
Logic block A
Logic block B
Parallel connection between logic block A
and lo
g
ic block B.
LD
LD
OR LD
to
to
NOT(520)
UP(521)
DOWN(522)
S: Source word
N: Bit number
TST(350)
S
N
S: Source word
N: Bit number
TSTN(351)
S
N
S: Source word
N: Bit number
AND TST(350)
S
N
