205
Built-in Outputs Section 7-1
Preparation

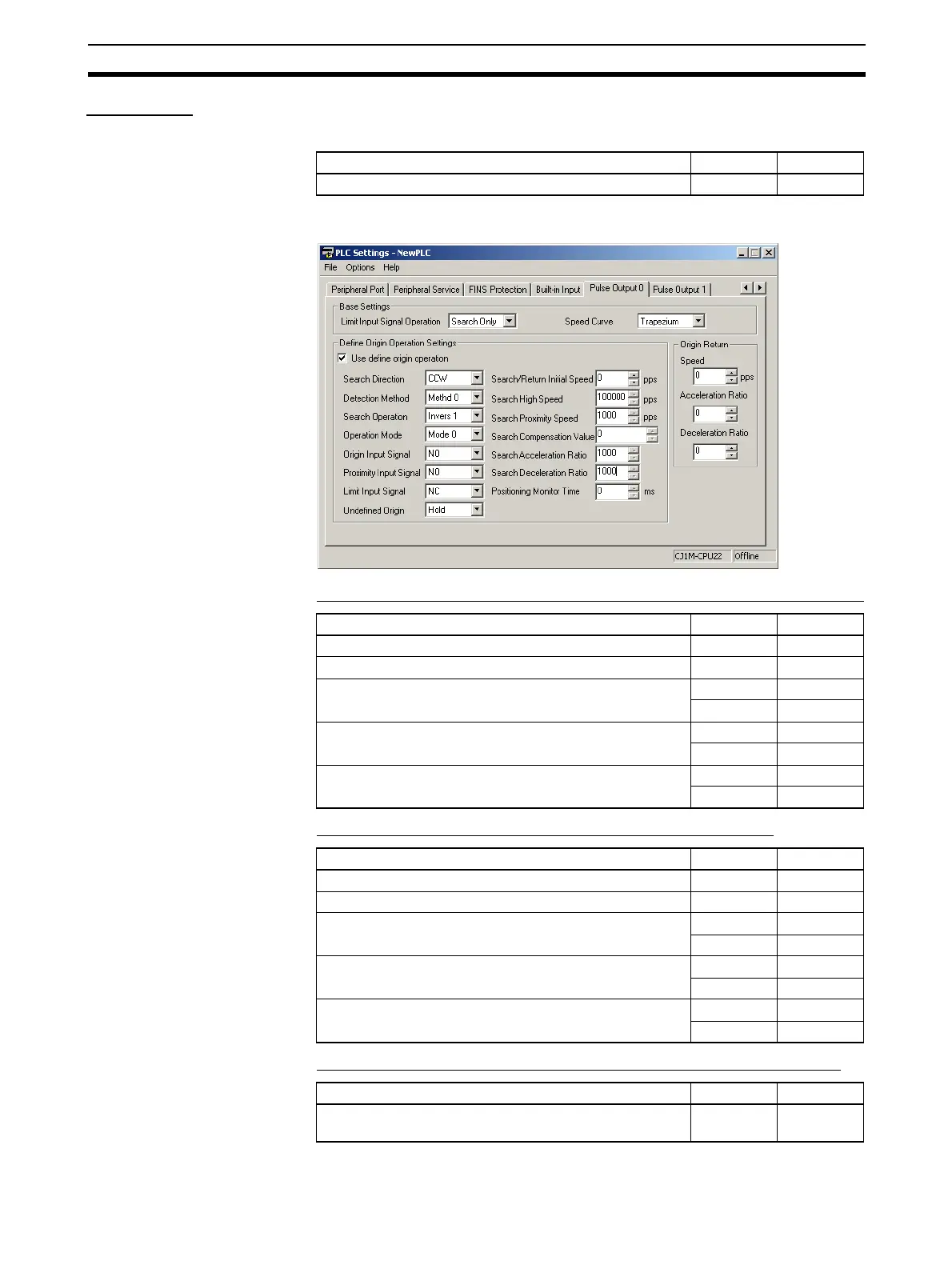

PLC Setup Settings
Note The origin search enable setting is read when the power supply is turned ON.
DM Area Settings Settings for PLS2(887) for Fixed-distance Positioning (D00000 to D00007)
Settings for PLS2(887) to Return to Start (D00010 to D00017)
Number of Repeats of Fixed-distance Positioning Operation (D00020)
Setting details Address Data
Enable origin search function for pulse output 0. 256 0001 hex
Setting details Address Data
Acceleration rate: 1,000 Hz/4 ms D00000 #03E8
Deceleration rate: 1,000 Hz/4 ms D00001 #03E8
Target frequency: 50,000 Hz D00002 #C350
D00003 #0000
Number of output pulses: 10,000 pulses D00004 #2710
D00005 #0000
Starting frequency: 0 Hz D00006 #0000
D00007 #0000
Setting details Address Data
Acceleration rate: 300 Hz/4 ms D00010 #012C
Deceleration rate: 200 Hz/4 ms D00011 #00C8
Target frequency: 50,000 Hz D00012 #C350
D00013 #0000
Number of output pulses: 10,000 × 15 pulses D00014 #49F0
D00015 #0002
Starting frequency: 100 Hz D00016 #0000
D00017 #0000
Setting details Address Data
Number of repeats of fixed-distance positioning operation
(number of PCBs in stocker)
D00020 #0015
To Next Page
