7 Tag Data Link Functions
7-28
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
21

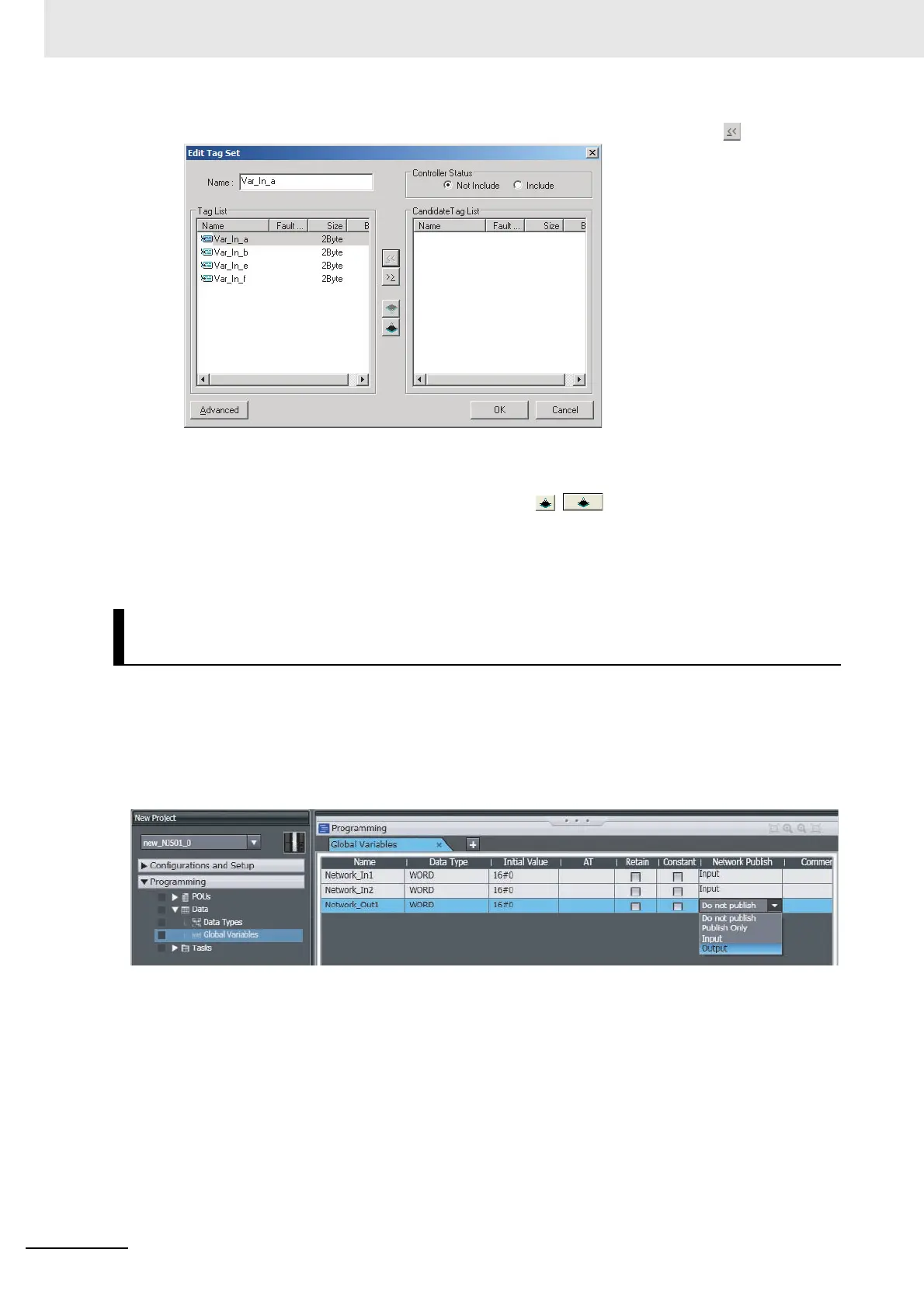

Select the tags that you want to add from the Candidate Tag List and click the Button.
You can register up to eight tags in a tag set. (If you include the Controller status in the tag set,
you can register up to only seven tags, and two bytes are added to the size.)
Data is sent and received in the order it is displayed in the tag list. To change the order of a tag,
select the tag and click the Up and Down Buttons ( ).
22
To confirm the changes, click the OK Button at the bottom of the Edit Tag Set Dialog Box.
23
Click the OK Button in the Edit Device Parameters Dialog Box.
You can create network variables in the Sysmac Studio and import these variables to the Network Con-
figurator to assign them to tags and tag sets. Use the following procedure.
Creating Global Variables on the Sysmac Studio
1
Create a global variable with the Global Variable Editor of the Sysmac Studio and select Input or
Output for the Network Publish attribute of the variable. Save the project when you are finished.
2
Select Export Global Variables
−
Network Configurator... from the Tools Menu.
Any global variables with Input or Output set for the Network Publish attribute are imported from
the csv file for the import procedure described below (Importing to the Network Configurator).
(2) Importing Variables with a Network Publish Attribute Created on
the Sysmac Studio to the Network Configurator
To Next Page
