7 Tag Data Link Functions
7-38
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

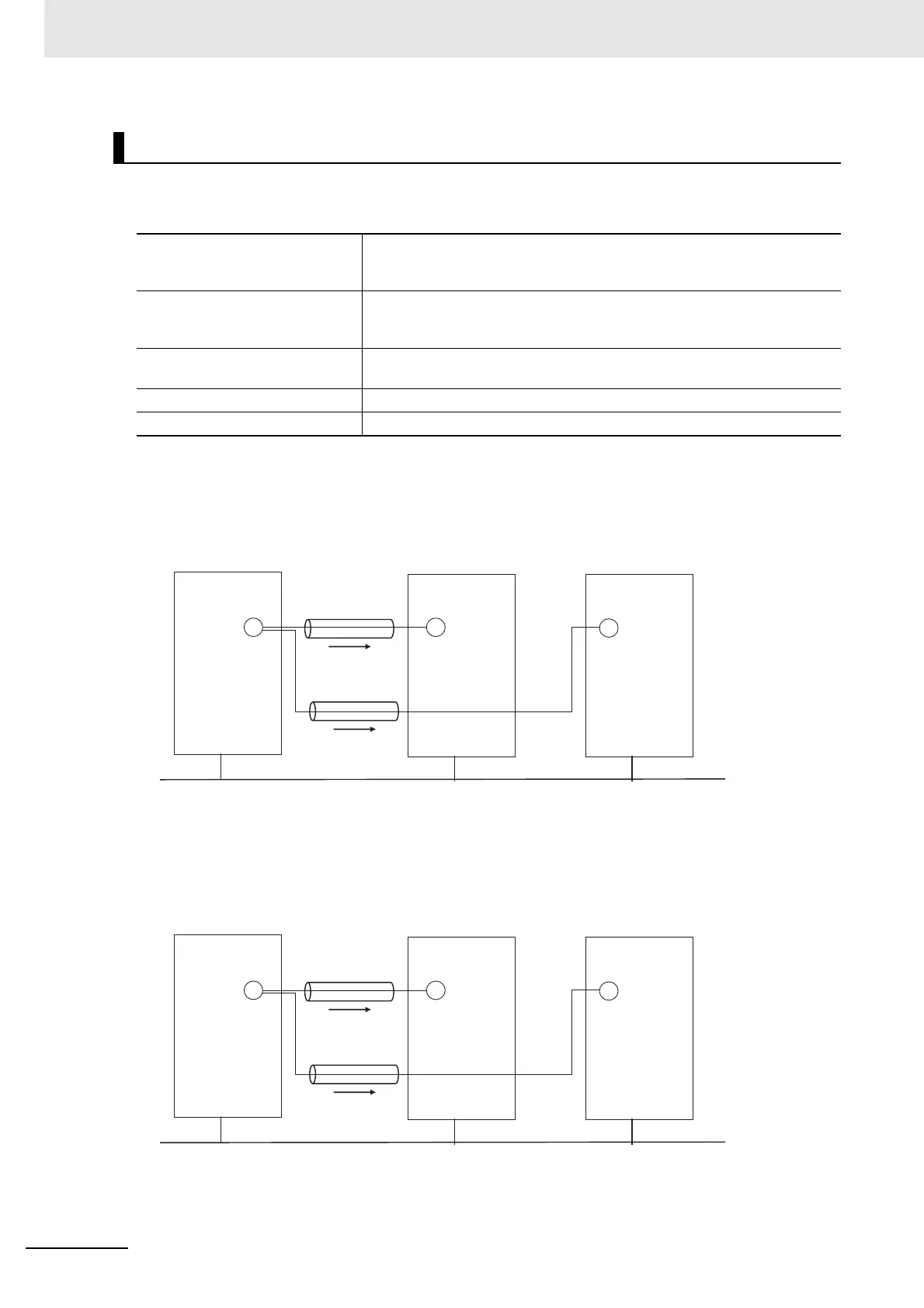

You can use automatic detection of the tag set names that are set for devices to automatically set con-
nections between input and output tag sets with the same name (or the same names excluding speci-
fied ellipses). Connections are automatically set under the following conditions.
Example 1: Automatic Connections with the Same Tag Set Names
The following connections are automatically set with the same tag set name (A_Signal) if there is an
output (produce) tag set named A_Signal at node A and input (consume) tag sets named A_Signal
at nodes B and C.
Example 2: Automatic Connections with the Ellipses
The following connections are automatically set with the same tag set name (Signal) if there is an
output (produce) tag set named O_Signal at node A and input (consume) tag sets named I_Signal
at nodes B and C, and “O_” and “I_” are set as forward ellipses.
Automatically Setting Connections (Network
−
Auto Connection)
Output tag set names for connec-
tion setting
Except for specified ellipses, the output tag set name must be the same as
the input tag set name. Ellipses can be set for the beginning or end of tag
set names.
Input tag set names for connection
settings
Except for specified ellipses, the input tag set name must be the same as
the output tag set name. Ellipses can be set for the beginning or end of tag
set names.
Connection type The connection type must be Input Only. Multi-cast or single-cast connec-
tions can be specified for a connection.
RPI The default setting is used.
Timeout The default setting is used.
EtherNet/IP
Output tag set: A_Signal
Input tag set: A_Signal
Node C
Input tag set: A_Signal
Node B
Connection
Connection
Excluded characters: NoneNode A
EtherNet/IP
Input tag set: I_Signal
Input tag set: I_Signal
Connection
Connection
Node CNode B
Output tag set: O_Signal
Excluded characters: O_ and I_
Node A
