7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7
7-2-5 Connection Settings
1
Set the same tag set names for the output and input tag sets for the connection. The tag set
names can also include forward and backward ellipses.
2

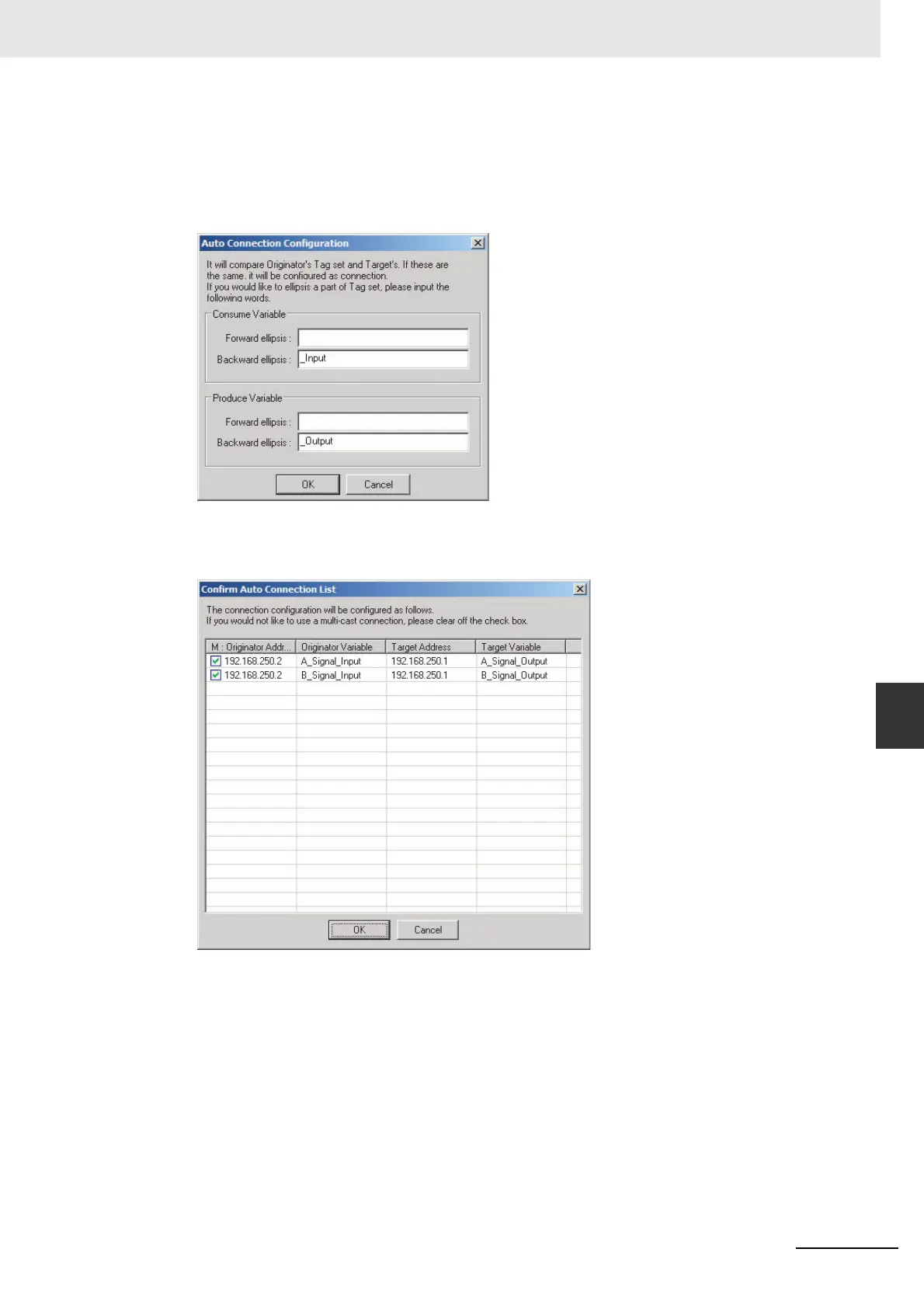

Select Auto Connection Configuration from the Network Menu. The connections will be set
automatically. A dialog box will appear to set forward and backward ellipses for both output and
input tag sets as soon as automatic connection setting processing has begun.
Input the ellipses and click the OK Button. Processing for automatic setting is started.
3
If there are tag sets that meet the conditions for automatic connection setting, they are dis-
played.
Click the OK Button. Processing for automatic setting is started.
To Next Page
