CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
Additional Information
The EtherNet/IP originator device (i.e., a device in which connections can be set) must be one of
the following OMRON EtherNet/IP devices.
Use the following procedure to create connections (i.e., data links) by dragging and dropping devices.
1 Set the tags and tag sets for the target device that will be dragged.
(1) Refer to 7-2-4 Creating Tags and Tag Sets for information on creating the settings if
the target is one of the OMRON EtherNet/IP devices given above.
(2) If the target is another EtherNet/IP device, refer to the manual of that device and per-
form settings as required.

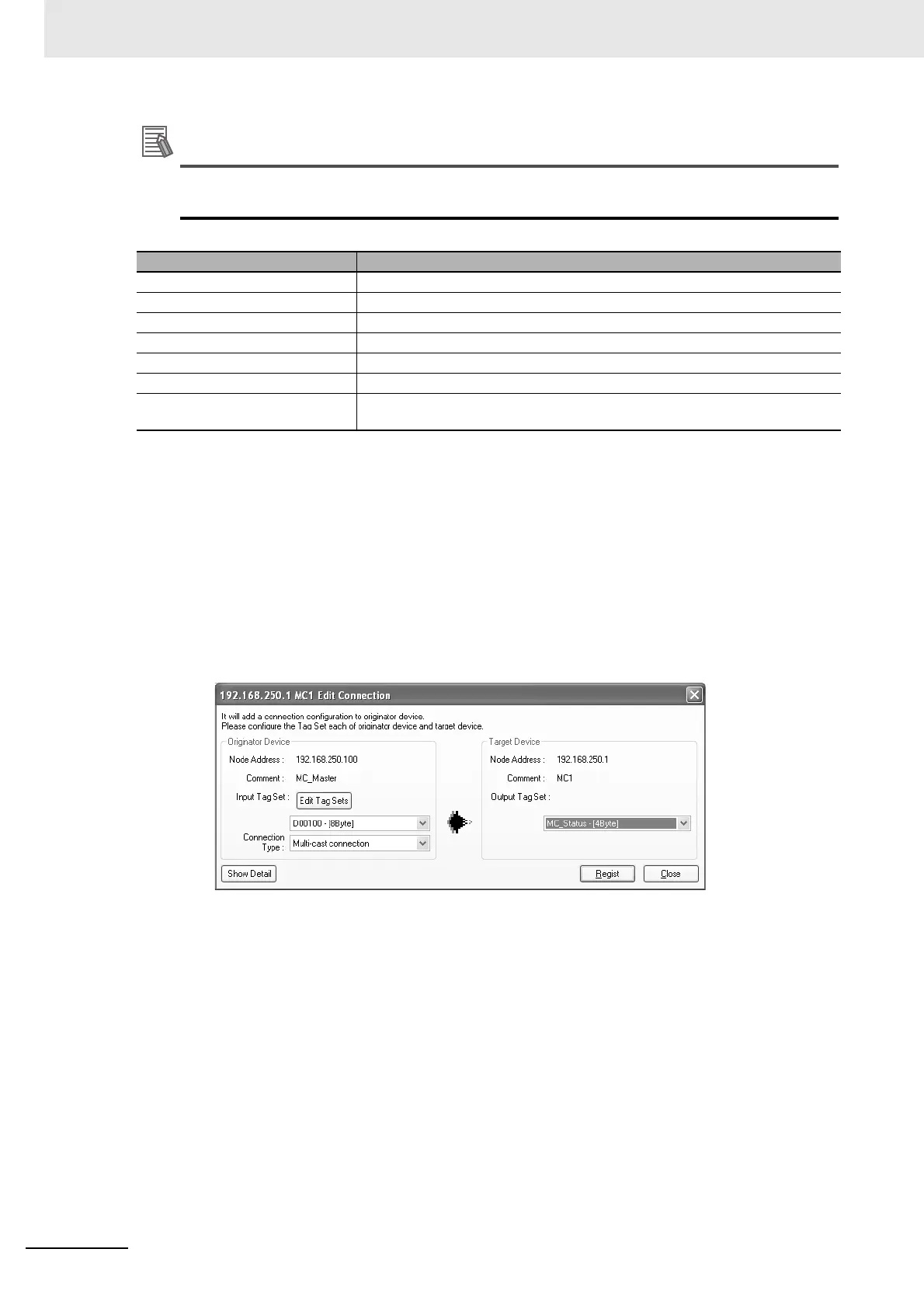

2 A dialog box as in the following figure for connection allocation will be displayed when you drag
the target device and drop it at the OMRON EtherNet/IP device.
(1) Using One of the Above OMRON EtherNet/IP Devices As Target
Select the output tag set from Target Device Area on the right side of the Edit Connection
Dialog Box, and then select the input tag set to receive the output tag set in the Originator
Device Area on the left.
• If there is no applicable input tag set at the originator, you can create a new one by using
the Edit Tag Sets Button and Edit Tag Button.
Device name Remarks
CJ1W-EIP21(NJ) CJ1W-EIP21 mounted to NJ-series CPU Unit
CJ1W-EIP21 CJ1W-EIP21 mounted to CJ1 CPU Unit
CJ1W-EIP21(CJ2) CJ1W-EIP21 mounted to CJ2 CPU Unit
CJ2B-EIP21 Built-in EtherNet/IP port in CJ2H CPU Unit
CJ2M-EIP21 Built-in EtherNet/IP port in CJ2M CPU Unit
CS1W-EIP21 CJ1W-EIP21 mounted to CS1 CPU Unit
NJ301-@@@@
NJ501-@@@@
Built-in EtherNet/IP port in the NJ-series CPU Unit
