7-45
7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7
7-2-7 Creating Connections by Device Dragging and Dropping
(2) Using Other EtherNet/IP Devices as Target

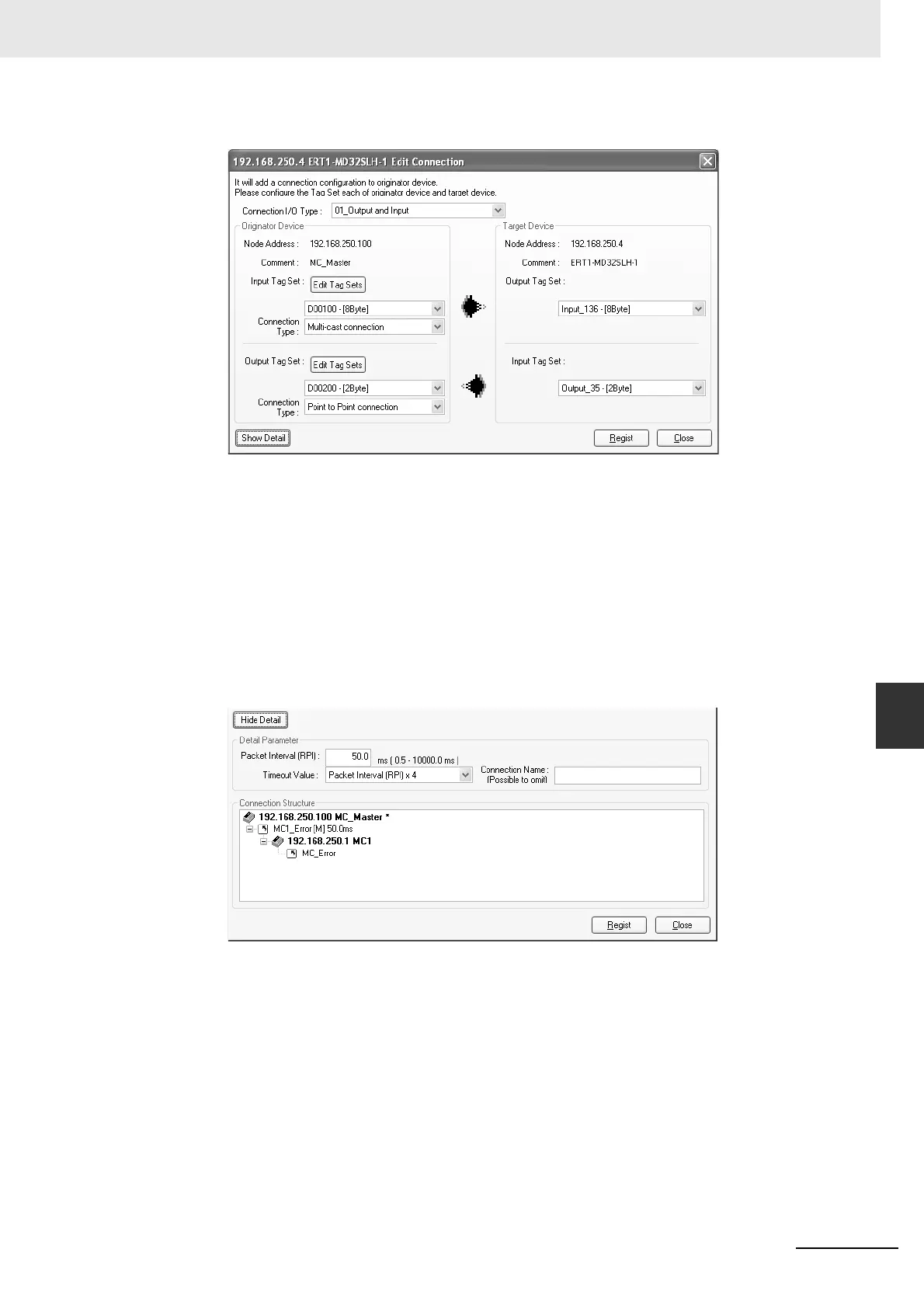

The connection I/O type list box in the upper part of the Connection Settings Dialog Box dis-
plays the connection I/O types that can be selected. Select the connection I/O type accord-
ing to your application.
• The connection I/O types that can be selected depend on the target device.
• Items that can be selected will depend on the connection I/O type that is selected.
• Select the output, input, or both output and input tag sets at the target and specify the
corresponding input, output, or both input and output tag sets at the originator.
• If there is no applicable tag set at the originator, you can create a new one by using the
Edit Tag Sets Button and Edit Tag Button.
The following display will appear when you click the Show Detail Button.
The specified values for detailed parameters will be displayed. Change the values as
required. Connection names are automatically created using the following rule.
default_N (where N is a 3-digit number (001, 002, etc.) starting from 1)
