7 Tag Data Link Functions
7-46
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

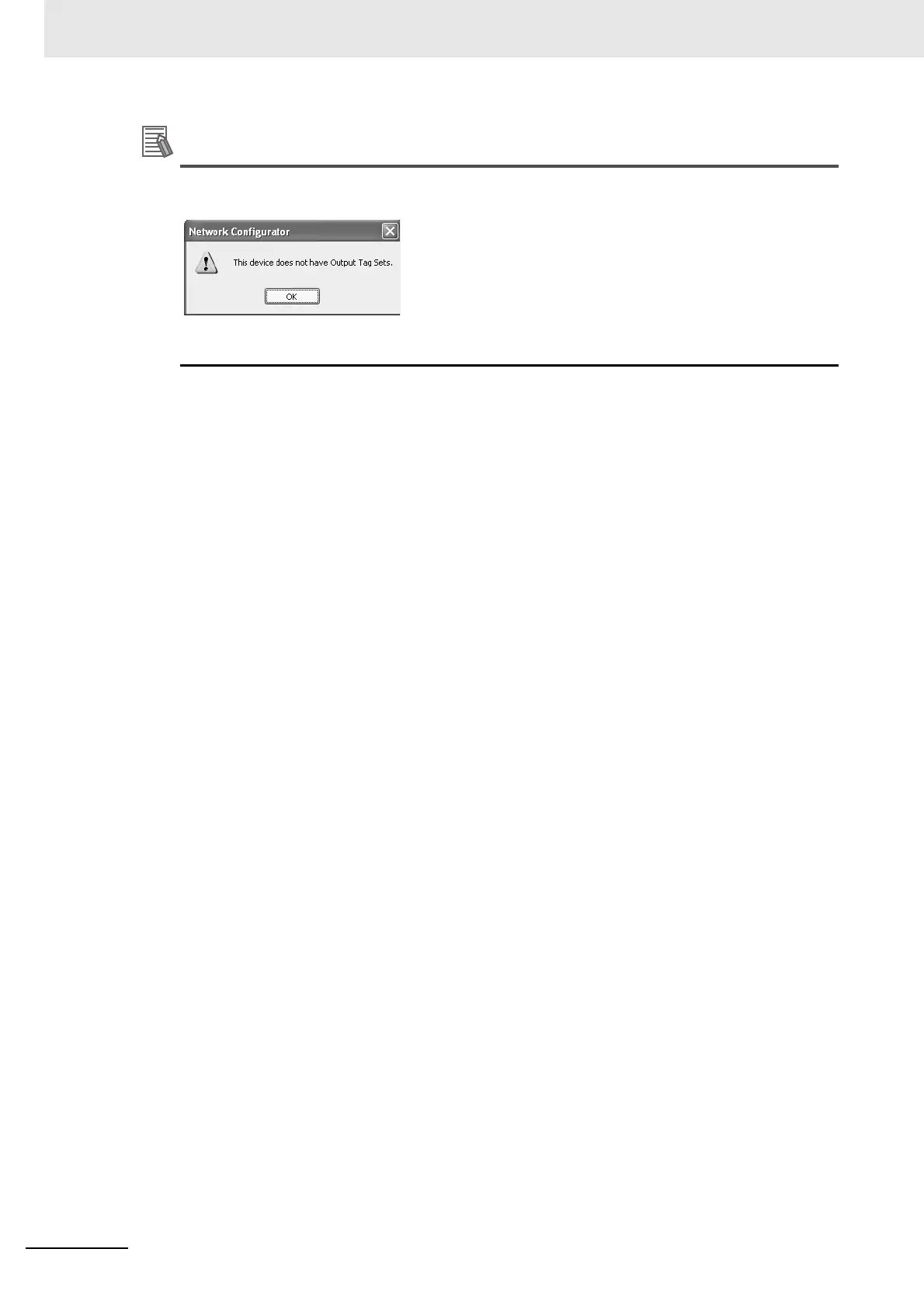

The following dialog box will be displayed if a target device that does not have I/O data is
dropped.
Before dropping again, refer to the manual of the applicable device and create the I/O data (i.e.,
output tag sets) required to create a connection.
3
After you have set all of the connection, click the Regist Button to create the connection. When
creating the connection has been completed, the input tag set and output tag set will be blank.
Next, you can continue to create connections by selecting the connection I/O type and setting a
tag set.
