Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
23

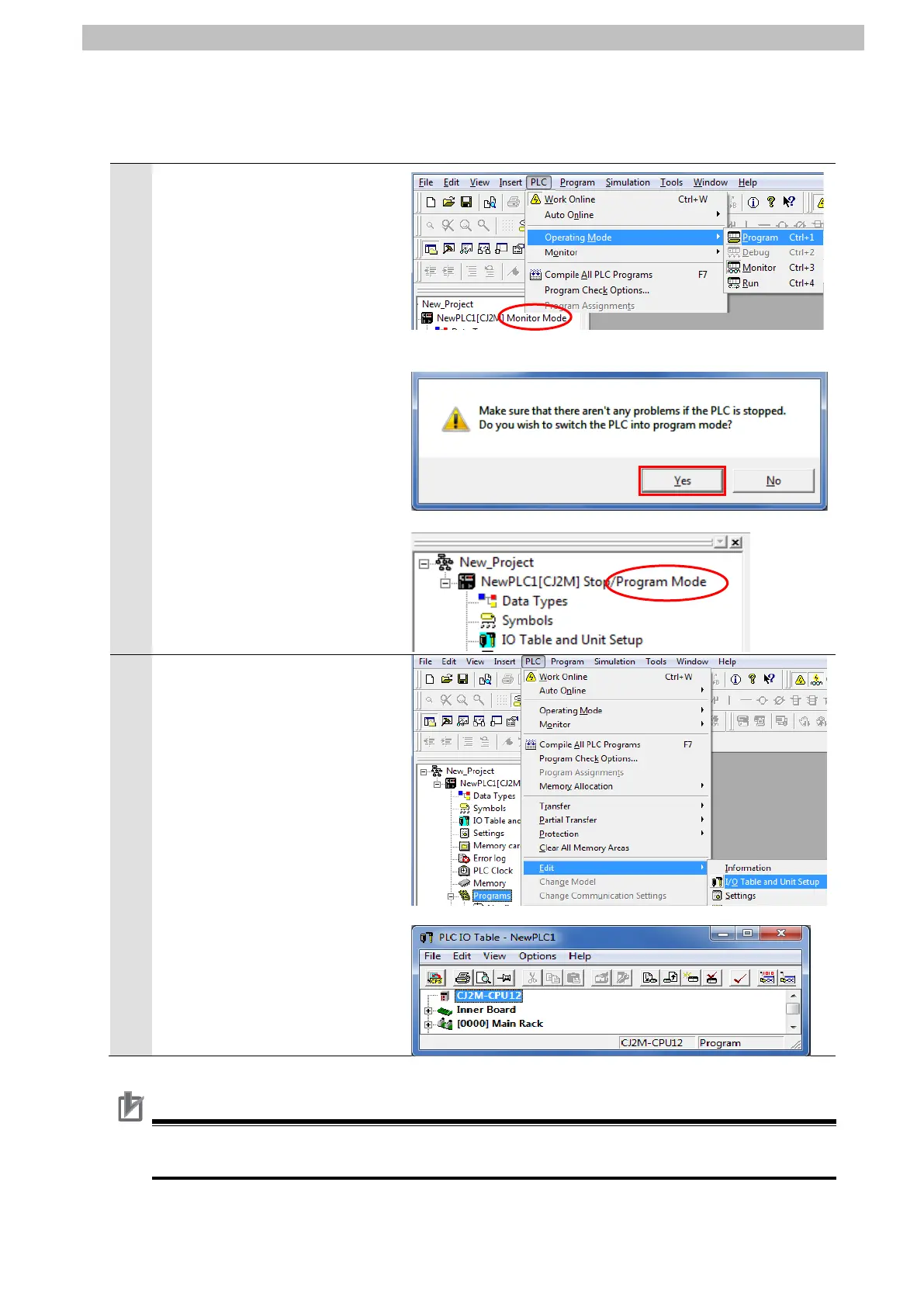

7.3.3. Creating the I/O Table
Create the I/O table for PLC.
1
If the operating mode of PLC is
Run Mode or Monitor Mode,
change it to Program Mode by
following the steps below.
(1)Select Operating Mode -
Program from the PLC Menu
in CX-Programmer.
(2)The confirmation dialog box
on the right is displayed.
Confirm that there is no
problem, and click Yes.
*Refer to Additional Information
on the previous page for the
settings concerning the dialog
display.
(3)Check that Stop/Program
Mode is displayed on the right
of the PLC model in the
project workspace of
CX-Programmer.
2
Select Edit - I/O Table and Unit
Setup from the PLC Menu in
CX-Programmer.
The PLC IO Table Window is
displayed.
Precautions for Correct Use
The PLC is reset after creating and transferring the I/O table in step 3 and subsequent steps.
Always confirm safety before creating and transferring the I/O table.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
