Omron CJ2M-CPU Series Connection Guide

5
．
Applicable Devices and Device Configuration
6

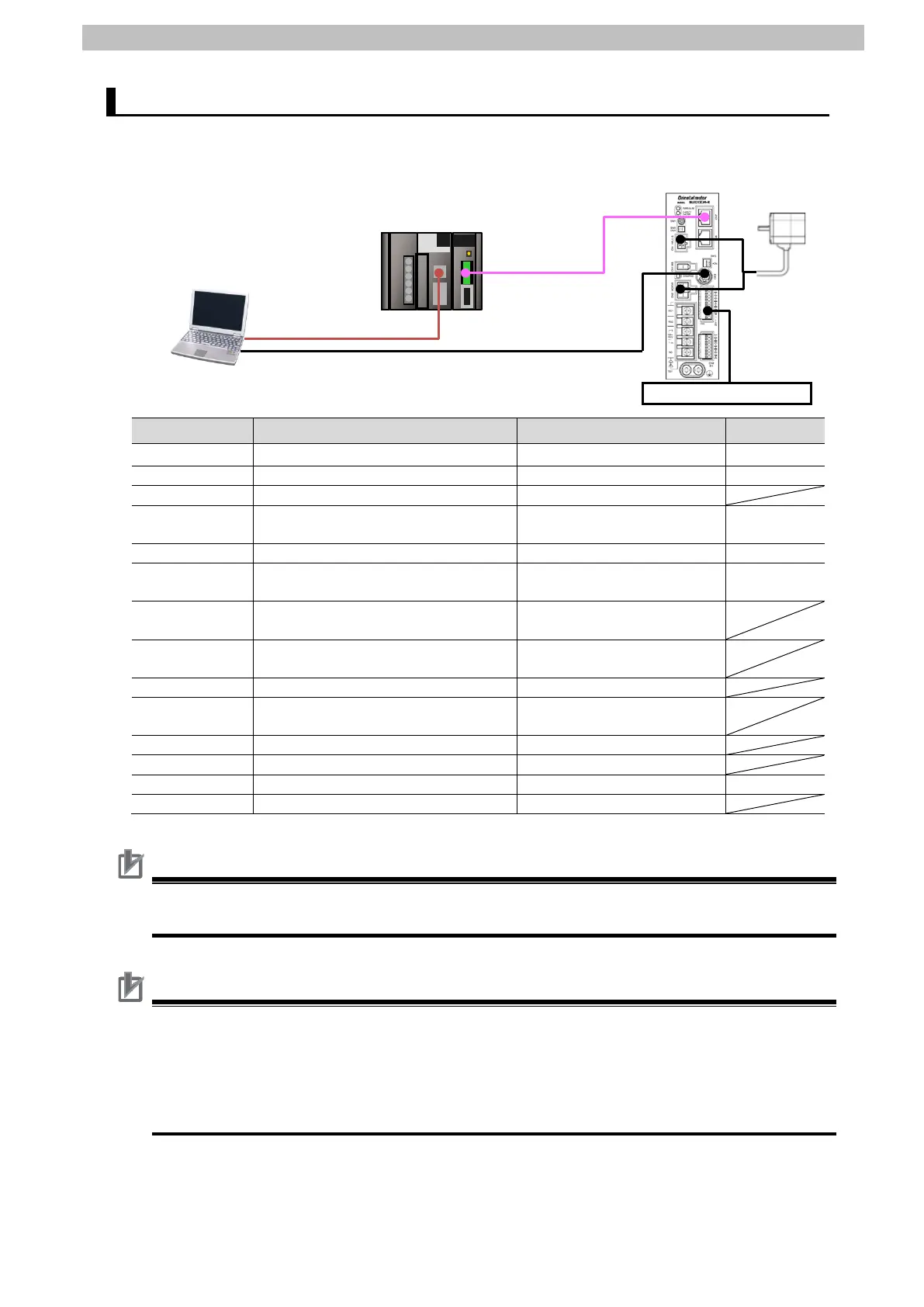

5.2. Device Configuration
The hardware components to reproduce the connection procedures in this document are as
follows:
Manufacturer Name Model Version
OMRON
Serial Communications Unit
CJ1W-SCU42
Ver.2.0
OMRON
CJ2 CPU Unit
CJ2M-CPU12
Ver.2.0
OMRON
Power Supply Unit
CJ1W-PA202
OMRON
CX-One
CXONE-AL[][]C-V4
/AL[][]D-V4
Ver.4.[][]
OMRON
CX-Programmer
(Included in CX-One)
Ver.9.61
OMRON
CX-Programmer project file
(ladder program)
P659_CJ_Mod485_Orient
al_BLE_EV100.cxp
Ver.1.00
-
Personal computer
(OS: Windows 7)
-
-
USB cable
(USB 2.0 type B connector)
-
-
Serial cable (RS-485)
-
Oriental Motor
Communication cable for the data
setting software
CC05IF-USB
Oriental Motor
Driver
BLED3AM-R
Oriental Motor
Motor
BLEM23-A
Oriental Motor
Data setting software MEXE02
-
Ver.3.31
-
24 VDC power supply (for Driver)
-
Precautions for Correct Use
Prepare the project file with a latest version beforehand.
To obtain the project file, contact your OMRON representative.
Precautions for Correct Use
Update CX-Programmer to the version specified in this Clause 5.2. or to a higher version.
If you use a version higher than the one specified, the procedures and related screenshots
described in Section 7. and subsequent sections may not be applicable. In that case, use the
equivalent procedures described in this document by referring the CX-Programmer
OPERATION MANUAL (Cat. No. W446).
Serial cable
(RS-485)
CJ2M-CPU12
＋
CJ1W-SCU42
Personal computer
(CX-One and
MEXE02 installed,
OS: Windows 7
）
USB cable
24 VDC power supply
BLED3AM
-
R
BLEM23-A
CC05IF-USB

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
