DIN Track
DIN Track

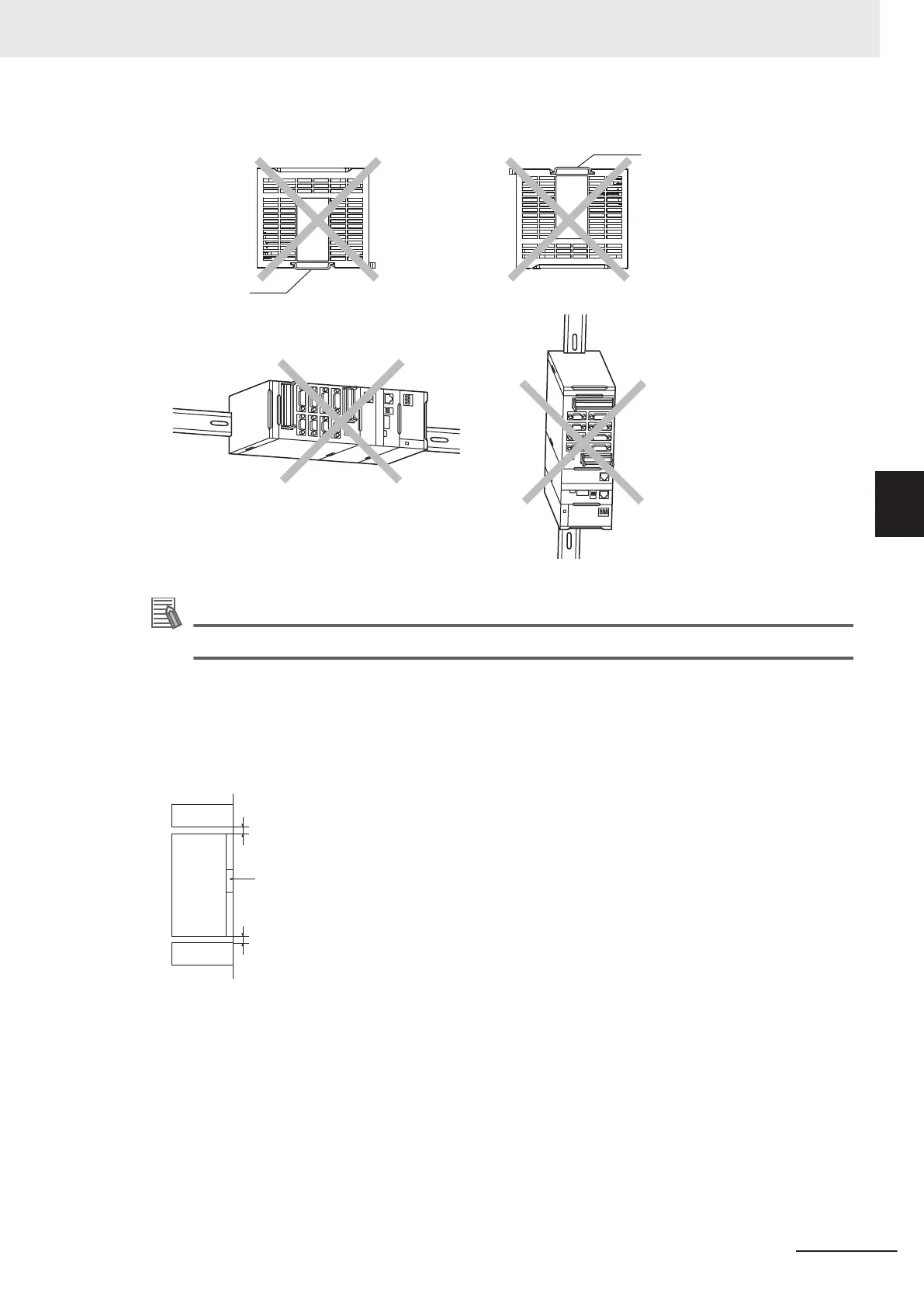

Mounting with the DIN Track on the Bottom
Mounting with the Rack Upside Down
Mounting with the DIN Track Installed
Vertically
Mounting with the DIN Track on the Top
Additional Information
A Controller must be mounted on a DIN Track. It cannot be mounted with screws.

Wiring Ducts
Whenever possible, route I/O wiring through wiring ducts.
Install mounting bracket so that it is easy to fish wire through the duct. It is handy to have the duct
at the same height as the CPU Rack.
Duct
Duct
Unit
2
0 mm min.
20 mm min.
DIN Track
4 Installation
4-7
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-3 Mounting Units
4
4-3-1 Installation in a Control Panel
