Omron CK3W-GC 00 Series User Manual

4-3-5

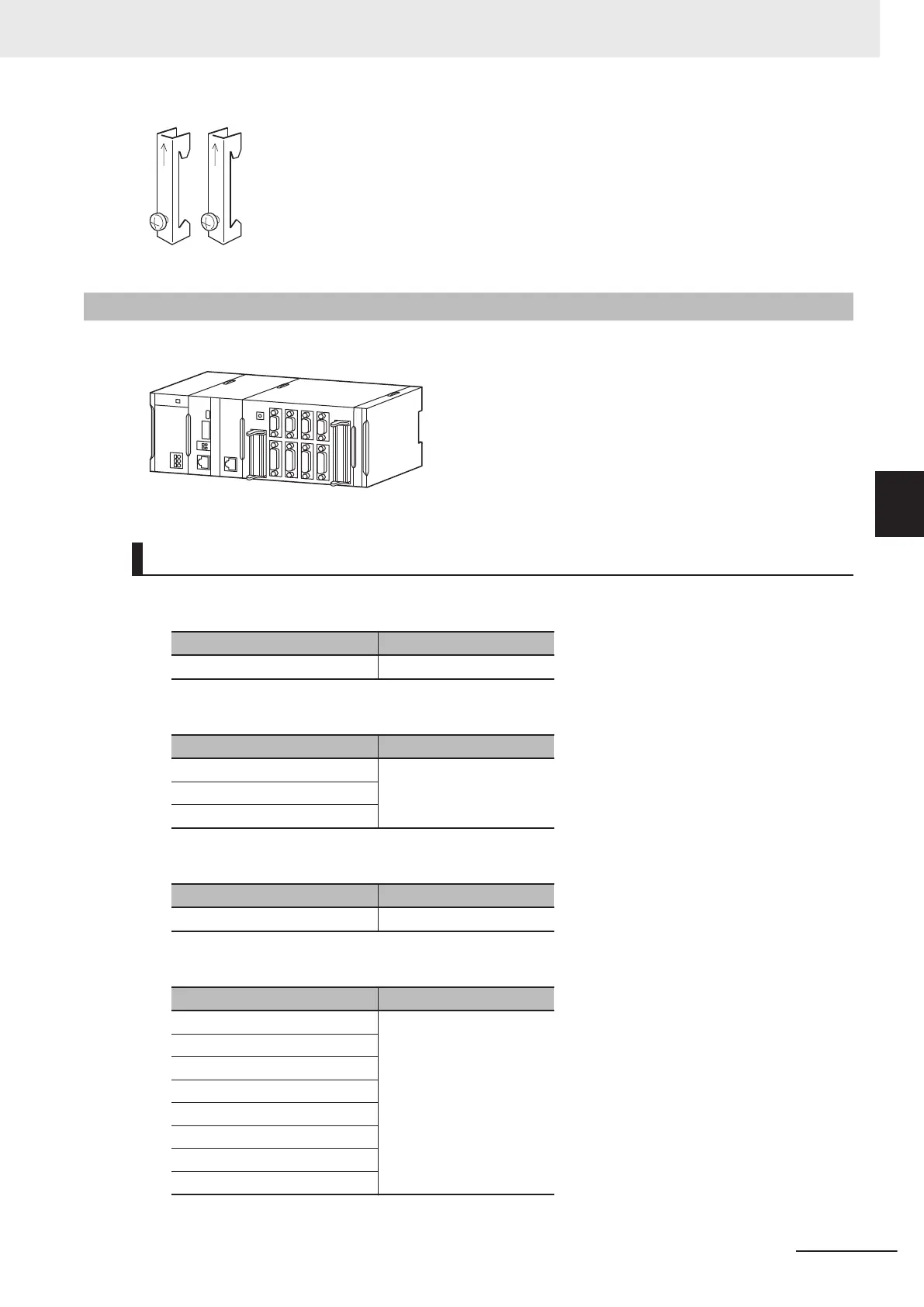

Assembled Appearance and Dimensions
The CK3M-series Units are connected to each other. An End Cover is connected to the right end.
Dimensions

Power Supply Unit
Model Unit width (mm)
CK3W-PD048 45

CPU Unit
Model Unit width (mm)
CK3M-CPU101 63.2
CK3M-CPU111
CK3M-CPU121

End Cover
Model Unit width (mm)
CK3W-TER11 15.6

Axis Interface Unit
Model Unit width (mm)
CK3W-AX1313N 130
CK3W-AX1414N
CK3W-AX1515N
CK3W-AX2323N
CK3W-AX1313P
CK3W-AX1414P
CK3W-AX1515P
CK3W-AX2323P
