Precautions for Safe Use
• Make sure that all wiring is correct.
•
Do not bend the cable forcibly. Doing so may break the cable.

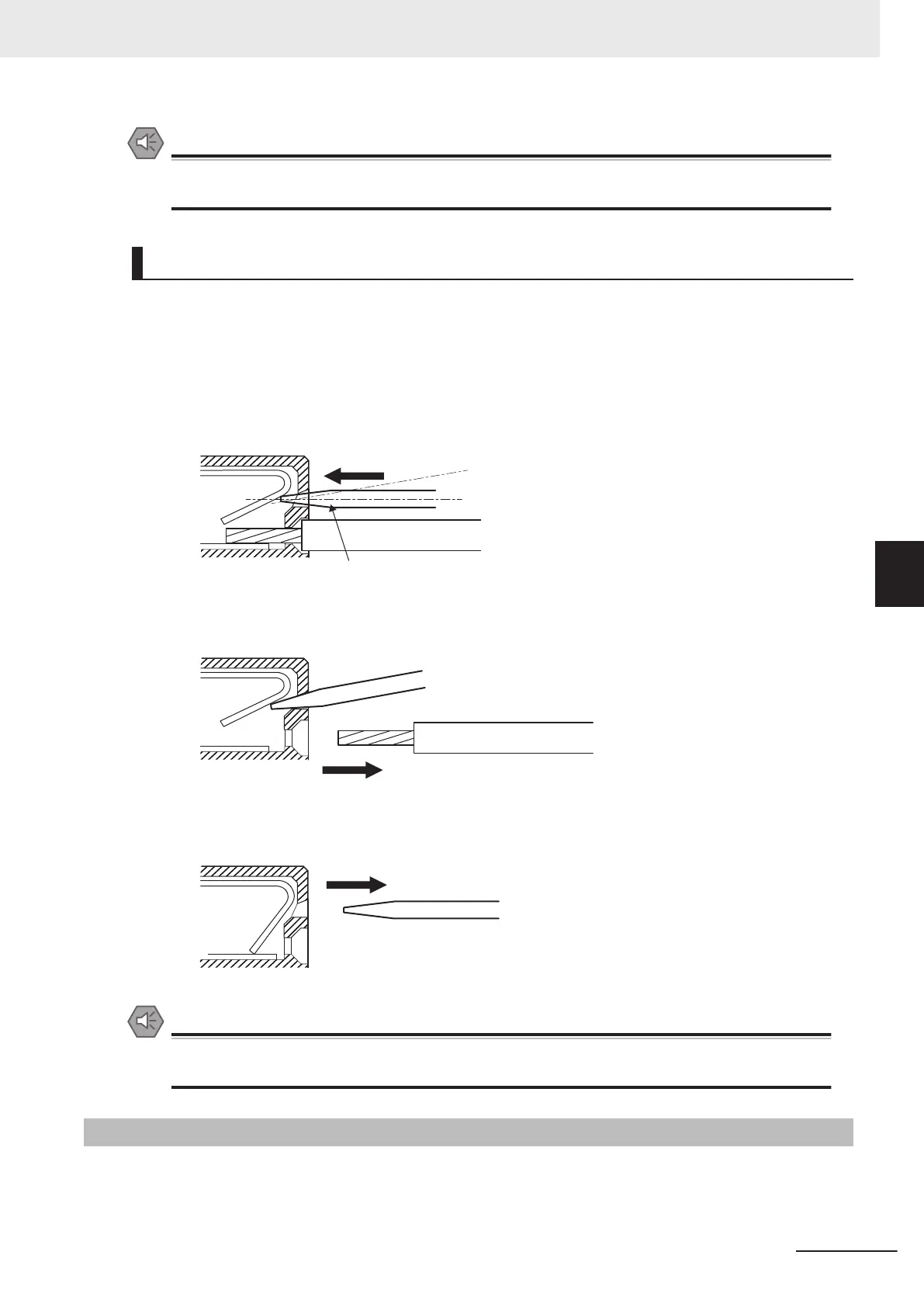

Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
1 Press a flat-blade screwdriver straight into the release hole.
If you press in the screwdriver correctly
, you will feel the spring in the release hole, and the
screw driver will begin to incline.
1
Wire
Flat-blade screwdriver
2 Leave the flat-blade screwdriver pressed into the release hole and pull out the wire.
3 Remove the flat-blade screwdriver from the release hole.
Precautions for Safe Use
• Make sure that all wiring is correct.
•
Do not bend the cable forcibly. Doing so may break the cable.
5-2-4
USB Memory Device Connection
Connect a USB memory device to the USB host port (Type A) on the CPU Unit to save relevant data.
Refer to 3-1-5 USB Memory Device on page
3-8 for information on the recommended USB memory
devices.
5 Wiring
5-17
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-2 CPU Unit Wiring
5
5-2-4 USB Memory Device Connection
To Next Page
