Ferrule
After you make a connection, make sure that the ferrule is securely connected to the terminal block.

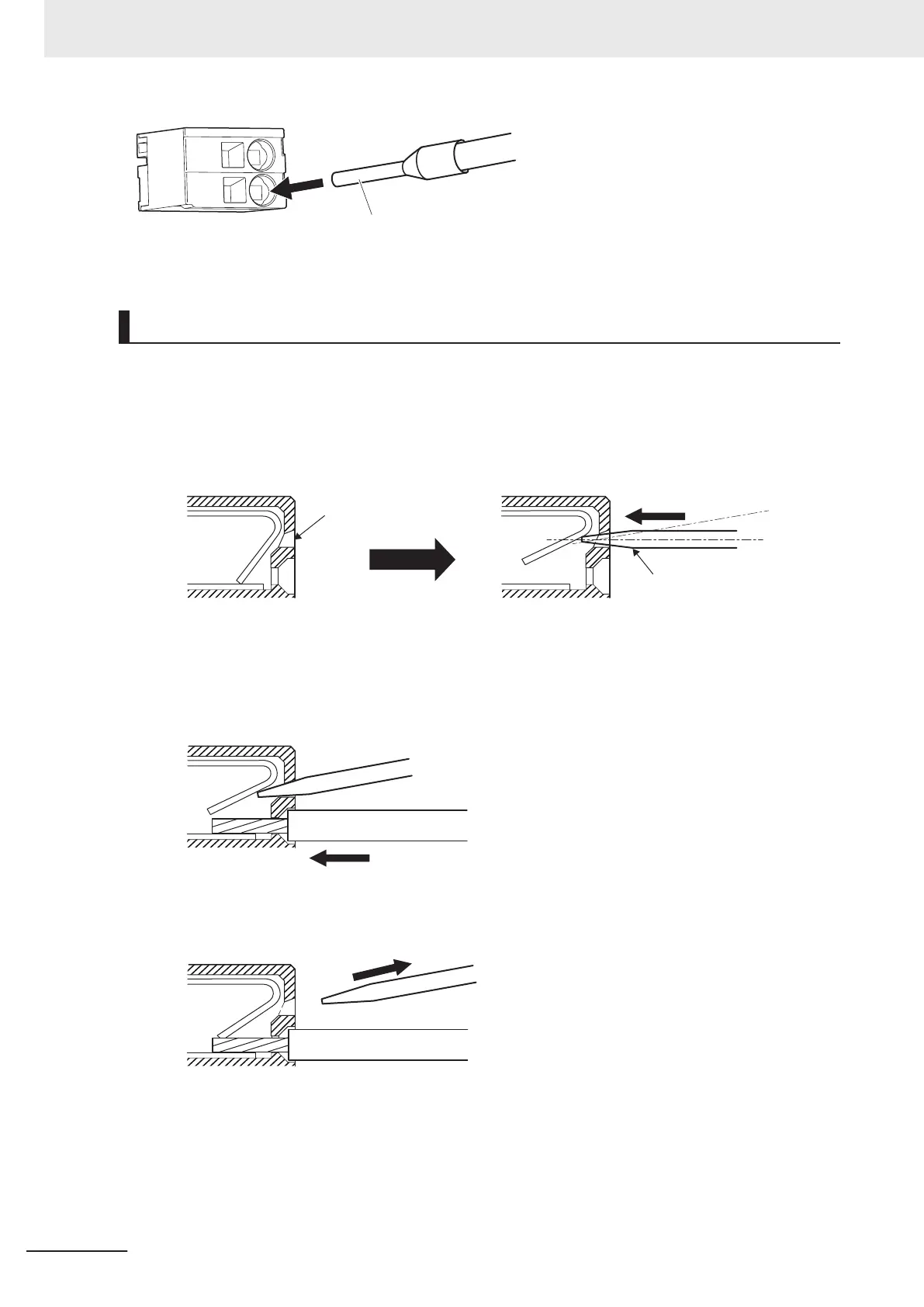

Connecting Twisted Wires/Solid Wires
Use the following procedure to connect the twisted wires or solid wires to the terminal block.
1 Press a flat-blade screwdriver straight into the release hole.
If you press in the screwdriver correctly
, you will feel the spring in the release hole, and the
screw driver will begin to incline.
Release hole
Flat-blade screwdriver
1
2 Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the
solid wire into the terminal hole.
Insert the twisted wire or the solid wire until the stripped portion is no longer visible to prevent
shorting.
2
Twisted wire/Solid wire
3 Remove the flat-blade screwdriver from the release hole.
3
After you make a connection, make sure that the twisted wire or the solid wire is securely connected to
the terminal block.
5 Wiring
5-16
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
