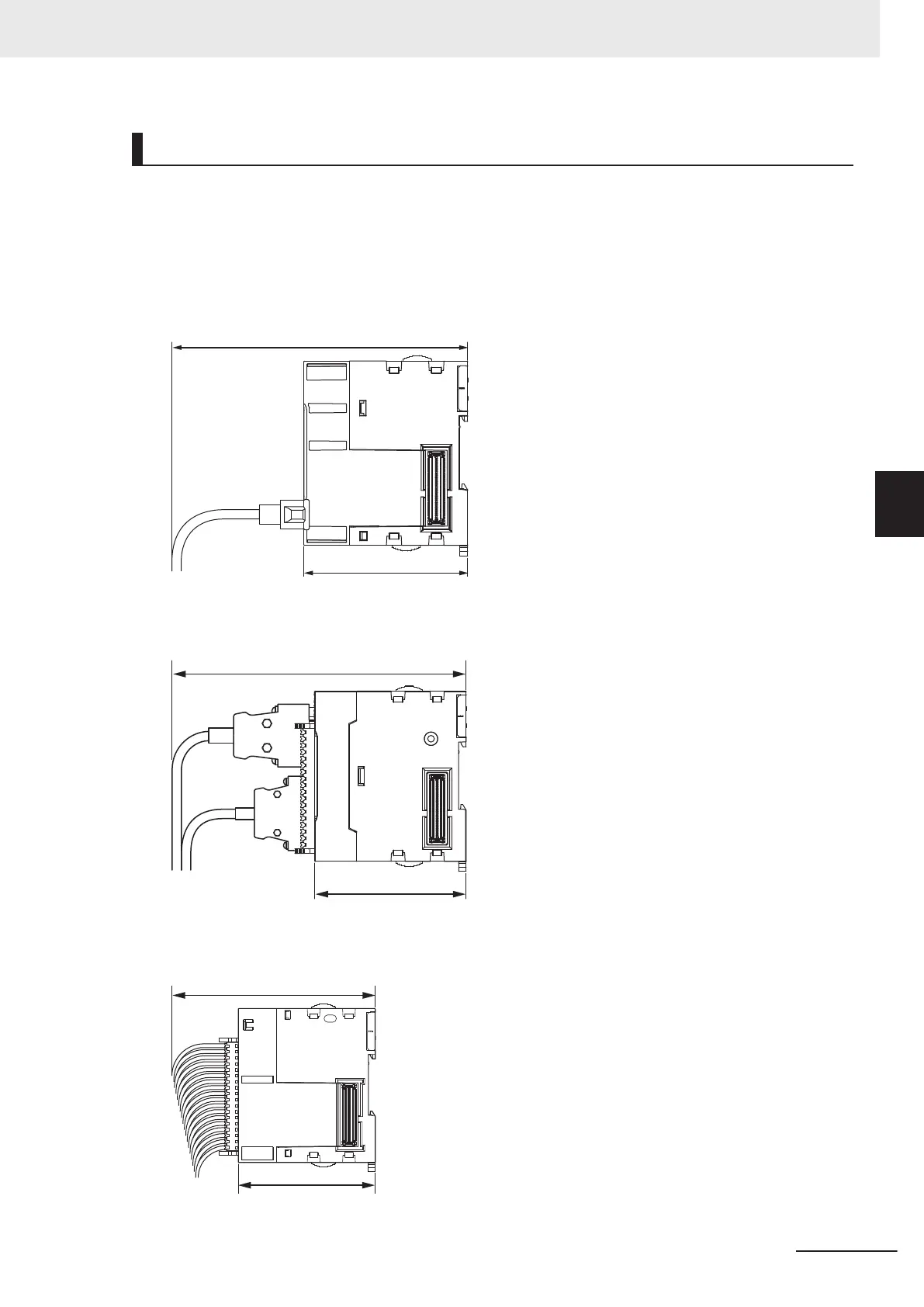

Installation Height
The installation height of a CK3M-series Controller is 80.0 mm.
When cables are connected (such as a connecting cable to Support Software, an encoder connection
cable, or an amplifier connection cable, etc.), however
, even greater height is required. Allow sufficient
depth in the control panel containing the Controller.

For CK3M-series CPU Unit
Approx. 165 to 180 mm
80mm

For CK3W-AX Unit
185mm
80mm

For CK3W-MD Unit
120 mm
80 mm
4 Installation
4-15
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-3 Mounting Units
4
4-3-5 Assembled Appearance and Dimensions
