Hub
A device that could
be a noise source
CK3M-series Programmable Multi-Axis ControllerNX-series CPU Unit
Control panel Other device
10 m min.

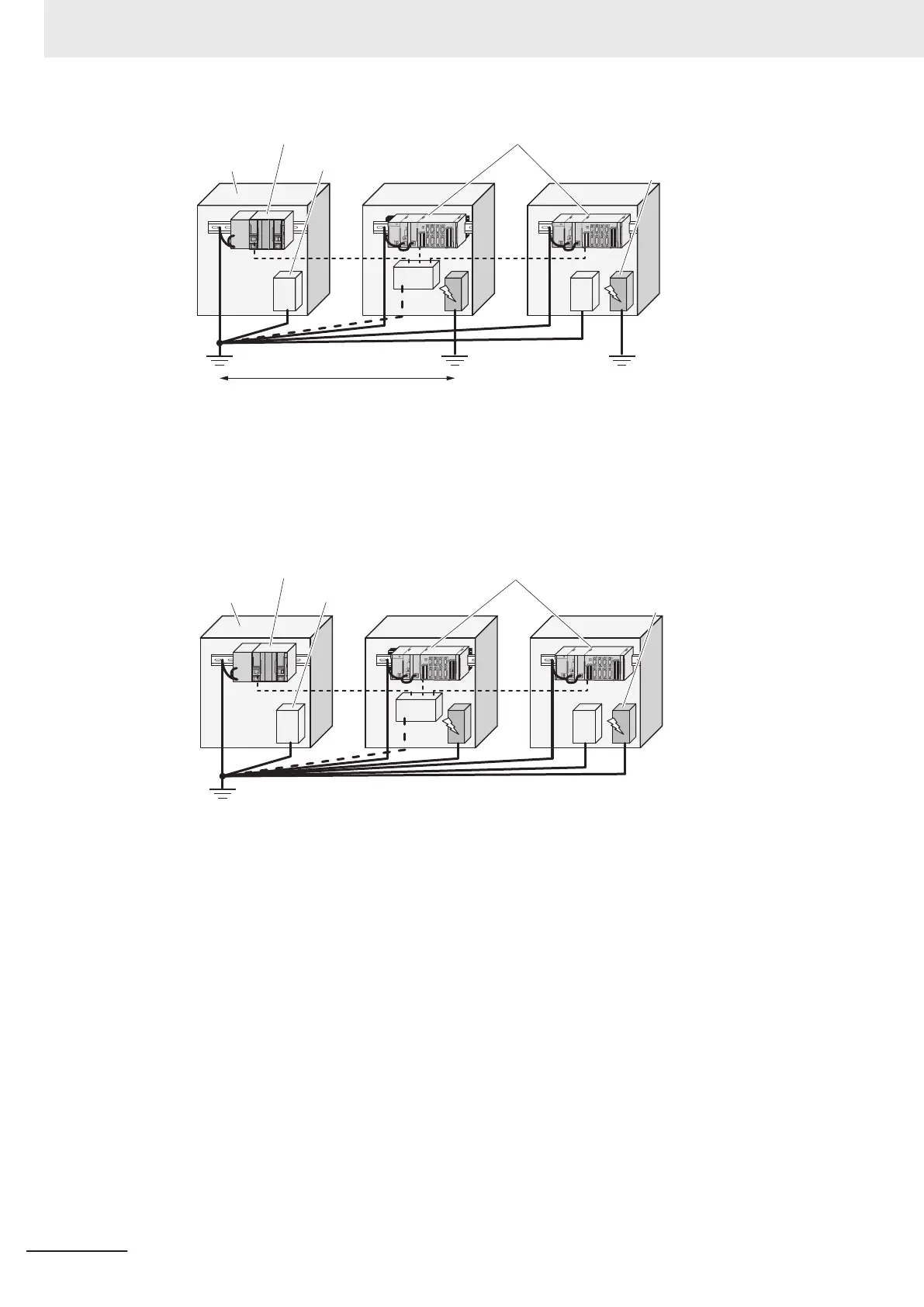

b. Installation by connecting devices and noise sources to a common earth electrode
This is an earthing method to connect the device that is connected with a communications ca-
ble, other devices, and a device that could be a noise source, to a common earth electrode.
This earthing method is not recommended, because the device that is a potential noise source
may interfere electromagnetically with other devices.
Hub
CK3M-series Programmable Multi-Axis Controller
NX-series CPU Unit
A device that could
be a noise source
Control panel Other device
Daisy Chain
This is an earthing method to connect the device that is connected with a communications cable,
other devices, and a device that could be a noise source using a daisy-chain topology to a common
earth electrode.
This earthing method is not recommended because the device that could be a noise source may
interfere electromagnetically with other devices.
4 Installation
4-26
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
