After you make a connection, make sure that the twisted wire or the solid wire is securely connected to
the terminal block.
Precautions for Safe Use
• Make sure that all wiring is correct.
•
Do not bend the cable forcibly. Doing so may break the cables.

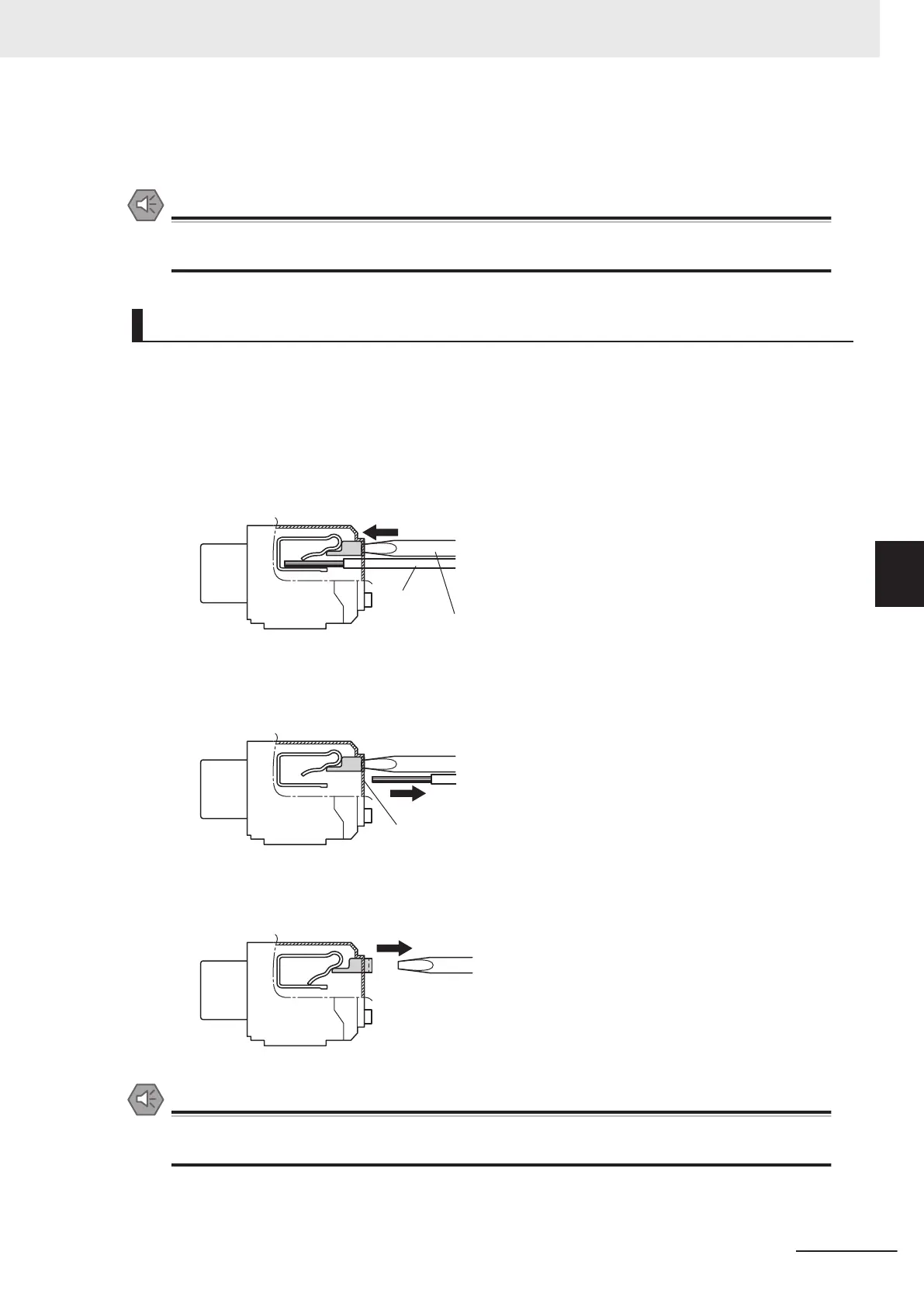

Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
If wires are secured firmly to the terminal block, release them first.
1 Press a flat-blade screwdriver straight against the release button from the terminal block front.
Flat-blade screwdriver
Wires
1
2 Leave the flat-blade screwdriver pressed against the release button and pull out the wire from
the terminal hole.
3 Pull the flat-blade screwdriver away from the release button.
Precautions for Safe Use
• Make sure that all wiring is correct.
•
Do not bend the cable forcibly. Doing so may break the cables.
5 Wiring
5-35
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-4 Digital I/O Unit Wiring
5
5-4-1 Wiring the Terminals
