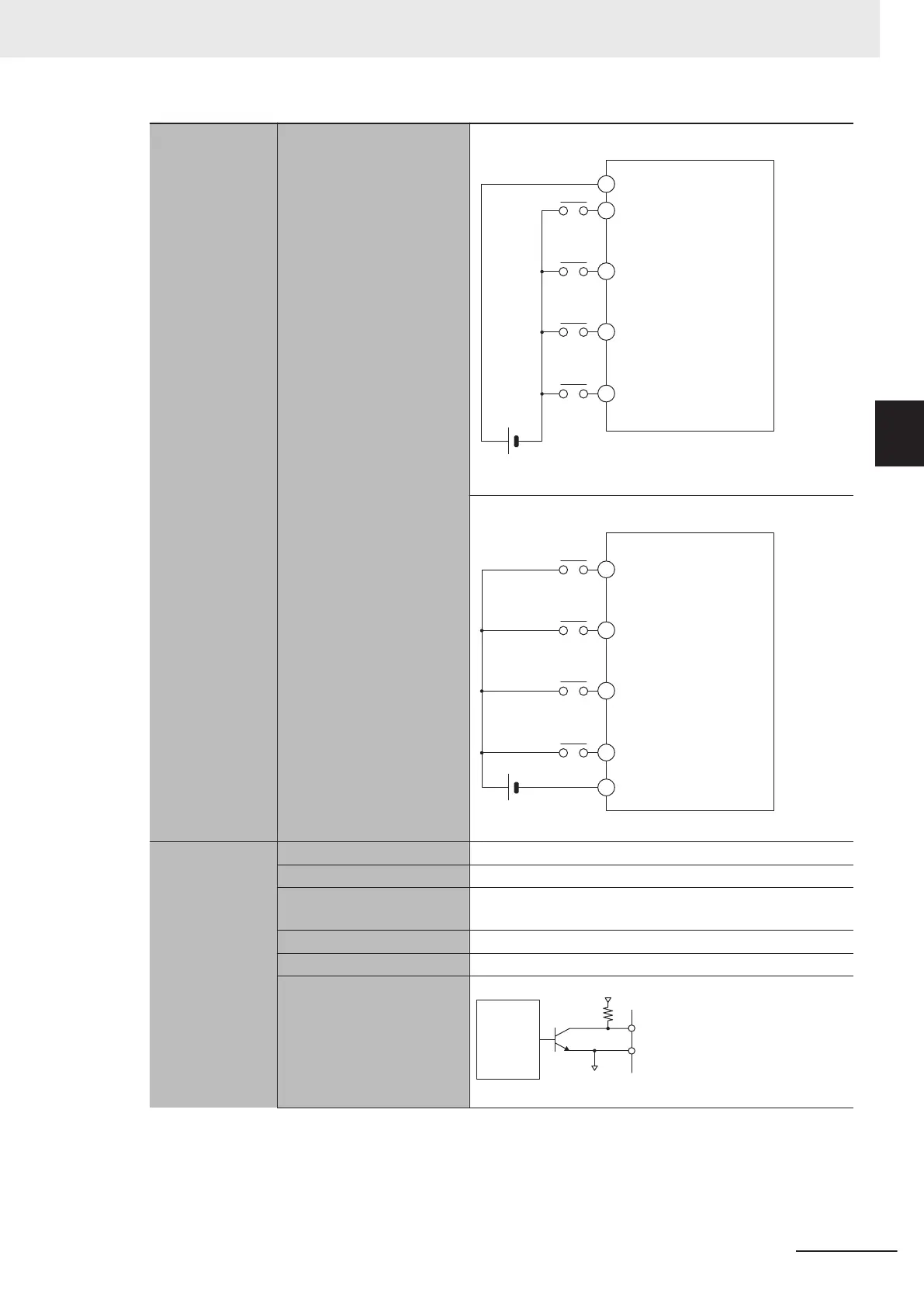

Connection diagram NPN type
V_FLAG 0 to 3
HOME 0 to 3
PLIM 0 to 3
NLIM 0 to 3
USER 0 to 3
5 to 24 VDC
PNP type
HOME 0 to 3
PLIM 0 to 3
NLIM 0 to 3
USER 0 to 3
G_FLAG 0 to 3
5 to 24 VDC
Digital Output
Specifications
Output signal EQU/Channel
Rated output voltage 5 VDC
Maximum load current
when ON
35 mA
Residual voltage when ON 0.4 V max.
Isolation method Internal circuits and not isolated
Circuit configuration
Internal
ci
rcuit
330
Ω
EQUn
COM_EQU
0 V
+5 V
3 Configuration Units
3-35
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-3 Axis Interface Unit
3
3-3-13 Flag Connection Terminal Block Specifications
