Omron CK5M-CPU 1 Series Connection Guide

4

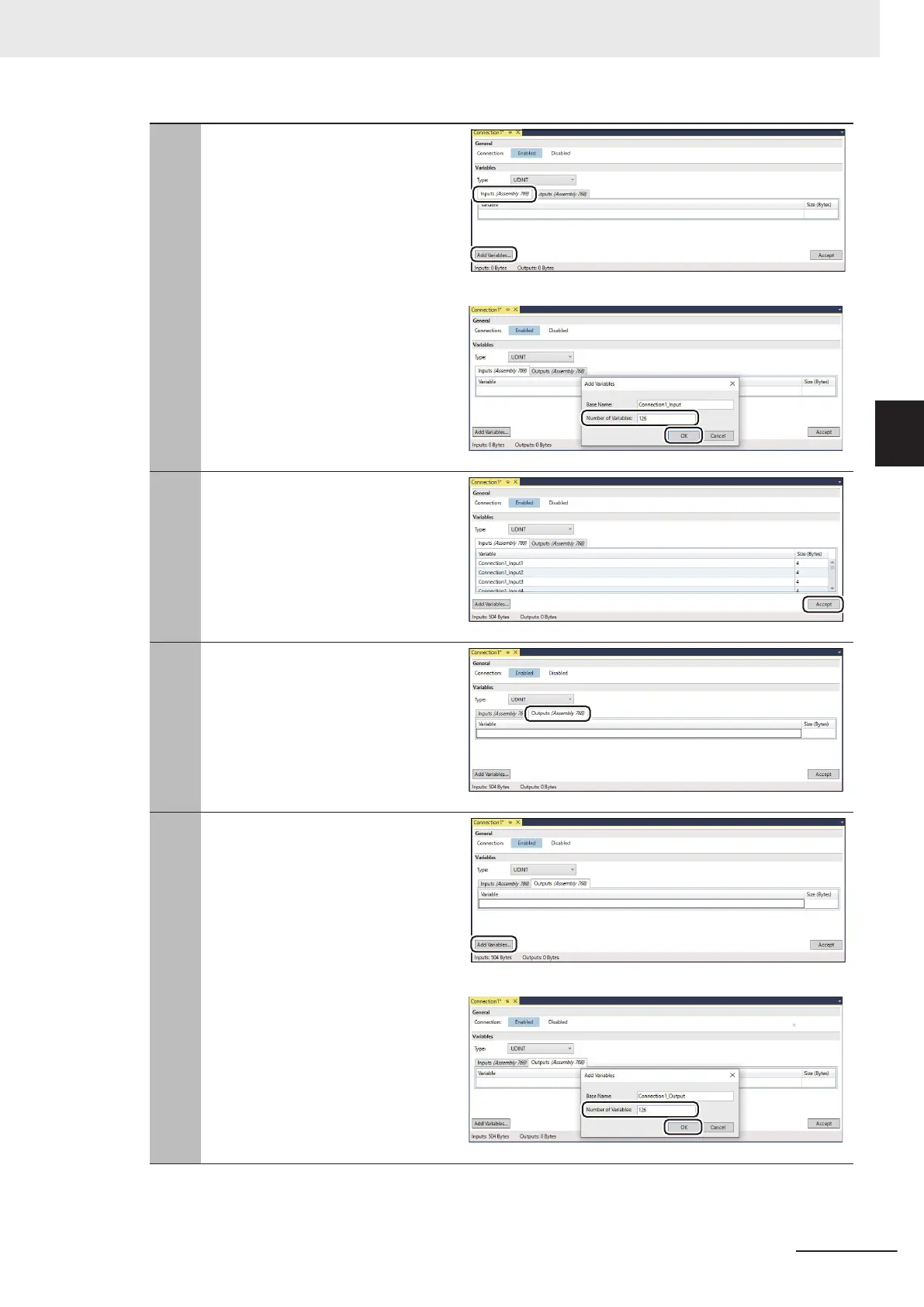

Add variables as many as the specified
number to Connection 1 (Input).
Select the Inputs tab page for
Connection1. Click the Add V
ariables
button, specify the number of variables
to add, and click the
OK button.
5
Checking and completing Connection 1
(Input)
Check the size of the Connection1 in-
put settings and click the
Accept but-
ton.
6
Selecting Connection 1 (Output)
Select the Outputs tab page for
Connection1.
7
Add variables as many as the specified
number to Connection 1 (Output).
Select the Add V
ariables
button for
Connection1, specify the number of
variables to add, and click the OK but-
ton.
3 EtherNet/IP Connection Procedures
3-17
CK3E/CK3M/CK5M Series EtherNet/IP Connection Guide (O903)
3-4 PMAC EtherNet/IP Settings
3
3-4-1 Setting Connection 1
