The CPM1A can be easily built into a wide
array of machines or control panels. For
example, you can use the CPM1A to
control a few more I/O points on existing
lines without having to install a new
control panel. Just install the CPM1A in
available space to control only the required
number of I/O. The CPM1A was born to
reduce waste in the factories by effectively
using valuable space.
Flexible Control and Plenty of Power
in the Minimum Body Size
Select Units to Control from 10 to
100 I/O Points
CPUs are available with from 10 to 40 I/O points and, in
combination with Expansion I/O Units, can be used to
control a total of from 10 to 100 points.
Only 30- and 40-point
CPUs support
Expansion
I/O Units. Up to three
Expansion I/O Units
can be connected.
CPM1A-20EDR1/-20EDT(1)
CPM1A-8ED/-8ER/8ET(1)
Easy Connection to Programmable
Terminals
An optional Communications Adapter supports Host Link
or NT Link connections for high-speed communications
with OMRON PTs.
CQM1-CIF02
Connecting Cable
Hand-held Programming Consoles are
ideal for onsite startup and adjustments.
Programming Consoles
Full Functionality in
a Compact Body
Plenty of programming capacity and a large instruction
set handle even complex control operations.
User memory: 2,048 words
Data memory: 1,024 words
Timers/Counters: 128
High-speed Execution
LOAD instructions execute at 1.7 µs and MOVE
instructions execute at 16.3 µs for fast program execution.
High-speed scanning is thus possible even with large
programs. Interrupt inputs and quick-response inputs can
be used to handle high-speed pulses that are too fast for
the scan time.
CQM1-PRO01-E
Basic instructions: 14
Special instructions: 79
Analog adjustments: 2

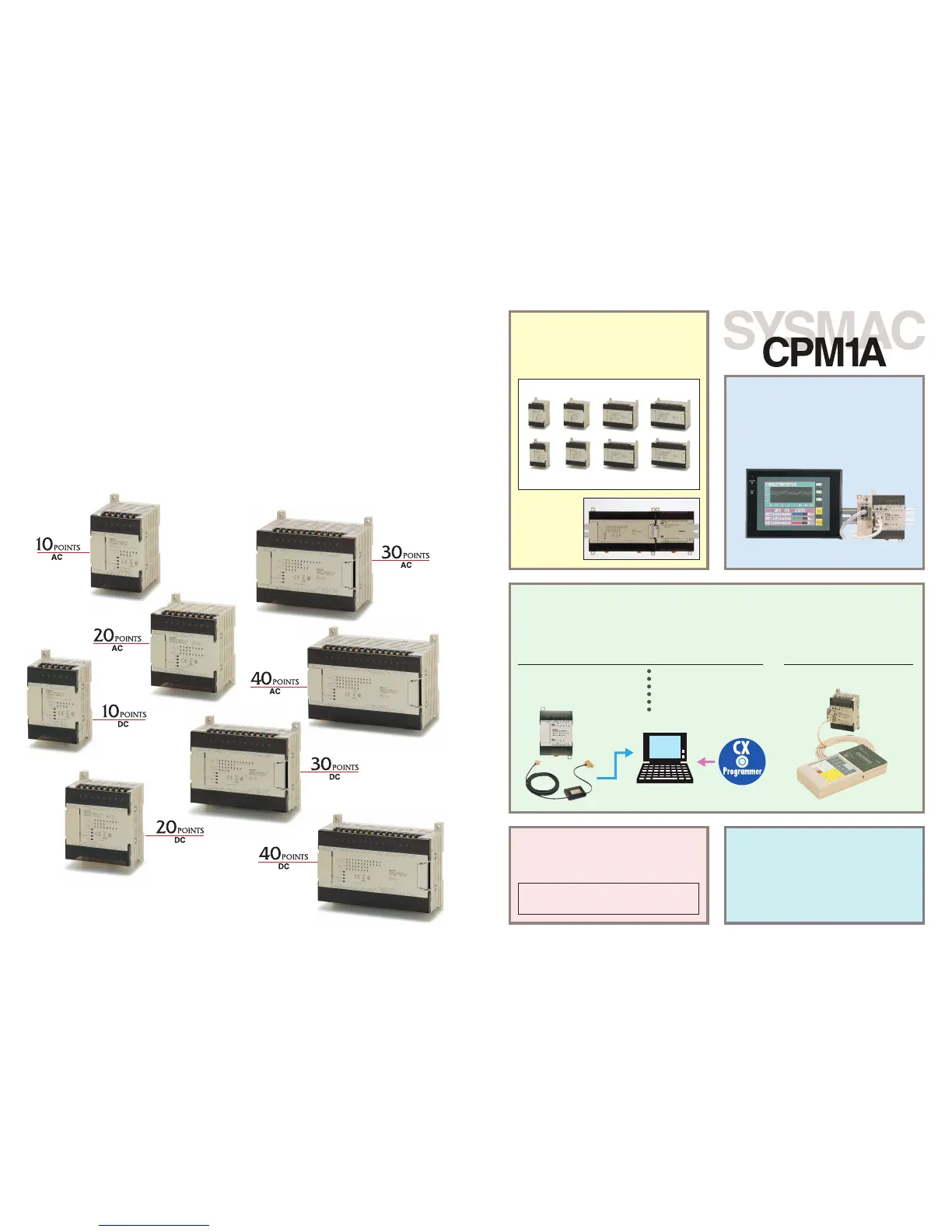

CPUs with AC Power Supplies (Relay Output)
10 pts 20 pts 30 pts 40 pts
10 pts 20 pts 30 pts 40 pts
CPUs with DC Power Supplies (Relay and Transistor Output)
SYSMAC
CPM1A
Windows 95, 98, Me, NT 4.0,
2000, or XP
Windows-based Support Software
The Windows-based CX-Programmer Support Software reduces software
development time and provides powerful monitoring and debugging
functions. Other Windows applications can be used and the programming
enviroment has been greatly improved.
Reduce Software Development Time with
Windows-based CX-Programmer
CX-Programmer's many monitoring
and debugging functions provide
powerful support for multiple program
development.
User-friendly operations
Powerful display/monitoring functions
Powerful debugging functions
Remote programming and monitoring
Maintenance functions
Data compatibility with Windows
applications
Expansion I/O Unit
