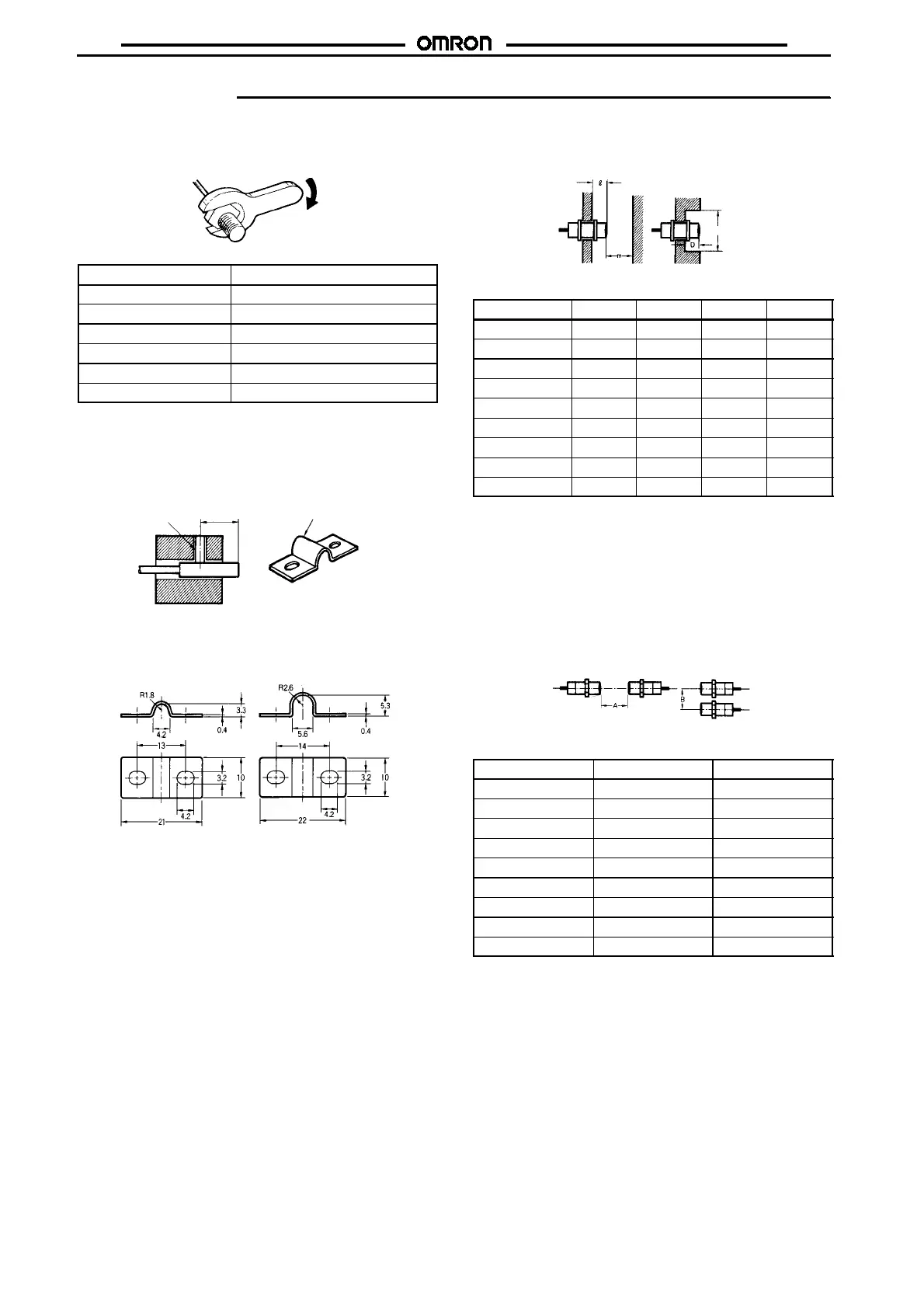

Omron E2C - Precautions and Interference; Mounting Precautions; Mutual Interference

E2C
E2C
22
Precautions
Mounting
Do not apply excessive torque to the mounting nuts of the E2C-X or
E2C-C20MA. Be sure to tighten each nut with a toothed washer.
Model Tightening torque
E2C-X1A
10 kgf
S
cm {0.98 N
S
m}
E2C-X1R5A
20 kgf
S
cm {2.0 N
S
m}
E2C-X2A
60 kgf
S
cm {5.9 N
S
m}
E2C-X5A
150 kgf
S
cm {15 N
S
m}
E2C-X10A
400 kgf
S
cm {39 N
S
m}
E2C-X20MA
150 kgf
S
cm {15 N
S
m}
Note:
Apply above tightening torque to each nut tightened with a
toothed washer.
Tightenthe screwto a torqueof 2kgf
S
cm (0.2N
S
m)max. tosecure
the E2C non-screw models.
M3 set screw hole
7to11.5mm
Y92E-F3R5 Mounting Bracket
(with 3.5 dia. holes)
(Sold separately)
The Y92E-F5R4 with 5.4-dia.
holes is also sold separately.
Dimensions
Y92E-F3R5 Y92E-F5R4
Effects of Surrounding Metal
WhenmountingtheE2C within a metal panel, ensurethat the clear-
ances given in the following table are maintained.
ddia.
(mm)
Models
!
d D m
E2C-CR5B 2 6 2 1.5
E2C-CR8 0 (3.5) 0 2.4
E2C-X1A 0 (5) 0 3
E2C-C1A 0 (5.4) 0 3
E2C-X1R5A 0 (8) 0 4.5
E2C-X2A 0 (12) 0 6
E2C-X5A 0 (18) 0 15
E2C-X10A 0 (30) 0 30
E2C-C20MA 25 120 40 60
Note:
Figures in parentheses indicate diameters of shielded
models.
Mutual Interference
When mounting more than two E2Cs face to face or side by side,
ensure that the minimum distances given in the following table are
maintained. Except for the E2C-CR5B, E2C-C20MA, and
E2C-G
j
4A, mutual interference can be prevented with the setting
of the cable length selector of each model. This, however, changes
coilcharacteristicsandtheratingsmay notbeensuredat sometem-
peratures or sensing distances. Be sure that the Sensors operate
normally after cable length change.
(mm)
Model
A B
E2C-CR5B 20 15
E2C-CR8 20 15
E2C-X1A 20 15
E2C-C1A 20 15
E2C-X1R5A 20 15
E2C-X2A 30 20
E2C-X5A 50 35
E2C-X10A 100 70
E2C-C20MA 300 200
Note:
The above values are possible with the differential travel of
each model set to 5%.
