E5jJ
E5jJ
10

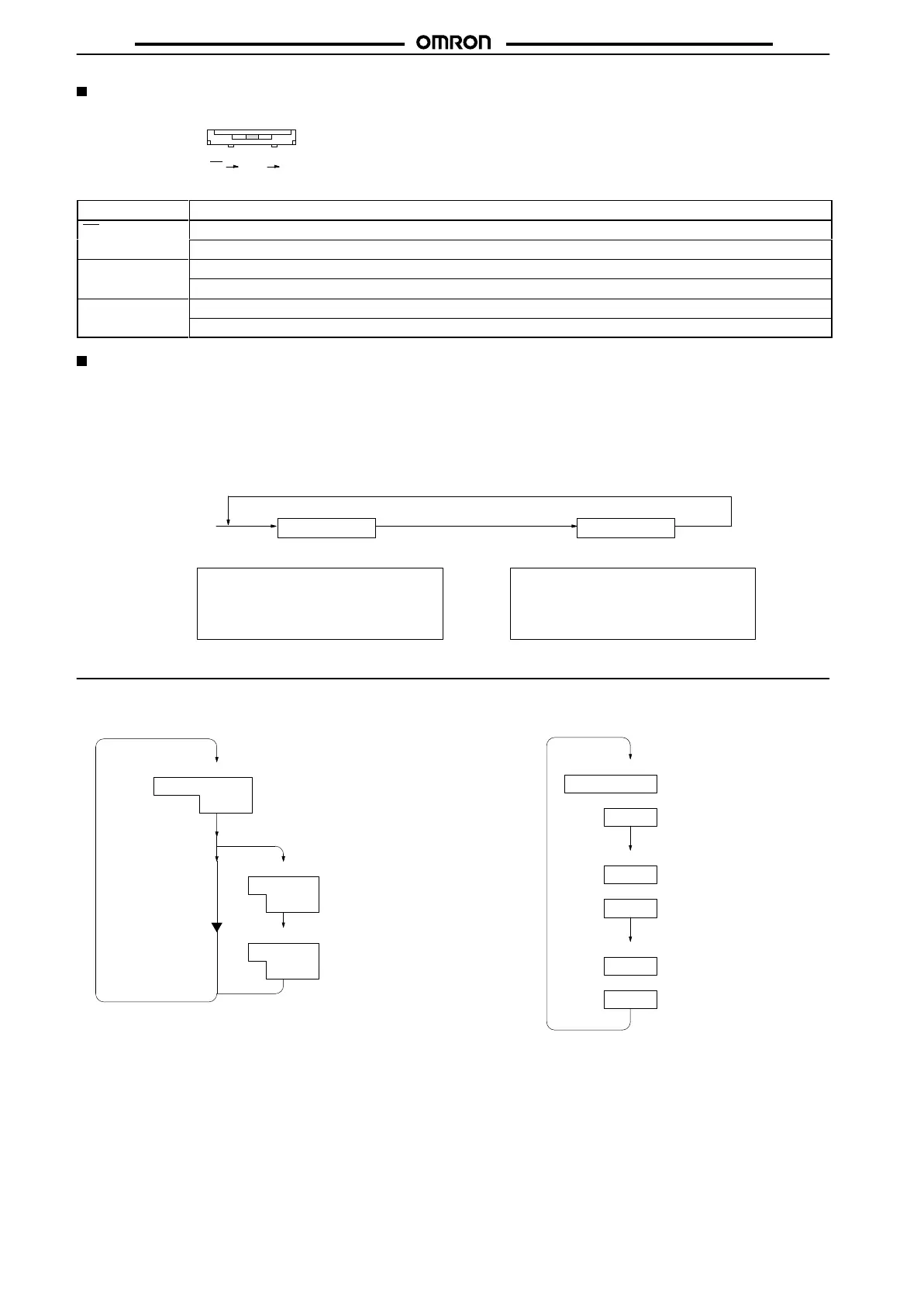

Key Protection Switch (PROTECT)
The
key protection switch is factory-set to the OFF position.
SP OFF ALL
T
o write-protect set values, the settings of the protect modes must be changed.
Mode Protection
SP
All set values other than the set point will be write-protected.
The Level Key will not be valid. The Down and Up Keys will not be valid except set point setting.
OFF
No key protection will be valid.
All keys will work normally.
ALL
All set values will be write-protected.
The Level, Down, and Up Keys will not be valid.
Inputting Parameters
The
temperature Controller has two display levels 0 and 1, in which only specific parameters can be set.
Level 0 is the initial level and is auto
-
matically
entered upon power application. T
o change the mode to set or change a dif
ferent
group of parameters, hold down the Level Key for
1 second minimum. The display level mode changes as shown below
. Actual displays vary with models and switch settings. If a display
does
not appear as expected, check your switch settings.
Besides
the functions explained here, the T
emperature Controller incorporates an alarm hysteresis function, set point limit function,
automatic
return
of display
mode function, input shift function, and event input 2 type selection (incorporated by the E5AJ and E5EJ only). Refer to the
E5
j
J
Operation Manual (Z103)
, which can be obtained from your OMRON representative, for details on these functions.
–––––
–––––
Level 0
Power ON
Level 1
Press the Level Key. Press the Level Key.
Process value, set point setting,
alarm 1 and 2
Output value display
, hysteresis, control
period, SP0/SP1 settings, heater current
value display
, heater burnout alarm value,
proportional band, integral time, derivative
time, manual reset value
Level 0
E5CJ
SV
PV
Process
value
(Set point setting)
0
PV
Models with alarm
0
al1
(See note 1)
Alarm 1 setting
SV
0
al2
PV
(See note 2)
Alarm 2 setting
SV
Press a
Press a
Press a
Note: 1. Nothing is displayed if ALM1 is set to 0 (i.e., no alarm
function is ON).
2. Nothing is displayed if ALM2 is set to 0 (i.e., no alarm
function is ON).
E5AJ/E5BJ/E5EJ
Process value
0
(Set point setting)
Press a
(See note 1)
Alarm 1 setting
(See note 2)
Alarm 2 setting
0
al2
0
Press a
Press a
al1
SV
PV
SV
PV
SV
PV
Note: 1. Nothing is displayed if ALM1 is set to 0 (i.e., no alarm
function is ON).
2. Nothing is displayed if ALM2 is set to 0 (i.e., no alarm
function is ON).
