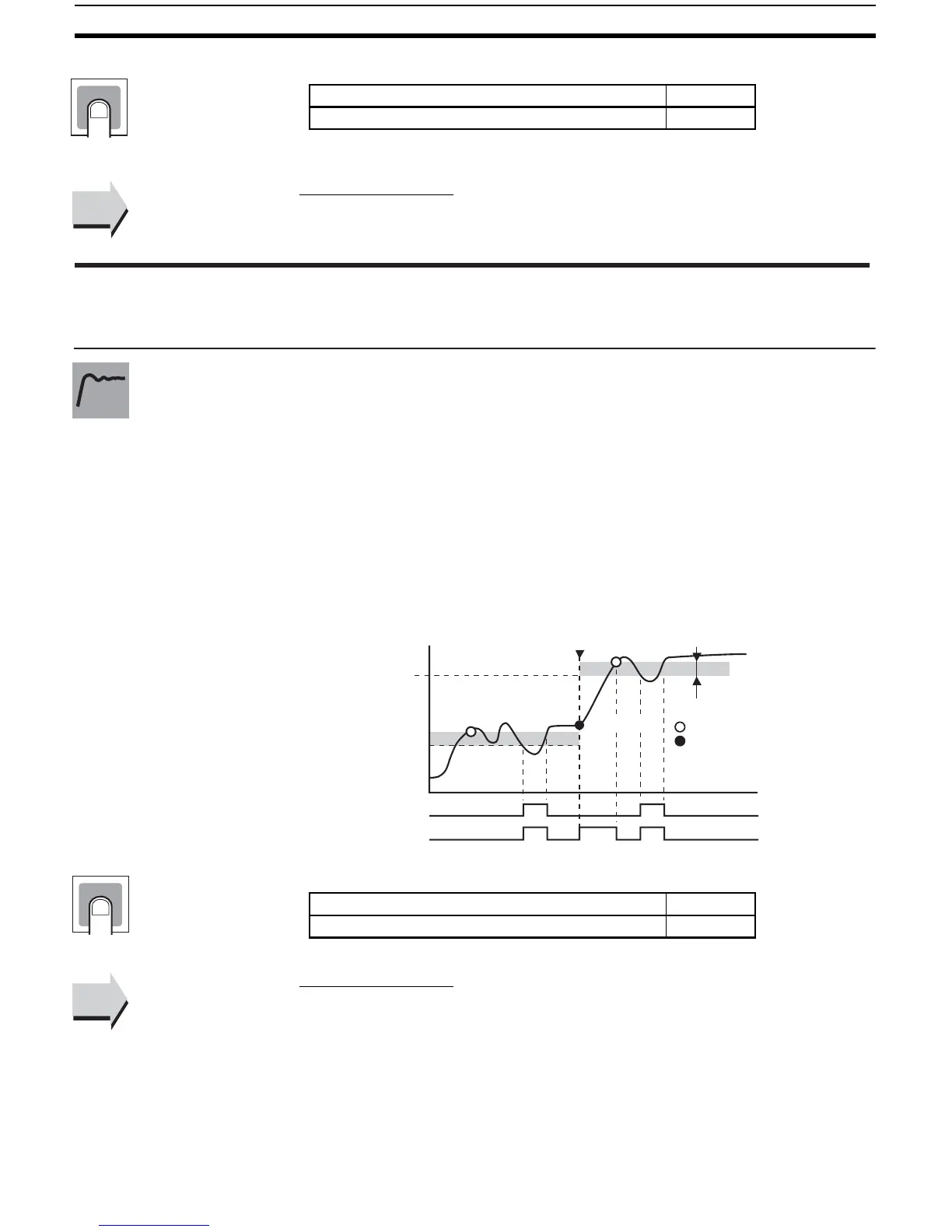

133
Advanced Function Setting Level Section 5-7
Related Parameters
Set point during SP ramp (operation level): Page 100
SP ramp set value (adjustment lev
el): Page 116
This parameter selects the conditions for enabling reset after the standby
sequence of the alarm has been canceled.
Output is turned OFF when switching to the initial setting level, communi-
cations setting level, or advanced function setting level.
Condition A
Control started (including power ON), and set point, alarm value (alarm
value upper/lower limit), or input shift value (upper/lower-limit temperature
input shift value) changed.
Condition B
Power ON
The following example shows the reset action when the alarm type is
lower-limit alarm with standby sequence.
Related Parameters
Alarm 1 to 3 type (initial setting level): Page 124 to 126
Alarm 1 to 3 latch (advanced function setting level): Page 139
Setting range Default
s: EU/s, m: EU/min m
See
See
Setting
rest Standby Sequence Reset
The alarm 1/2/3 type must be set to a
type with a standby sequence.
Setting range Default
a: Condition A, b: Condition B a
Function
Alarm
(after change)
Alarm
SP change
Condition A only
Condition A
only
Alarm hysteresis
: Standby sequence canceled
: Standby sequence reset
Alarm output:
Condition A
Alarm output:
Condition B
Setting
See
See
