6 Programless Communications
E5C-T Digital Temperature Controllers Programmable Type Communications Manual (H186)
6-5 Connecting to CJ-series PLCs
6
6-5-1 Configuration and Procedure
6-5 Connecting to CJ-series PLCs

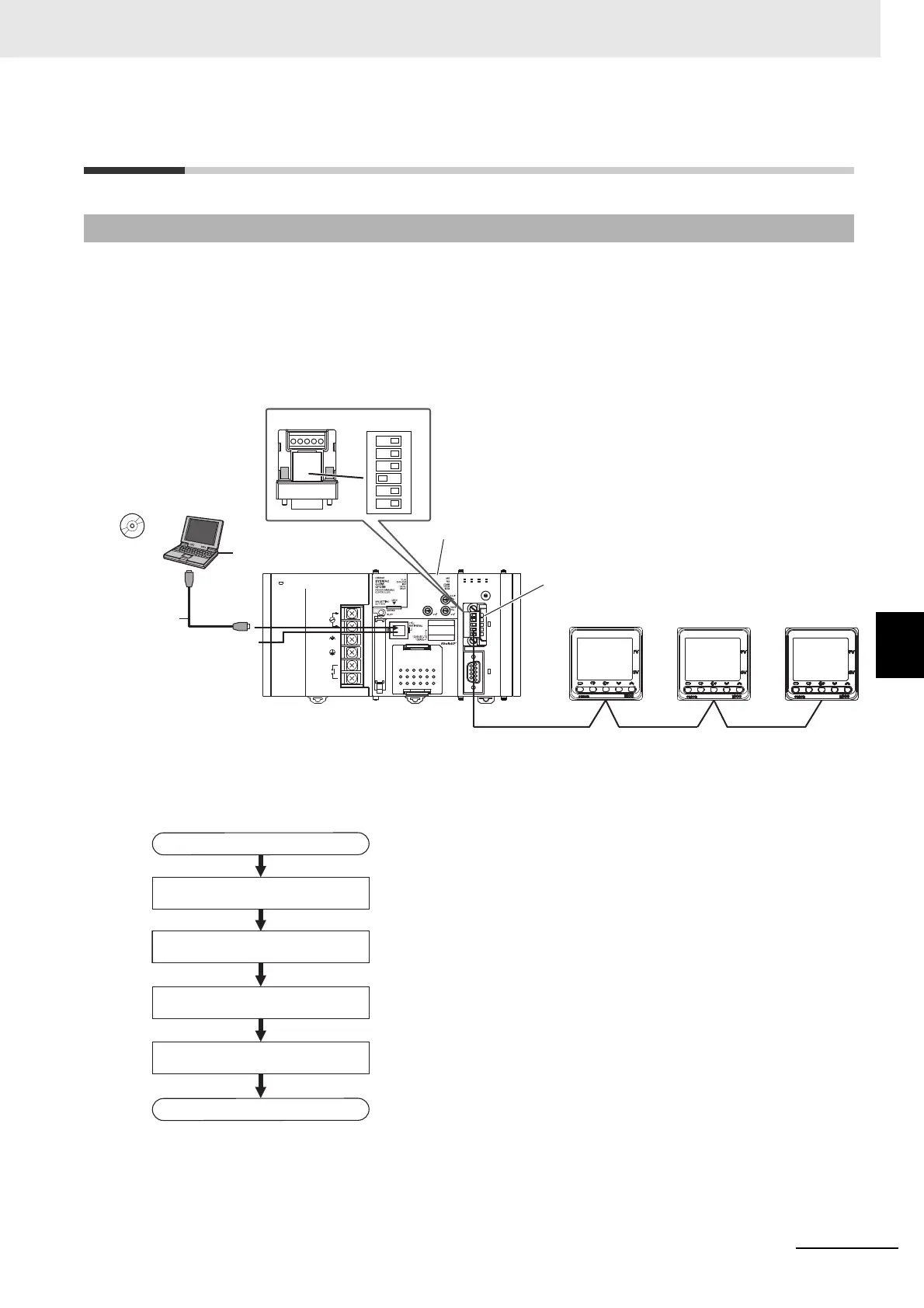

The following configuration is used as an example in giving the setup and application procedures for
programless communications.
• All of the E5CC-T Controllers must be the same model. (Copying parameter settings is not possible if
the models are different.)
• D0000 to D0209 are used in the PLC memory. The default E5CC-T parameter allocations are used.
• A commercially available USB2.0, A/B cable is used.
Note: Refer to the CX-Programmer Operation Manual (Cat. No. W446) for information on installing the
CX-Programmer and USB driver.
The application procedure is given below.
6-5-1 Configuration and Procedure
POWER
PA205R
DC24V
AC240V
OUTPUT
RUN
INPUT
AC100-240V
L2/N
L1
ERC
RUN
RD2
SCU21-V1
RD1
SD2
RDY
NO.
UNIT
ERH
SD1
PORT1
PORT2
0
1
2
3
4
5
6
7
8
9
A
B
C
RDA-
RDB+
SDA-
SDB+
FG
25
0
C
25
0
C
25
0
C
E5CC-T
No.0
E5CC-T
No.1
E5CC-T
No.2
25
0
C
DIP switchCJ1W-CIF11
RS-422A Converter
CJ1W-CIF11
RS-485
1
2
3
4
5
6
O
N
Commercially
available USB cable
USB port
CJ2M CPU Unit
CJ2M-CPU@@
Serial Communications Unit
CJ1W-SCU21-V1
Peripheral (USB) port
IBM PC/AT or compatible
CX-Programmer
Support Software
START
Set the switches and wire the system.
Set the switches on the CJ1W-CIF11 and wire it to the E5CC-T Controllers.
E5@C-T Controller Setup Set up programless communications in the E5CC-T Controllers.
Check operation. Use the CX-Programmer to confirm that programless communications are operating.
Set up the PLC. Use the CX-Programmer to set up communications on the CJ1W-SCU21-V1
to enable communicating with the E5CC-T Controllers.
END
