Omron E5C-T Series Communications Manual

6 Programless Communications
6 - 40
E5C-T Digital Temperature Controllers Programmable Type Communications Manual (H186)
6-6 Connecting to MELSEC Q-series
PLCs
The following configuration is used as an example in giving the setup and application procedures for
programless communications.
• All of the E5CC-T Controllers must be the same model. (Copying parameter settings is not possible if
the models are different.)
• D0 to D209 are used in the PLC memory. The default E5CC-T parameter allocations are used.
• A commercially available USB2.0, A/B cable is used.
Note: Refer to the GX Works2 Installation Instructions (BCN-P5713 ) for information on installing the GX Works2
and to the GX Works2 Version 1 Operating Manual (Common) (SH-080779ENG) for information on installing
the USB driver.
The application procedure is given below.

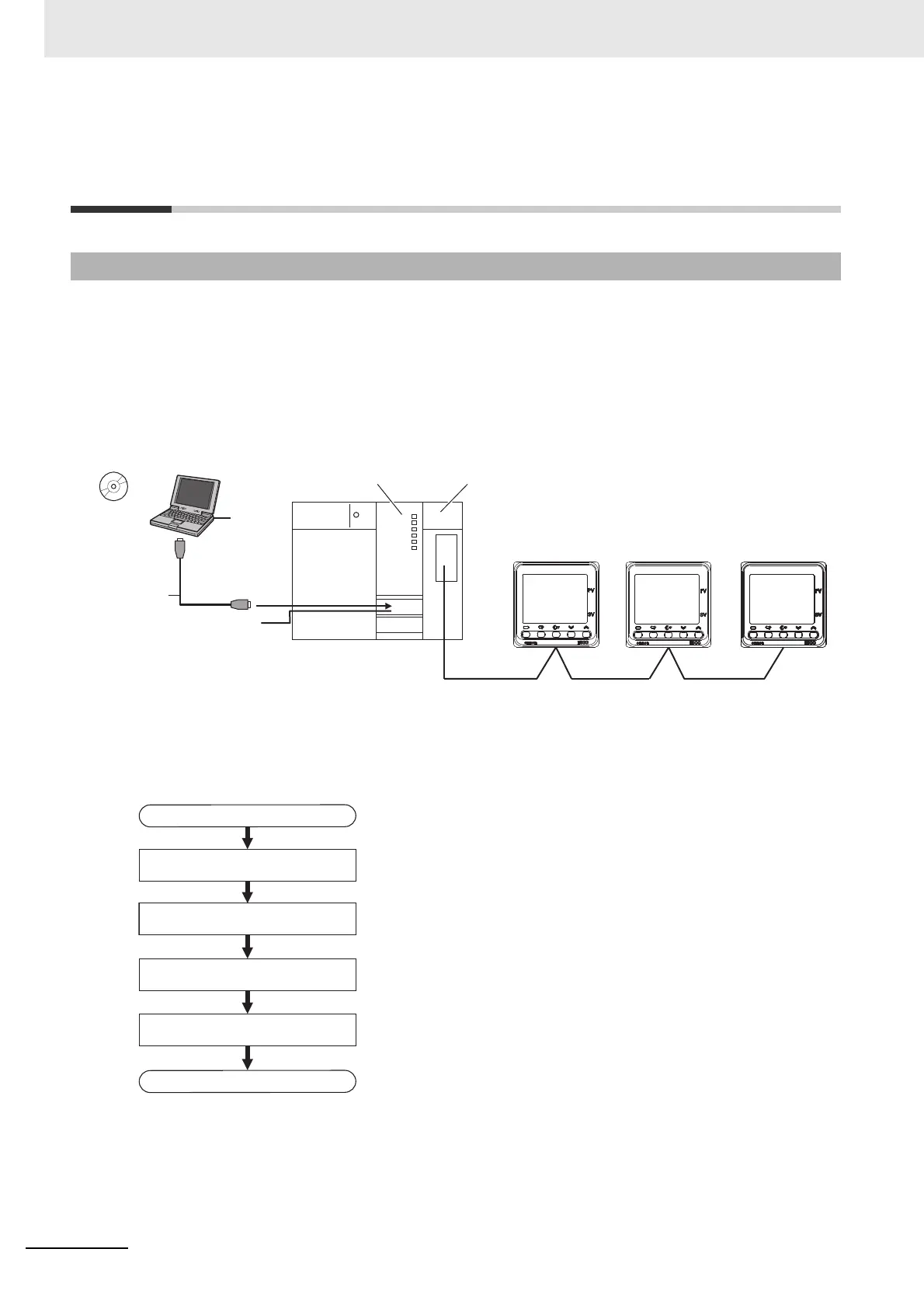

6-6-1 Configuration and Procedure
25
0
C
25
0
C
25
0
C
E5CC-T
No.0
E5CC-T
No.1
E5CC-T
No.2
25
0
C
RS-485
USB port
USB connector
IBM PC/AT or compatible
QJ71C24N-R4
Q@@CPU
GX Works2
Programming
Software
Commercially
available USB
cable
START
Wire the network.
Wire the QJ71C24N-R4 to the E5CC-T Controllers.
E5@C-T Controller Setup Set up programless communications in the E5CC-T Controllers.
Check operation. Use GX Works2 to confirm that programless communications are operating.
Set up the PLC. Use GX Works2 to set up communications on the QJ71C24N-R4-V1 to enable
communicating with the E5CC-T Controllers.
END
