4 Basic Operation
E5@C-T Digital Temperature Controllers User’s Manual (H185)
4-7 Setting Programs
4
4-7-2 Program Patterns
z Starting Point = Set SP: Segment 1 Is Starting Segment (Segment 0 = Step
Operation)
For details on program patterns, refer to A-8 Setting Levels Diagram.

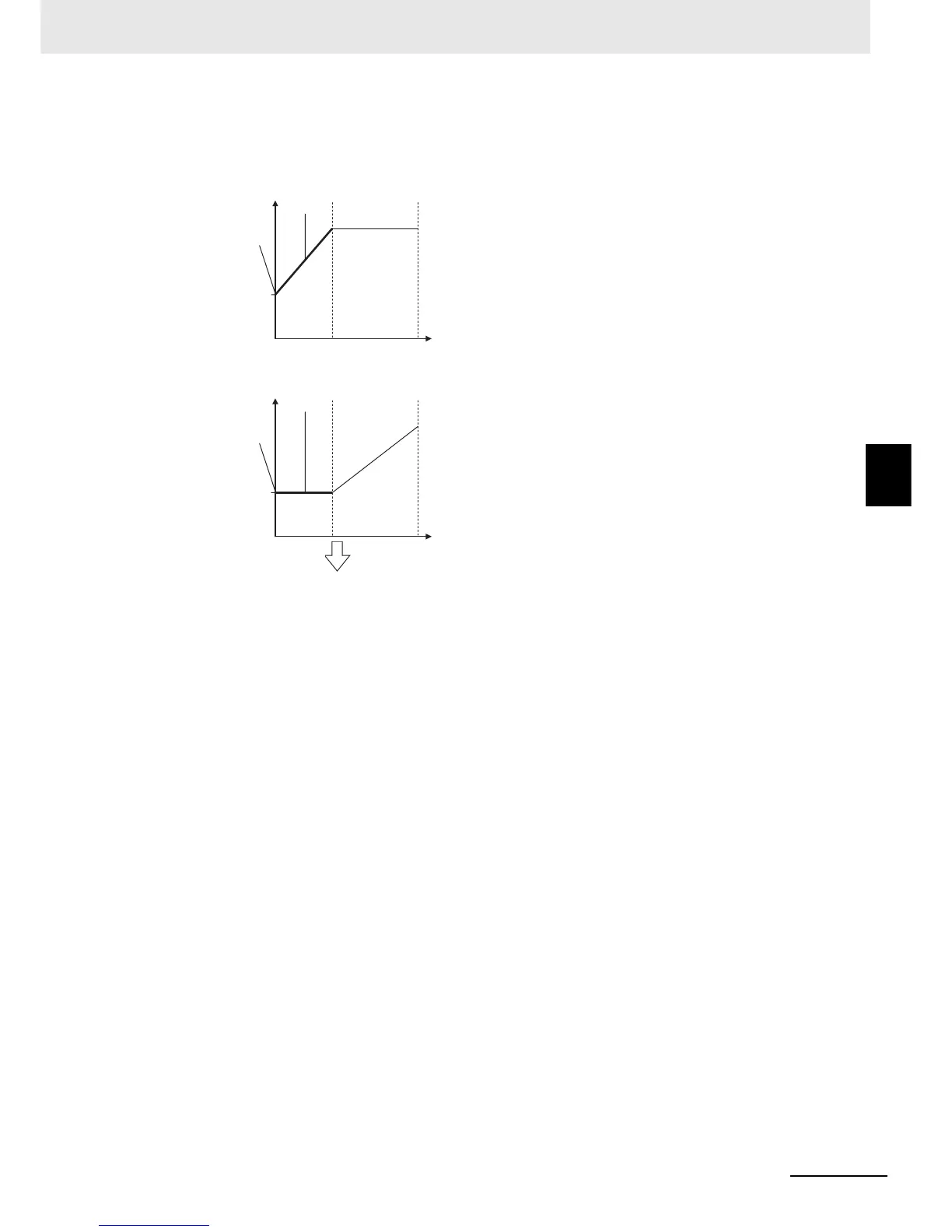

Starting Point Is PV and Segment Is Ramp
Starting Point Is PV and Segment Is Soak
rtsm (Reset Operation) is set as follows:
• Reset Operation = Stop control
• Either step time or rate of rise programming
SP
Time
Segment 2Segment 1
Segment 0
Ramp
50°C
SP
Time
Segment 2Segment 1
Segment 0
Soak
50°C
