5 Advanced Operations

5 - 84

E5@C-T Digital Temperature Controllers User’s Manual (H185)

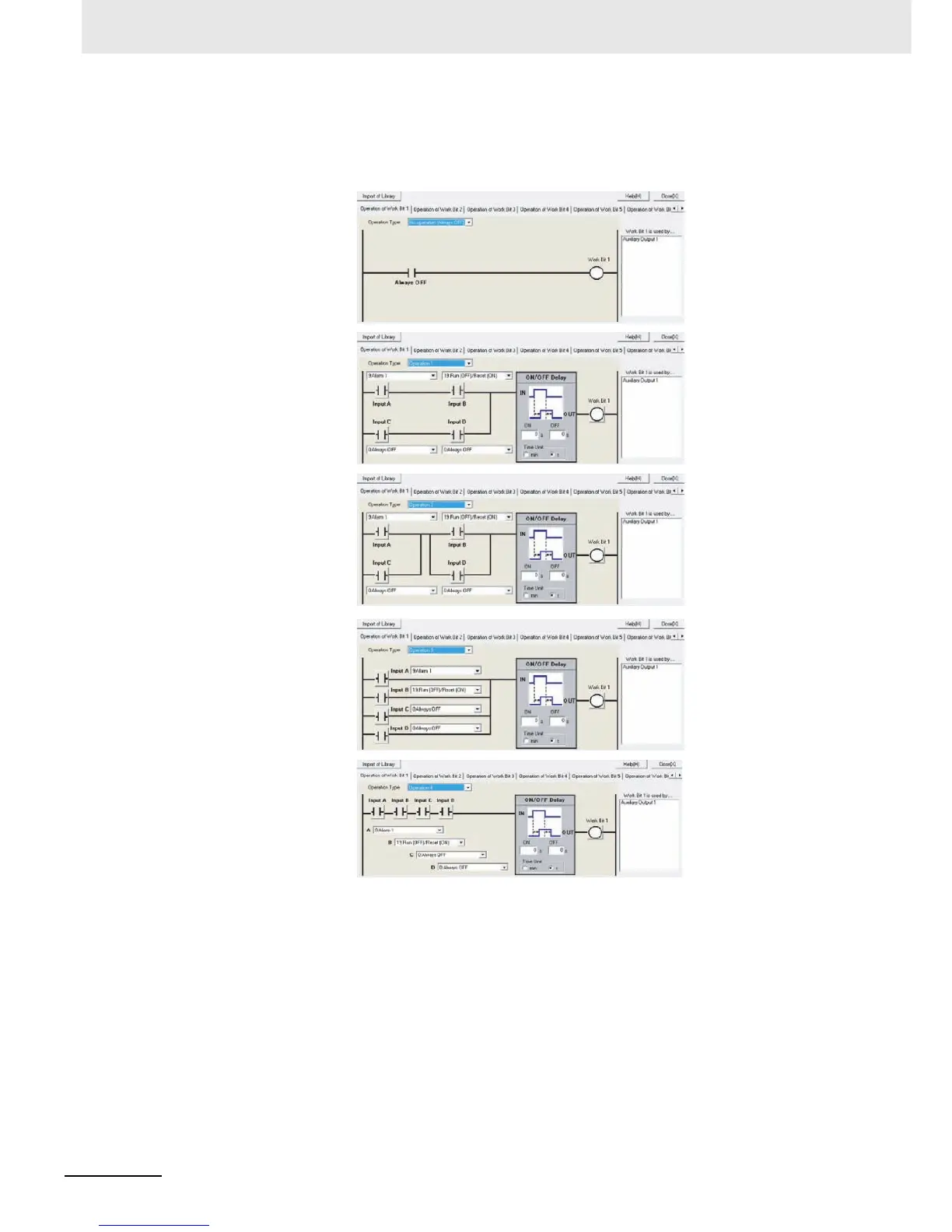

(3) Selecting the Operation Type

From one to four operations are supported. If work bits are not to be used, set them to No

operation (Always OFF) (the default).

• No operation

(Always OFF)

• Operation 1

(A and B) or (C and D)

When conditions A

and B or conditions C

and D are satisfied

• Operation 2

(A or C) and (B or D)

When condition A or C

and condition B or D

are satisfied

• Operation 3

A or B or C or D

When condition A, B,

C or D is satisfied

• Operation 4

A and B and C and D

When conditions A, B,

C and D are all

satisfied
