Wiring
Wire the controllers as follows for RS-485 communication.

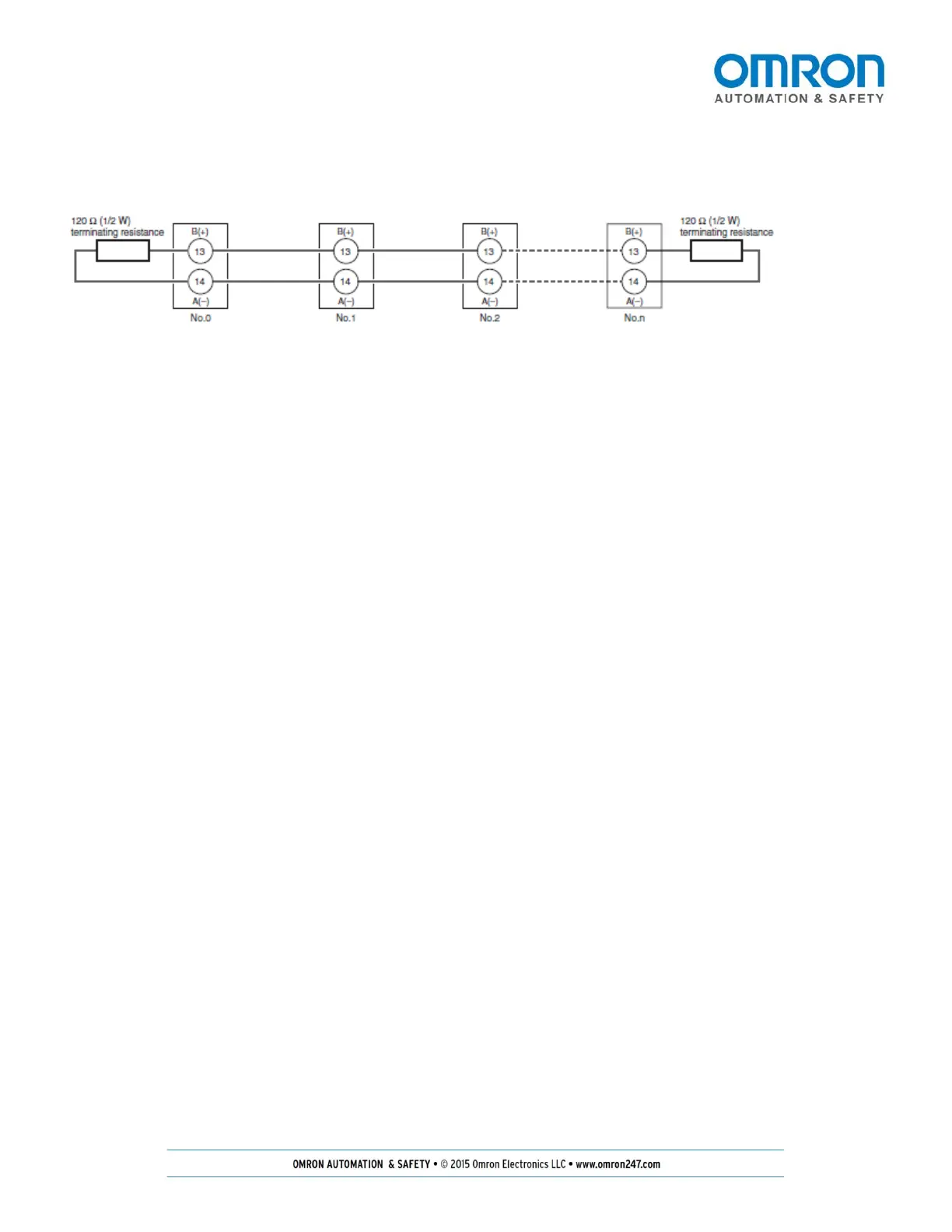

Figure 2: Communications Wiring
Also wire additional inputs and outputs as needed for the application.
