Component to Component Using CX-Thermo
Both of the units must have communication capabilities, which is the 003 or 004 option for E5CC models. Keep in mind
that copy function is only possible between the same model number and the same version of the temperature
controller. Additional products that were used include the following:
• K3SC interface converter,
• CS1W-CIF31 interface unit between USB serial communication and RS-232C,
• D-SUB 9 pin connector (needs a female connection), multi-conductor cable, or K32-23209 pre-made cable,
• CX-Thermo, and
• S8VK-G power supply.
Wiring
Below displays the wiring from the D-SUB 9 pin connector to the K3SC.

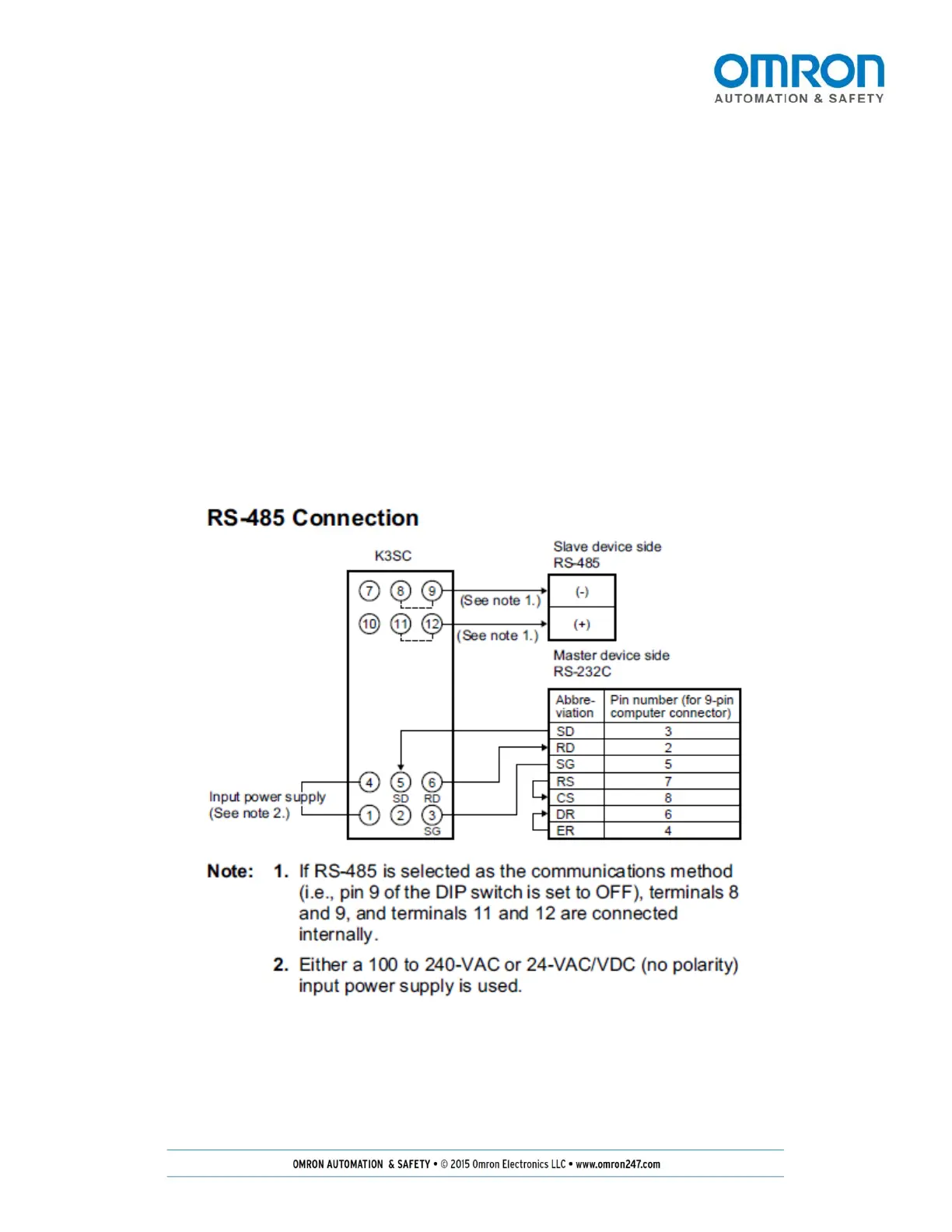

Figure 4: K3SC and 9 Pin Connector Connections

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
