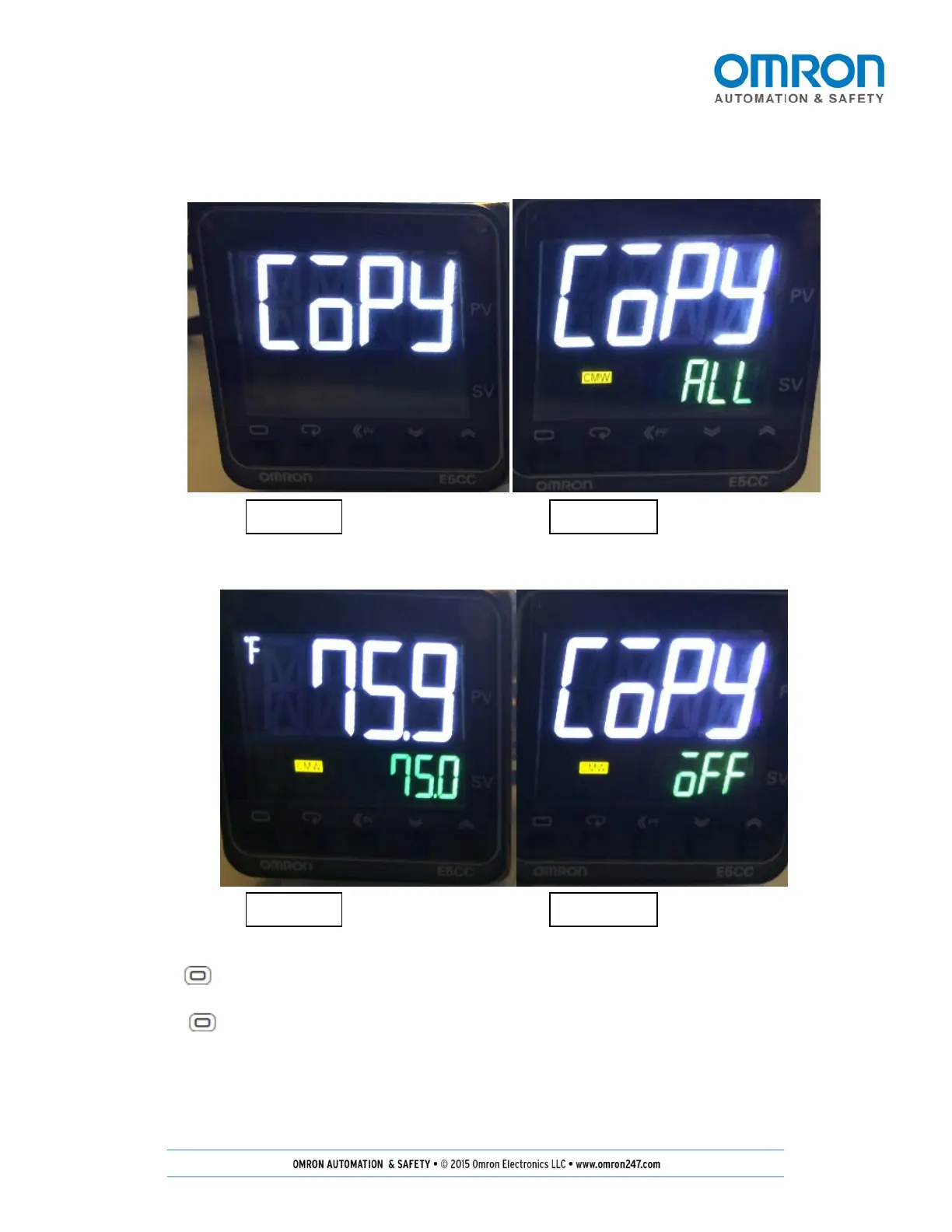

During the copying process below is what appears on the controllers. Once the copy process is started, it is not
possible to stop the copying operation.
After the copy is complete, this is what is shown on both units.
(6) Press the key for less than one second to move from the "communications setting level" to the
"initial setting level."
(7) Press the
key for at least three seconds to move from the "initial setting level" to the
"operation level."
Master Unit
Slave Unit
Master Unit
Slave Unit

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
